Instrumenter - Elma Instruments Kewmate 2000 pocket multi meter - 5706445250134
Varenummer: 2759924

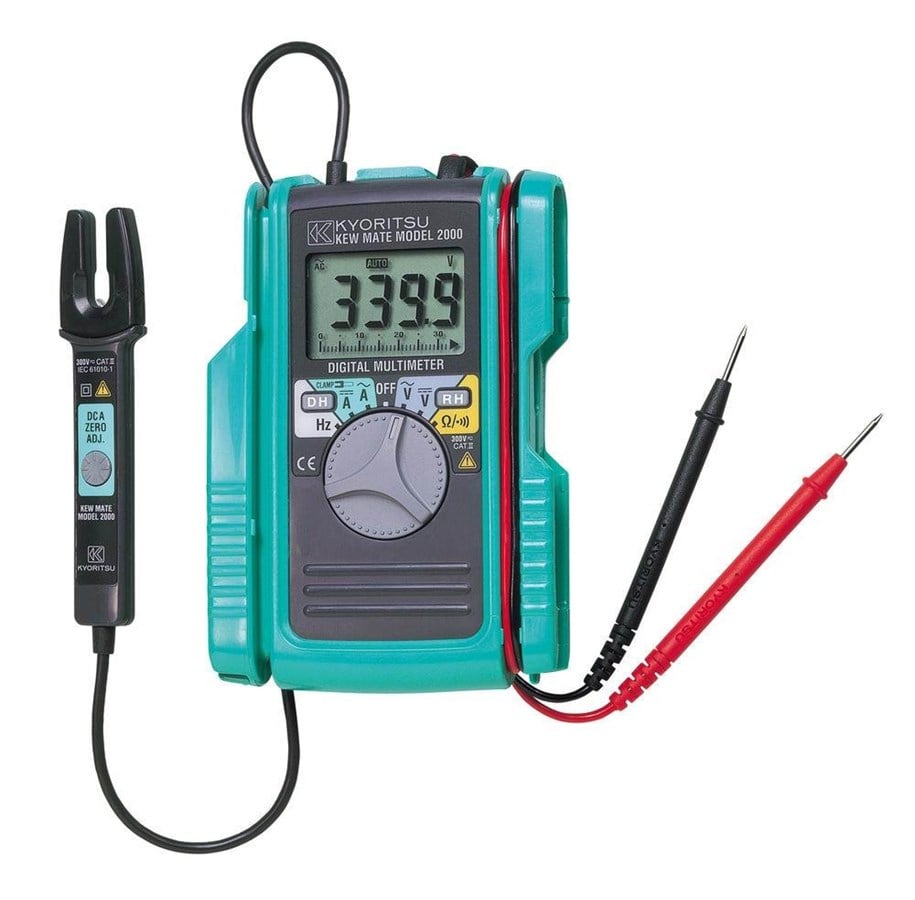

Elma Instruments Kewmate 2000 pocket multi meter

Kewmate 2000 is a multi meter koncept with an unique op clamp for directly current measuring on both AC og DC currents. The instrumentet has a big easy to read display with analog bargraph and it measures voltage, current, resistance, continuity, frequency, and is equipped with automatical range selection, data hold and auto shut off. Kewmate 2000 is in pocket size and is delivered with robust protection rubber cap where the test leads anf current clamp can be mounted and protected in. The instrumentet complies with IEC 61010-1 CAT III 300V, and is delivered with test leads, current clamp, rubber cap, batteries and manual. Technical data: Voltage DC: 0-340m-3,4-34-340-600 V Voltage AC: 0-3,4-34-340-600 V Accuracy: DC ± 1,5%+4D, AC ± 1,5%+5D Current AC/DC: 0,1-60,0A (with clamp) Accuracy: ± 2%+5D Resistance: 0-340-3,4k-34k-340k-3,4M-34M Frequency: 0-3,4k-34k-300kHz Clamp size: 6 mm Display: 3 3/4 digits Max display: 3399 Battery: 2x1,5V LR03 (incl.) Size: 126x87x21 mm Weight: 210 g

2 334,00 kr 1 867,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

Multimeter Kewmate 2000 Product Description: The Kewmate 2000 is a multimeter concept with an open current clamp for direct measurement of both AC and DC currents. The instrument has a large easy-to-read display with analog bargraph and measures voltage, current, resistance, continuity, frequency and features automatic range selection, data hold and auto power off. The instrument is pocket-sized and comes with a robust protective cover where the test leads and current clamp can be mounted and protected. The instrument complies with IEC 61010-1 CAT III 300V standards and comes complete with test leads, current clamp, rubber cover, batteries and Danish operating instructions.TECHNICAL DATADC Voltage: 0-340m-3.4-34-340-600 VAC Voltage: 0-3.4-34-340 -600 VAccuracy: DC ±1.5%+4D AC ±1.5%+5DCurrent AC/DC: 0.1 -60 A (with clamp)Accuracy: ±2%+5DResistance : 0 -340 -3 .4k -34k -340k –3 .4M –34MOhmFrequency : 0–3 .4k –34 k–300kHzClamp opening size :6 mmDisplay : 3¾ digitMax Display Value :3399Battery Type/Life(Alkaline) 2 x LR03 / Approximate life of battery (hours):100Dimensions(WxHxD) 126 x 87 x 21 mmWeight:210 g

Produsent
Varenummer
2759924
Model
5706445250134
Ean
5706445250134
