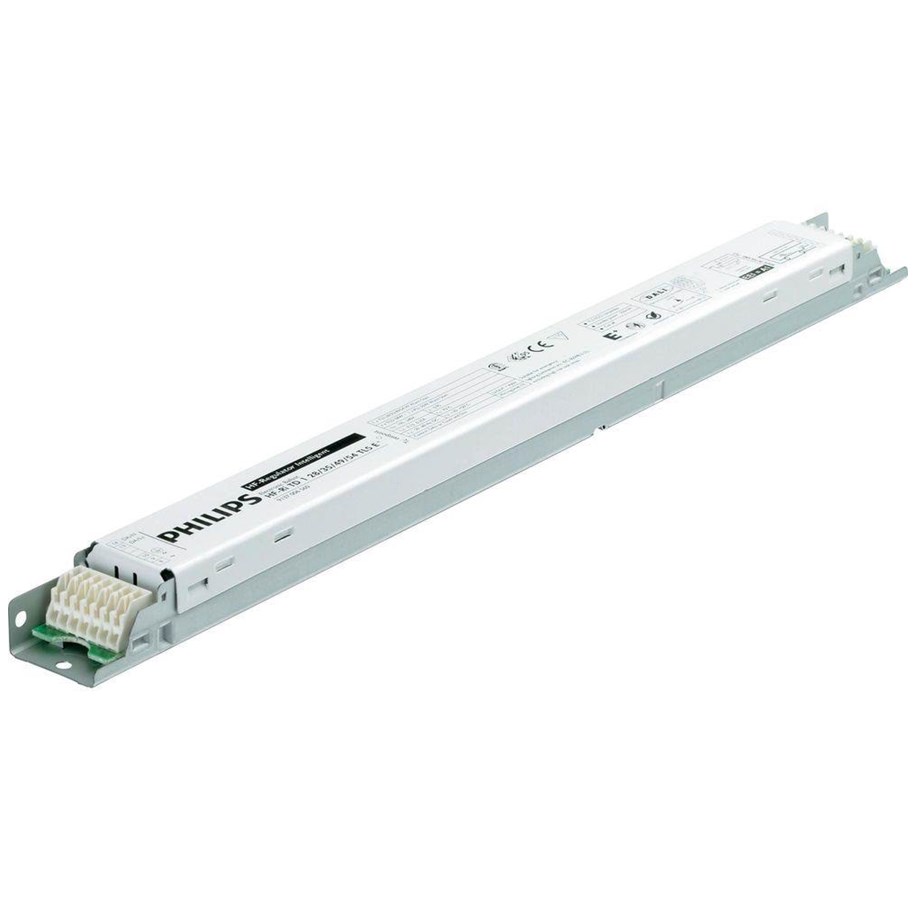

Philips Hf-ri td 1 28/35/49/54 tl5 e+ 195-240v
Dimming the next step in energy savingThis intelligent high-frequency electronic dimming ballast utilizes the DALI or Touch and Dim push-button protocol for fluorescent lamps. It meets A1BAT requirements, thereby pre-empting upcoming legislation. With a special command you can retrieve the system’s mains power consumption, and with another you can find out which lamp wattage is connected. Combined with controls, additional energy savings can be achieved. Product Benefits • Extremely low stand-by losses, controlled cut-off for dim levels above 80%, hybrid control dimming (current control at 100% and power control at 1%) – combined with MASTER TL5 Eco the most energy-efficient solution • HF operation improves light quality and lamp lifetime. • Compliant with European and Asian norms and suitable for emergency lighting systemsProduct Features • HF-R Intelligent recognizes what type of lamp (T5 HE, HO, ECO, TL-D, PL-L) is connected and drives it accordingly • Programmed start: flicker-free ignition < 1.0 second and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables the lamps to be switched on and off without reducing life • Smart power ensures constant light, independent of mains fluctuations and dimming from 1 to 100% • Stop circuit is activated within 5 seconds in the event of lamp failure (safety stop), and ballast resets automatically after lamp replacement • Programmable for intelligent functionalities via Philips MultiOne: Corridor mode, Emergency DC dim level, Burn-in timeEnvironment • The HF-R intelligent will recognize which lamp is connected and will drive it accordingly • Extremely low energy consumption in stand-by (0.25 W) • Optimized for MASTER TL5 Eco lamps • RoHS and ISO 14000-compliant • EEI = A1 BAT (Best available technology)Application • Indoor, general and task lighting applications in combination with lighting control systems (personal con
805,00 kr
644,00 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 4-7 dager til forsendelse
For å se dette innholdet må du akseptere cookies.
Endre informasjonskapselinnstillinger
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2027
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2026. Les betingelsene her.
Electronic Ballast HF-RI TD 1 28/35/49/54 TL5 E+ 195-240VProduct description: Dimming - the next step in energy saving. This intelligent high-frequency ballast with electronic dimming uses DALI or press and dim-push button protocols for fluorescent lamps. It meets A1BAT requirements and thus upcoming legal requirements. With a special command, you can get information about the system's power consumption, and with another command, you can find out what wattage the connected light sources have. Further energy savings can be achieved when used together with lighting control systems.Product features:• HF-R Intelligent recognizes the type of lamp (T5 HE, HO, ECO, TL-D or PL-L) that is connected and adjusts control accordingly.• Programmed start: ignition without flicker 1.0 second and operation without stripes or stroboscopic effects.• Preheating of lamp electrodes allows lamps to be turned on/off without reducing their lifespan.• Intelligent current ensures constant light output regardless of mains voltage fluctuations and dimming from 1 to 100%.• The stop circuit is activated within five seconds in case of lamp failure (safety stop), and when the lamp has been replaced, ballasts are automatically reset.• Can be programmed for intelligent functions via Philips MultiOne: corridor mode, dimming level during DC emergency operation time.Product benefits:• Extremely low standby loss controlled interruption at dimming levels above 80%, hybrid control (voltage control at 100% & current control at 1%), which combined with MASTER TL5 Eco provides the most energy-saving solution.• HF operation improves light quality & extends lamp life.• Complies with European & Asian standards; suitable for emergency lighting systemsEnvironmentally friendly: •HF-R Intelligent recognizes the type of lamp that is connected & adjusts controls accordingly.• Extremely low standby power consumption (0.25W).• O
Til produsentens hjemmeside
