B.E.G. Pd3-1c-fc

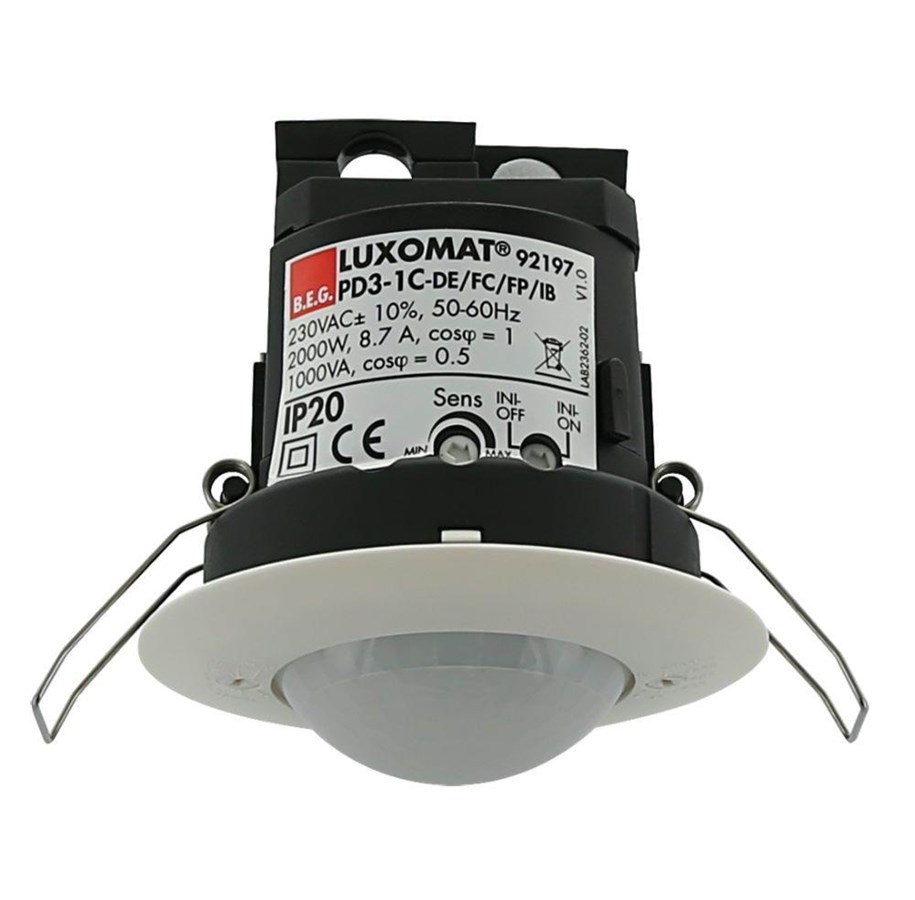

Product: PD3-1C-i (92197) Motion detector LUXOMAT® PD3-1C-i, recessed ceiling and wall. A channel for ignition of light. Thick relay for ignition of lamps with high consumption. In particular, an optical system for detecting the slightest movements. Series production impulse function (gong). Application examples: monitoring of smaller surfaces such. stairwells, private garages, lobbies, restrooms. Power supply voltage: 230V ~ ± 10%. Detection range: 360 °. Range (around) m: across Ø 10.00 m, head-Ø 6.00 m. Protection: IP44 / Class II / CE. Dimensions: Ø 83 x H 81 mm Ambient temperature: -25 ° C to + 50 ° C Housing: UV-resistant polycarbonate high-quality. Channel 1 (light control) Max Load: 2300 W, power factor measure = 1, 1150 VA, power factor measure = 0.5. Time settings: 30 sec. - 30 min. or pulse Brightness Value: 10-2000 Lux. Power consumption:> 0.5W
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
