Varenummer: 3478122

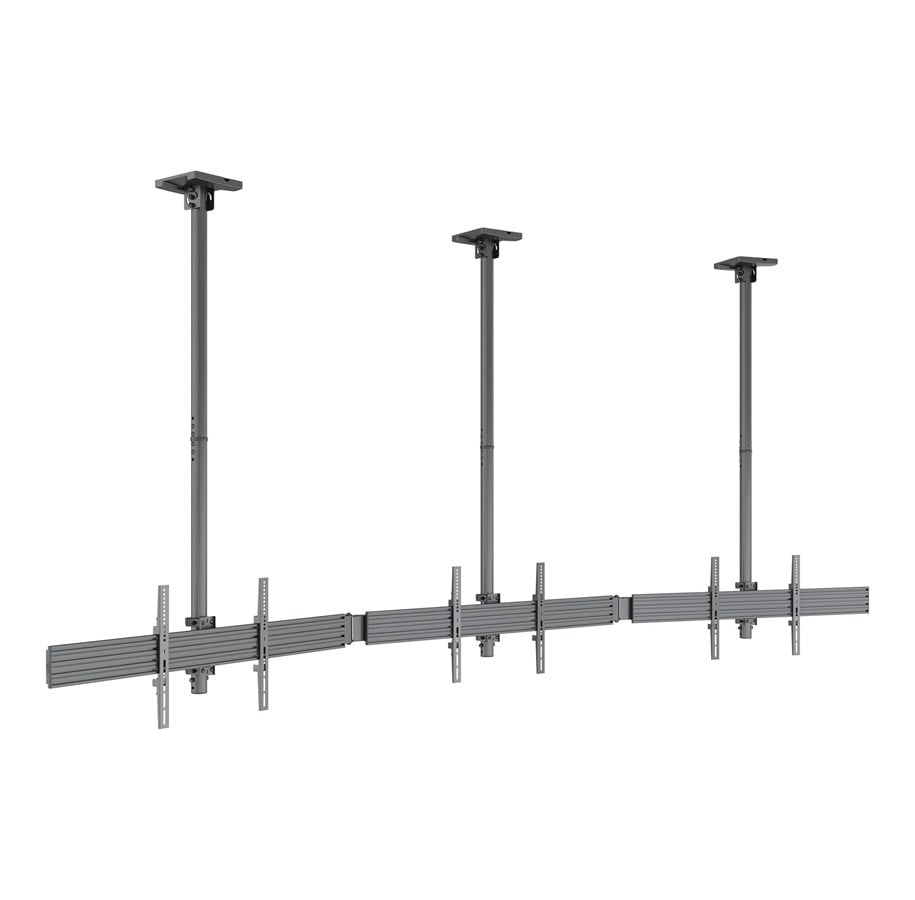

Multibrackets M Pro Series MBC3X1U - Max 90 kg - recommended for 65"

Monteringssett, enkeltside, for 3 LCD-skjermer, menu board, curved, aluminium, stål, svart, skjermstørrelse: 40"-65", takmonterbar

13 417,00 kr 10 733,60 kr eksl. mva
Rimeligste private frakt: 235,00 kr
Bestillingsvare, 12-14 dager til forsendelse

The M Menu Board Mount Pro MBC3X1U VESA 200 is the 3 screen side by side menu board system - ready to be installed.The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install and simple to maintain. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.With its modular construction installers can tailor the MBC3X1U with the clients need in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.The M Menuboard Mount Pro MBC3X1U creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allow all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menu board perfection.Designed with the Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments the Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. With included hardware kit a basic installation should not be a hassle.Multibrackets Pro Series Menuboards is simply ideal for any large screen digital signage application.

Produsent
Varenummer
3478122
Model
7340234814275
Ean
7340234814275
Til produsentens hjemmeside
Produktbeskrivelse
Multibrackets M Pro Series MBC3X1U monteringssett - enkeltside - for 3 LCD-skjermer - menytavle, buet - svart
Produkttype
Monteringssett (enkeltside) - takmonterbar
Dimensjoner (BxDxH)
34.9 cm x 20 cm x 33.8 cm
Tipping
-6° til 15°
Rotasjon
-4° til +4°
Svivel
360°
Justeringer
Høyde, helling, rotasjon, svivel
Vekt
32.5 kg
Anbefalt bruk
3 LCD-skjermer
Anbefalt skjermstørrelse
40"-65"
VESA-monteringsgrensesnitt
Inntil 600 x 400 mm, fra 100 x 100 mm
Maks lastevekt
90 kg
Materiale
Aluminium, stål
Farge
Svart
Pakkeinnhold
Monteringsmaskinvare

Generelt

Bredde
34.9 cm
Dybde
20 cm
Høyde
33.8 cm
Vekt
32.5 kg
Materiale
Aluminium, stål
Farge
Svart
Pakkeinnhold
Monteringsmaskinvare

AV-møbler

Type
Monteringssett
Design
Enkeltside
Anbefalt bruk
3 LCD-skjermer
Plassering/montering
Takmonterbar
VESA-monteringsgrensesnitt
Inntil 600 x 400 mm, fra 100 x 100 mm
Kabelordning
Integrert kabelordning
Anbefalt skjermstørrelse
40"-65"
Tipping
-6° til 15°
Rotasjon
-4° til +4°
Svivel
360°
Justeringer
Høyde, helling, rotasjon, svivel
Maks lastevekt
90 kg
Montering nødvendig
Ja
Finish
Pulverbelagt og anodisk oksidering
Detaljer
Portrettorientasjon, landskapsorientasjon

Størrelses- og vektdetaljer

Fraktdimensjoner (VxDxH) / Vekt
103 cm x 36 cm x 18 cm / 34.5 kg
Tilpassede standarder
TUV
