Varenummer: 3497793

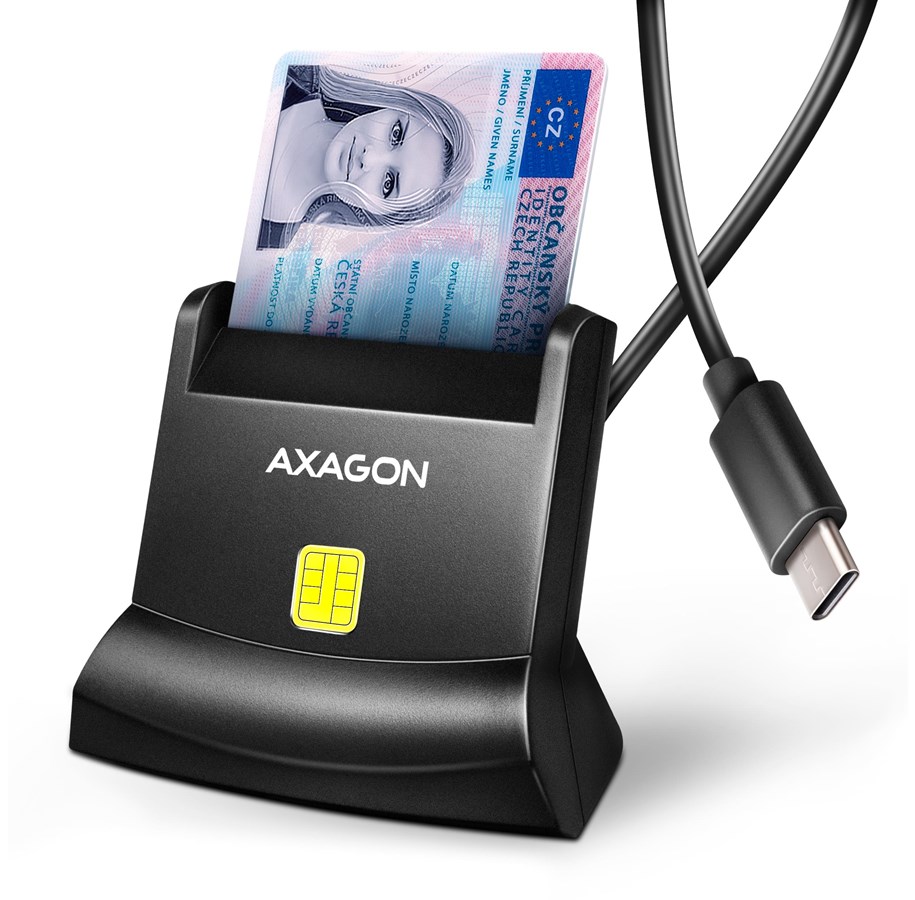

AXAGON CRE-SM4NC smartkortleser
Smartkortleser AXAGON CRE-SM4NC StandReader kombinerer et USB 480 Mbps USB-C-grensesnitt, Plug & Play-støtte og kompatibilitet med kontaktbaserte Smart Cards for datamaskiner, telefoner og nettbrett.
Denne universelle Smart Card- og ID-kortleseren for skrivebord er utviklet for bruk med USB-C-enheter, med en vendbar kontakt og støtte for vanlige operativsystemer og de fleste nasjonale eID-applikasjoner.
- USB 2.0 Type-C-tilkobling med CCID-protokoll
- Støtter ISO 7816 kontaktbaserte Smart Cards
- Fungerer med ATM-, CAC-, ID-, IC- og SIS-kort
- Kompatibel med Windows, macOS, Linux og Android
- LED indikerer kortinnsetting og dataoverføring
- Strømforsynes via USB med strømsparingsmodus
Kompakt skrivebordsdesign, bred kortstøtte og Plug & Play-drift gjør den praktisk for daglig bruk av smartkort og elektronisk ID.
858,00 kr
686,40 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 3-5 dager til forsendelse
Universal desktop Smart Card / ID Card reader AXAGON CRE-SM4NC StandReader with USB 480 Mbps interface. It is especially suitable as an ID card reader for use with mobile phones and computers equipped with a USB-C port. The reversible USB-C connector simplifies use by eliminating the need to orient the connector correctly when plugging it into a smartphone, tablet, or notebook.
The Plug & Play function enables immediate operation without the need to install drivers. For further use with an inserted card, it is only necessary to install a suitable application. The reader is compatible with most national eID (electronic identity card) applications.
The card reader supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
The smart LED indicator lights up only briefly when activity changes and then switches off so as not to disturb the user. Compact design, high-quality workmanship, and a sufficiently long cable ensure easy and trouble-free use.
Input:
• USB 480 Mbps (USB 2.0), CCID protocol.
• Connection to a computer via USB 2.0 Type-C male connector.
Card reader:
• Slot supports ATM / CAC / ID / IC / SIS cards.
• Support for contact Smart Cards compliant with ISO 7816, Class A, B and C (5V, 3V and 1.8V).
• Support for ISO 7816 and EMV 4.1 (EMV 2000 Level 1) standards.
• Supported protocols: T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
• Support for PC/SC 2.0 Smart Card standard.
• Support for Microsoft Smart Card for Windows.
• Support for I2C cards SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608, AT88SC153, AT24C128, AT24C256, M14C16, M14C04.
• Compliant with Microsoft WHQL USB Smart Card Reader requirements.
Other features:
• Compatible with Microsoft USB-CCID driver.
• Plug and Play support.
• Power-saving mode support with automatic transition to power-saving mode.
• USB bus-powered.
• LED indicating card insertion (steady light) and data transfer (flashing).
• Non-slip pad to reduce unwanted movement on the desk.
• Dimensions: 77 × 35 × 70 mm, cable length 1.2 m.
• Weight: 74 g.
Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, Linux, and Android.
• To work with a Smart Card, it is necessary to install a suitable application on the connected device.
*Note: The reader supports only contact cards with visible contacts on the surface. Contactless cards, known as RFID, cannot be used in the reader.
Package contains:
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
The Plug & Play function enables immediate operation without the need to install drivers. For further use with an inserted card, it is only necessary to install a suitable application. The reader is compatible with most national eID (electronic identity card) applications.
The card reader supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
The smart LED indicator lights up only briefly when activity changes and then switches off so as not to disturb the user. Compact design, high-quality workmanship, and a sufficiently long cable ensure easy and trouble-free use.
Input:
• USB 480 Mbps (USB 2.0), CCID protocol.
• Connection to a computer via USB 2.0 Type-C male connector.
Card reader:
• Slot supports ATM / CAC / ID / IC / SIS cards.
• Support for contact Smart Cards compliant with ISO 7816, Class A, B and C (5V, 3V and 1.8V).
• Support for ISO 7816 and EMV 4.1 (EMV 2000 Level 1) standards.
• Supported protocols: T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
• Support for PC/SC 2.0 Smart Card standard.
• Support for Microsoft Smart Card for Windows.
• Support for I2C cards SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608, AT88SC153, AT24C128, AT24C256, M14C16, M14C04.
• Compliant with Microsoft WHQL USB Smart Card Reader requirements.
Other features:
• Compatible with Microsoft USB-CCID driver.
• Plug and Play support.
• Power-saving mode support with automatic transition to power-saving mode.
• USB bus-powered.
• LED indicating card insertion (steady light) and data transfer (flashing).
• Non-slip pad to reduce unwanted movement on the desk.
• Dimensions: 77 × 35 × 70 mm, cable length 1.2 m.
• Weight: 74 g.
Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, Linux, and Android.
• To work with a Smart Card, it is necessary to install a suitable application on the connected device.
*Note: The reader supports only contact cards with visible contacts on the surface. Contactless cards, known as RFID, cannot be used in the reader.
Package contains:
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
Produsent
Varenummer
3497793
Model
CRE-SM4NC
Ean
8595247909947
Til produsentens hjemmeside
Produkttype
Universell smartkortleser
Bruksområde
Statsarbeid, Bank og betalinger, Helsevesen
SIM-kortstøtte
Nei
Plugg inn og spill
Ja
Lett å bruke
Ja
Kompatible produkter
supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
Støttede plasseringer/plasseringer som kan benyttes
Innendørs
Produktfarge
Svart
Kroppsmateriale
Plast
LED-indikatorer
Ja
Kabellengde
1,2 m
Opprinnelsesland
China
Videoopptaksgrensesnitt
USB 2.0
Near Field Communication (NFC)
Nei
Bluetooth
Nei
Strømkilde
USB
Garantiperiode
3 år
Samsvarssertifikat
CE, RoHS, REACH
Bruksanvisning
Ja
Pakkeinnhold
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
Støttede Windows operativsystemer
Ja
Støttede Linux operativsystemer
Ja
Kompatibel med Mac
Ja
Støttede Mac operativsystemer
Ja
Andre støttede operativsystemer
Ja
Bredde
77 mm
Høyde
35 mm
Dybde
70 mm
Vekt
74 g
Sertifisering
CE, RoHS, Reach
Smartkort inkludert
Nei
Guide for hurtiginstallering
Ja
Pakkebredde
125 mm
Pakkedybde
100 mm
Pakkehøyde
40 mm
Pakkevekt
113 g
Pakketype
Boks
Egenskaper
Produkttype
Universell smartkortleser
Bruksområde
Statsarbeid, Bank og betalinger, Helsevesen
SIM-kortstøtte
Nei
Plugg inn og spill
Ja
Lett å bruke
Ja
Kompatible produkter
supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
Design
Støttede plasseringer/plasseringer som kan benyttes
Innendørs
Produktfarge
Svart
Kroppsmateriale
Plast
LED-indikatorer
Ja
Kabellengde
1,2 m
Opprinnelsesland
China
Tilkoblingsevne
Videoopptaksgrensesnitt
USB 2.0
Near Field Communication (NFC)
Nei
Bluetooth
Nei
Energihåndtering
Strømkilde
USB
Tekniske detaljer
Garantiperiode
3 år
Samsvarssertifikat
CE, RoHS, REACH
Emballasjeinnhold
Bruksanvisning
Ja
Pakkeinnhold
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
Systemkrav
Støttede Windows operativsystemer
Ja
Støttede Linux operativsystemer
Ja
Kompatibel med Mac
Ja
Støttede Mac operativsystemer
Ja
Andre støttede operativsystemer
Ja
Vekt og dimensjoner
Bredde
77 mm
Høyde
35 mm
Dybde
70 mm
Vekt
74 g
Bærekraft
Sertifisering
CE, RoHS, Reach
Datainnpakking
Smartkort inkludert
Nei
Guide for hurtiginstallering
Ja
Pakkebredde
125 mm
Pakkedybde
100 mm
Pakkehøyde
40 mm
Pakkevekt
113 g
Pakketype
Boks
