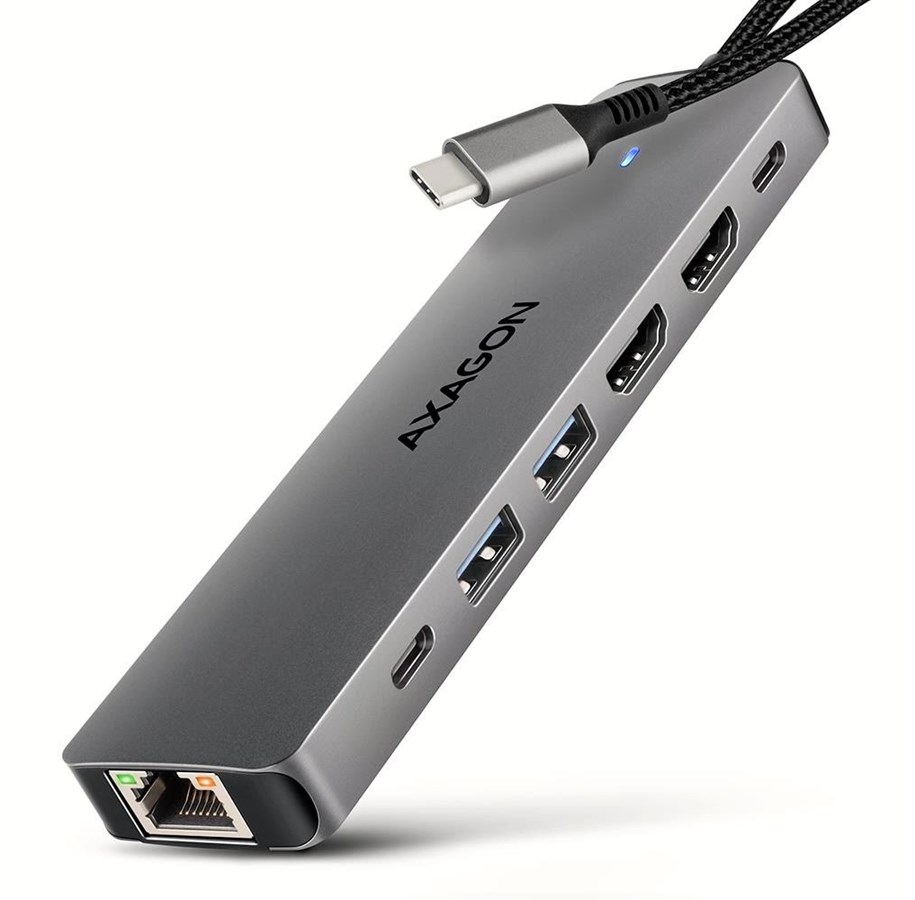

AXAGON Dual 4K Display USB-C 5 Gbps 7-in-1 HUB USB-hub - USB 3.2 - 7 porter - Grå

The multi-port USB-C 5 Gbit/s AXAGON HMC-7HX2 DUAL 4K DISPLAY 7‑in‑1 hub expands your laptop, computer, or phone with seven ports. Connect your laptop to the hub via the 15 cm long USB-C cable. You immediately have a connection for two 4K monitors, three USB devices, and an RJ-45 connector for a Gigabit Ethernet network. You also get the possibility to supply your laptop using Power Delivery technology at the same time. The port replicator provides a simple and compact 7‑in‑1 docking station for modern laptops.

The USB hub offers three USB 5 Gbit/s outputs, two with standard USB-A and a third with a USB-C data connector. Transfer rates are up to 5 Gbit/s thanks to the USB 3.2 Gen 1 interface. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5 A / 5 V. From the hub, you can easily charge e.g., Android smartphones, Apple iPhones, Apple iPads, etc.

Another USB-C connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100 W of power. Connect a suitable USB-C Power Delivery charger to the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port.

Two HDMI outputs allow you to connect external monitors, TVs, or projectors with up to 4K / 60 Hz Ultra HD resolution, even when two monitors are connected simultaneously. Other popular resolutions are also supported, such as 2K / 120 Hz Quad HD or 1080p / 240 Hz Full HD, with multi-channel audio transmission. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts without limitations.

The Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector, or another network card.

The compact aluminium body not only looks great but also provides mechanical durability and passive cooling. The USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running.

For the hub to function properly, your laptop's USB-C port must support video output (DisplayPort Alternate Mode or Thunderbolt 3, 4 and above) and Power Delivery.

The hub can easily connect to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV, or projector to the phone.

Input (computer, tablet, or phone connection):

• USB 5 Gbit/s (USB 3.2 Gen 1 / USB 3.0), USB-C male connector
• Compatible with USB 10 Gbit/s, USB4, Thunderbolt 3/4/5

Input (power supply):

• USB Power Delivery 3.0 – 100 W port, USB-C female connector
• Charging of the notebook from the power adapter via USB-C hub
• PD power must be supported by both the laptop (tablet, phone) and the wall charger

USB outputs:

• 2× USB 5 Gbit/s ports, USB-A female connector
• 1× USB 5 Gbit/s port, USB-C female connector
• The hub can handle the connection of several external drives at the same time
• Charging of mobile devices (including iPad) with a current of up to 1.5 A / 5 V from the hub's USB-A and USB-C ports

Video output:

• 2× HDMI A ports, HDMI A female connector
• Maximum supported resolution:
  • 1 monitor – up to 4K / 60 Hz Ultra HD, 2K / 144 Hz Quad HD, 1080p / 240 Hz Full HD
  • 2 monitors – up to 4K / 60 Hz Ultra HD, 2K / 144 Hz Quad HD, 1080p / 240 Hz Full HD
• Video features:
  • For Apple devices running macOS, the maximum refresh rate is usually limited to 60 Hz
  • To achieve maximum resolution and frequency values on video outputs, the hub must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version ≥ 1.4 or a USB-C port supporting at least Thunderbolt 3
  • Updated OS and graphics drivers required
  • HDR support (High dynamic range, 10-bit support)
  • HPD (Hot-Plug-Detect) support
  • TMDS (Transition Minimized Differential Signalling) support
  • Full support for HDCP 1.4 and 2.2
  • 8-channel LPCM audio, compressed audio (AC-3, DTS), and HBR audio format support
  • Supports sample rates up to 192 kHz and up to 24-bit audio (depends on source and destination device)

RJ-45 output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection
• Supported transmission rates: 10 / 100 / 1000 Mbit/s
• Supported standards: IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
• 10 / 100 / 1000 Mbit/s auto-detection

Other features:

• Hot Plug support
• Full Plug and Play support
• Standby mode support
• Power supply via USB bus or PD charger (not included)
• High-quality shielded cable ensures fast communication speed and minimal interference
• Dimensions: 13 × 134 × 34 mm (H × W × D)
• Weight: 59 g (including cable)
• USB-C cable 15 cm long for connecting the hub to a laptop

Supported operating systems:

• Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS, Android
• Compatibility depends on the operating system and device manufacturer support
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from the device (notebook, tablet, phone)
• Graphics card drivers may affect correct operation; latest drivers recommended

Package contains:

• USB-C hub with fixed 15 cm long cable
• Multilingual manual (CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA)
• Packed in a cardboard box with a hanging hole
