Varenummer: 3224871

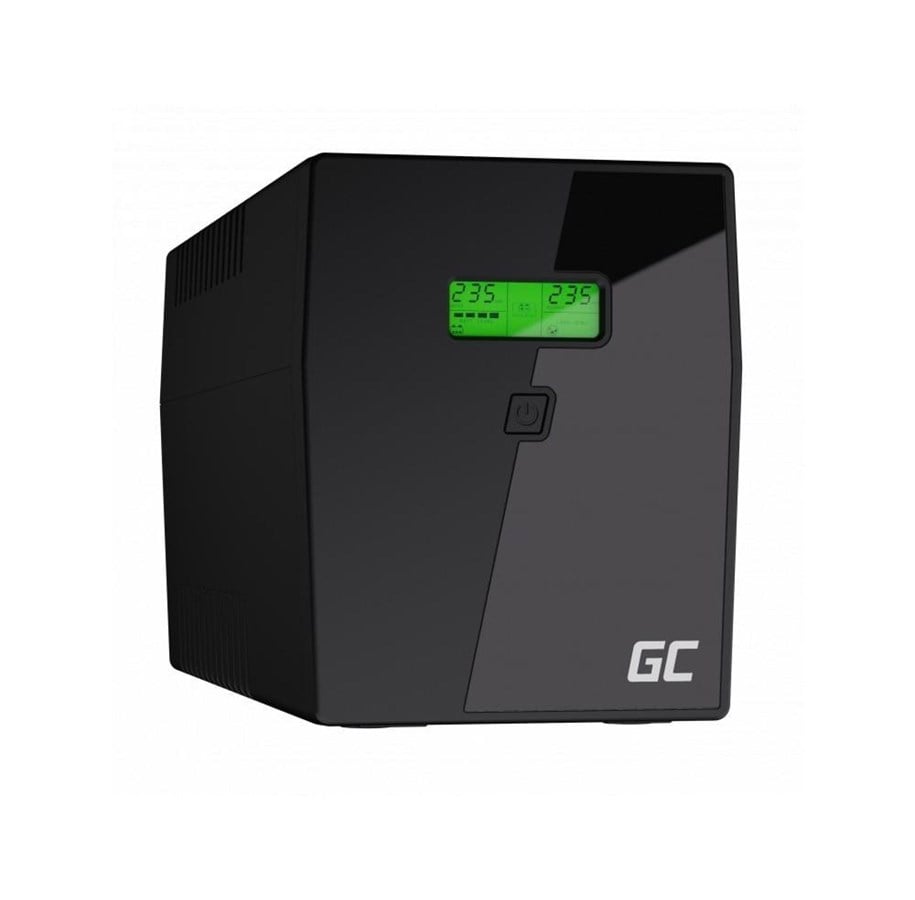

Green Cell PowerProof UPS04 - 1500VA/900W | Line-Interactive | 24V 2x9Ah
Green Cell GC PowerProof UPS04 line-interaktiv UPS med simulert sinusbølgeutgang på batteri, en LCD-skjerm og boost/buck AVR spenningsstabilisering. En enhet med dobbelt batteri og høyere kapasitet, egnet for PC-er, NAS og små serveroppsett.
- Topologi: Line-interaktiv
- Kapasitet: 1500VA / 900W
- Nominell inngangsspenning: 110/120 eller 220/230/240 Vac
- Driftsspenningområde: 81–145 Vac / 162–290 Vac
- Driftsfrekvens: 50/60Hz (automatisk registrering)
- Utgangsbølgeform (batterimodus): Simulert sinusbølge
- AC-spenningsregulering (batterimodus): ±10%
- Overføringstid: Typisk 2–6ms, maks 10ms
- Batteri: 24Vdc, 2x 12V/9Ah
- Ladetid: 6–8 timer til 90% kapasitet
- Skjerm: LCD (AC-/batterimodus, belastningsnivå, batterinivå, inngangs-/utgangsspenning, overbelastning, feil, lavt batteri)
- Beskyttelse: Kortslutning, overbelastning, overlading, overutlading
- Kommunikasjon: USB eller RS232 (Windows, Linux, Unix, macOS)
- Uttak: 2x Schuko, 2x IEC C13
- Støynivå: Mindre enn 55dB
- Dimensjoner (D x B x H): 380 x 158 x 198 mm
- Vekt: Ca. 10.1 kg
- Driftsfuktighet: 0–90% RH @ 0–40°C, ikke-kondenserende
- Sertifiseringer: IEC/EN62040-1, IEC/EN60950-1, IEC/EN62040-2, IEC/EN62040-3, IEC 61000-4-2/3/4/5/6/8
En innebygd kjølevifte støtter vedvarende belastning ved denne høyere kapasiteten, mens to 12V/9Ah-batterier gir utvidet backup-driftstid. IEC C13-uttak sammen med Schuko-kontakter passer til server- og nettverksutstyr.
1 299,00 kr
1 039,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 4-6 dager til forsendelse (Forventet på eget lager 27.08.2026)
What is a UPS?
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
What is it used for?
An uninterruptible power supply unit (UPS) is a device whose purpose is to provide power when our apartment or workplace runs out of electricity. Sudden power cut can cause loss of important data, but also damage to electronic equipment. Thanks to an emergency power supply you will be given time to save the effects of your work and safely switch off the device. UPS can take over the role of a mains socket and provide backup power even in the event of large and long-lasting voltage fluctuations. When there is current in the socket, the UPS accumulates energy in the battery and thus provides the devices connected with appropriate surge protection.
With attention to detail
When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Essential parameters
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
Produsent
Varenummer
3224871
Model
UPS04
Ean
5902701419646
Til produsentens hjemmeside
Produktbeskrivelse
Green Cell UPS Micropower 1500VA - UPS - 900 watt - 1500 VA
Enhetstype
UPS - ekstern
Vekt
11.1 kg
Inngangsspenning
AC 220/230/240 V
Utgangsspenning
AC 230 V
Effektkapasitet
900 watt / 1500 VA
Utgangskontakter
4 x power CEE 7/7
Batteri
- 9 Ah
Antall batterier
2
Nettverkstilknytning
USB, Ethernet
Dimensjoner (BxDxH)
15.8 cm x 38 cm x 19.8 cm
Generelt
Enhetstype
UPS - ekstern
Strømenhet
UPS Teknologi
Interaktivlinje
Inngangsspenning
AC 220/230/240 V
Frekvens medfølger
50/60 Hz
Frekvens nødvendig
50/60 Hz
Detaljer om strømutgangskoblinger
4 x power CEE 7/7
Utgangsspenning
AC 230 V 50/60 Hz
Effektkapasitet
900 watt / 1500 VA
Dataline Surge Protection
Nettverk - RJ-45 - 1 innlinje / 1 utlinje
Utgangsbølgeform
Sinusbølge
Transientundertrykking
Ja
Batteri
Kvantitet
2
Spenningstilførsel
12 V
Kapasitet
9 Ah
Overføringstid
6 ms
Nettverkstilknytning
Fjernstyringsgrensesnitt
USB, Ethernet
Ekspansjon / Tilkoplinger
Grensesnitt
1 x forvaltning (USB) - 4-pins USB-type B
Diverse
Egenskaper
Automatisk spenningsregulering (AVR)
Størrelser og vekt
Bredde
15.8 cm
Dybde
38 cm
Høyde
19.8 cm
Vekt
11.1 kg
