Varenummer: 2004352

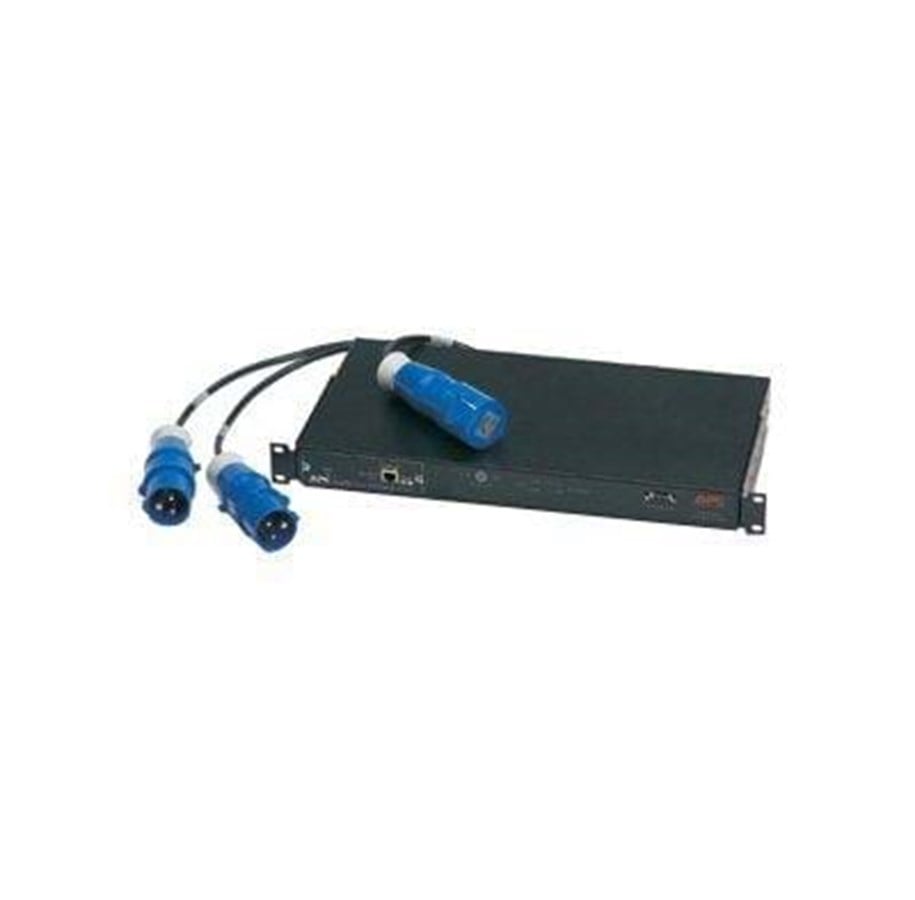

APC Automatic Transfer Switch/230V
Redundant switch ( kan monteres i rack ), AC 230 V, Ethernet 10/100, 1 Utgangskobling(er)
12 905,00 kr
10 324,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 14-16 dager til forsendelse
APC's Rack Automatic Transfer Switch (ATS), also known as the Redundant Switch, is a high availability switch that has two input power cords, one for each AC line, which provide redundant power to connected equipment. The Rack ATS is designed to supply power to the connected load from a primary AC source. If that primary source becomes unavailable for whatever reason, the Rack ATS will automatically begin sourcing power from the secondary source. The transfer time from one source to the other is seamless to the connected equipment. The Networked units have built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
Produsent
Varenummer
2004352
Model
AP7722
Ean
731304299875
Til produsentens hjemmeside
Produktfarge
Svart
Kabellengde
2 m
Nominell innputspenning
230 V
Utgangsstrøm
230 V
Driftstemperatur (T-T)
0 - 45 °C
Oppbevaringstemperaturomåde (Celsius)
-15 - 65 °C
Relativ luftfuktighet under drift (H-H)
0 - 95%
Lagringsrelativ fuktighet
0 - 95%
Bredde
431,8 mm
Dybde
228,6 mm
Høyde
44,5 mm
Vekt
4,64 kg
I/O-porter
Output Connections -(1)IEC 309
Input Connection Type - IEC 309
Design
Produktfarge
Svart
Egenskaper
Kabellengde
2 m
Energihåndtering
Nominell innputspenning
230 V
Utgangsstrøm
230 V
Miljømessige forhold
Driftstemperatur (T-T)
0 - 45 °C
Oppbevaringstemperaturomåde (Celsius)
-15 - 65 °C
Relativ luftfuktighet under drift (H-H)
0 - 95%
Lagringsrelativ fuktighet
0 - 95%
Vekt og dimensjoner
Bredde
431,8 mm
Dybde
228,6 mm
Høyde
44,5 mm
Vekt
4,64 kg
Tilkoblingsevne
I/O-porter
Output Connections -(1)IEC 309
Input Connection Type - IEC 309
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
