Trykkrør & Beslag - Viega Sanpress bend 90° 35 gunmetal/glossy 111953 - 111953
Varenummer: 2904565

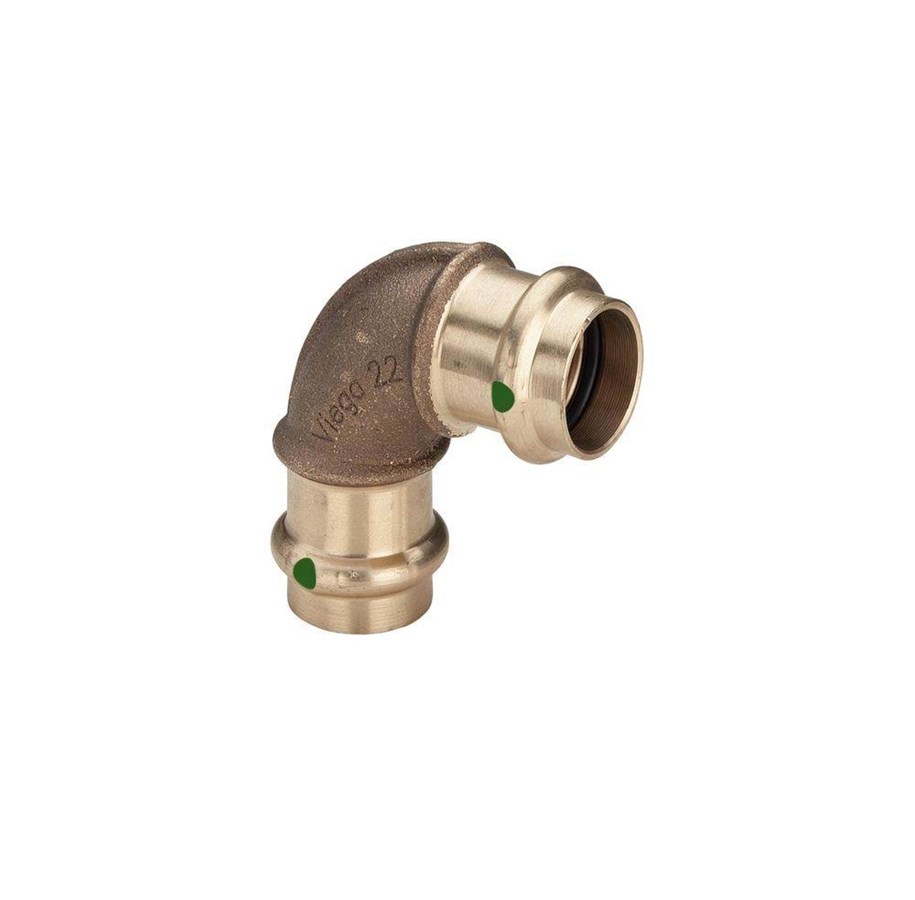

Viega Sanpress bend 90° 35 gunmetal/glossy 111953

Press connector system with press connectors made of gunmetal, pipes made of stainless steel material Nos. 1.4401 and 1.4521 in acc. with DINEN 10088, DIN EN 10312, DVGW worksheet GW 541, system certification for connectors and pipes in acc. with DVGW worksheet W 534, for drinking water installations in acc. with DIN 1988. For dimensionally stable concealed and pre-wall installations of manifold and riser pipes in Viega component assembly.Press connectorsAll sizes with SC-Contur – connections, which remain unpressed become visible when the system is filled. The SC-Contur is certified and fulfils the requirements of DVGW worksheet W 534, point 12.14, connectors with forced leakage.During leakage tests with water, Viega guarantees the identification of unpressed connections in the pressure range 0.1 MPa–0.65 MPa, in the case of a dry leakage test with compressed air or noble gases from 22 hPa–0.3 MPa.MarkingGreen dot on the press connectionSealing elementsEPDM, black (ethylene

562,00 kr 449,60 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-5 dager til forsendelse

Viega Sanpress bend 90° 35 Red brass/blank, 111953 Product description: Press fitting system with press fittings made of red brass, pipes made of stainless steel material no. 1.4401 and 1.4521 according to DIN EN 10088, DIN EN 10312, DVGW work sheet GW541, system approval for fittings and pipes according to DVGW work sheet W534 for drinking water installations according to DIN1988. For stable installation of various plumbing installations in Viega's overall system.Press fittingsAll sizes have an SC-Contur - fittings that have not been pressed during installation become clearly visible when the system is filled. The SC-Contur is certified and meets the requirements of DVGW work sheet W534, section12.14 guaranteed leak-proof if not pressed.During water tightness tests Viega can detect unpressed fittings in the pressure range from0.1 MPa–0.65 MPa,, during dry tightness testing with compressed air or inert gases from22 hPa–0.3 MPa.Markings•Green dot on press connectionGasketsEPDM black (ethylene-propylene-diene rubber), up to110°C not resistant against hydrocarbon solvents,chlorinated hydrocarbons, turpentine,benzenePipesStainless steel pipes laser welded and made of corrosion-resistant stainless steel•Material no.:1 .4401 (AISI316L) (X5CrNiMo17-12-2),with2 .3% molybdenum for better durability,yellow plugs•Material no.:14521(AISI444)(X2CrMoTi18-2),with PRE value24 .l ,green plugsDimensions/materialStandard sizes: d12 ,15 ,18 ,22 ,28 ,35 ,42and54madeofredbrassXL sizes: d76 .1 ,88 .9 and 108.0 made of red brassPress fitting with threaded connection of red brassAreas of applicationDrinking waterRainwaterCompressed air systemsAgricultureIndustrySpecial applicationsShipbuildingIn case of use for other than the described areas of application, contact Viega Service Center to coordinate materials.Operating conditionsDrinking water installations•Drinking water without restrictions according to TrinkwV•Operating temperature max.85°C•Operating pressure max.1 .6 MPa

Produsent
Varenummer
2904565
Model
111953
Ean
4015211111953

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
