Varenummer: 3352887

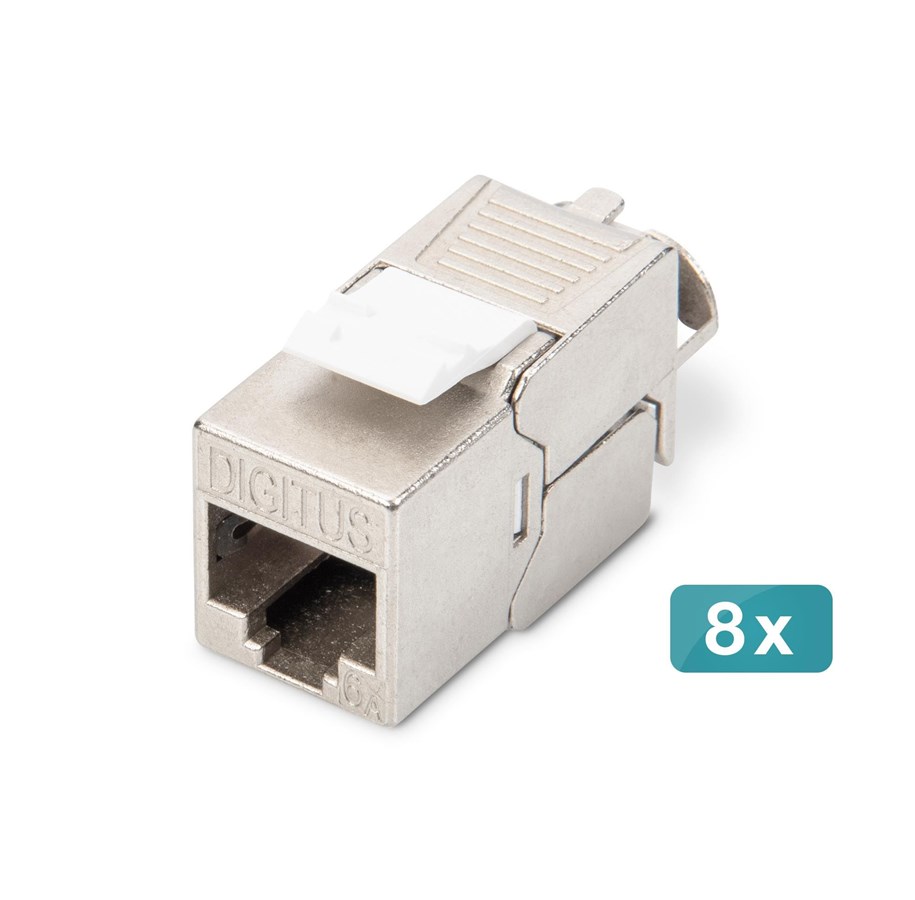

DIGITUS CAT 6A Keystone Module (8-Pack)

Modulinnlegg, keystone, toolless, CAT 6a, skjermet, RJ-45 (en pakke 8)

333,00 kr 266,40 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 4-6 dager til forsendelse

The DIGITUS DN-93615-8 modular insert offers efficient connectivity solutions with its shielded technology and compliance to multiple standards including IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. The keystone type design combined with toolless features facilitates quick installations, ideal for both professional and DIY setups. Supporting Power over Ethernet (PoE) and PoE+ capabilities, this modular insert enables simplified networking by powering devices through Ethernet cabling, eliminating the need for separate power supplies. Constructed from durable nickel plated zinc die-cast material, this keystone module is designed to withstand various environmental conditions, with operating temperatures ranging from -20 °C to 70 °C. Its phosphor bronze contacts ensure reliable connections, while the dust cover protects against contaminants. Supporting both T568A and T568B wiring schemes, this insert is compatible with 22 - 26 AWG stranded wire, making it a versatile choice for any network installation.

Produsent
Varenummer
3352887
Model
DN-93615-8
Ean
4016032490579
Til produsentens hjemmeside
Produktbeskrivelse
DIGITUS modulinnlegg - keystone, toolless
Produkttype
Modulinnlegg - CAT 6a - RJ-45 - keystone, toolless
Pakket mengde
8 (spesifikasjonene er for enkeltartikler)
Pakkeinnhold
Strenggrep
Dimensjoner (BxDxH)
1.45 cm x 3.45 cm x 2.1 cm
Vekt
19.5 g
Produktmateriale
Forkrommet sinkdøtt
Antall porter
1 port
Koplingsskjema
T568A/B
Tilpassede standarder
GHMT, 4PPoE, EIA/TIA 568A, EIA/TIA 568B, EN 50173-1, ISO/IEC 11801 Ed. 3, IEC 60603-7-51, ANSI/TIA-568-C.2 / IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt

Generelt

Pakket mengde
8 (spesifikasjonene er for enkeltartikler)
Produkttype
Modulinnlegg - CAT 6a - keystone, toolless
Pakkeinnhold
Strenggrep
Produktmateriale
Forkrommet sinkdøtt
Bredde
1.45 cm
Dybde
3.45 cm
Høyde
2.1 cm
Vekt
19.5 g

Kabler og ledninger

Antall porter
1 port
Termineringstype
LSA (Krone)
Teknologi
Skjermet
Koplingsskjema
T568A/B
Funksjoner
Keystone type, uten verktøy, PoE-støtte, PoE+ støtte, phosphor bronze contacts, for 22 - 26 AWG stranded wire
Tilpassede standarder
IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt
Kopling medfølger
1 x RJ-45 hunn

Diverse

Egenskaper
Støvdeksel
Tilpassede standarder
GHMT, 4PPoE, EIA/TIA 568A, EIA/TIA 568B, EN 50173-1, ISO/IEC 11801 Ed. 3, IEC 60603-7-51, ANSI/TIA-568-C.2

Miljøparametere

Min. driftstemperatur
-20 °C
Maks. Driftstemperatur
70 °C

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
