Varenummer: 2637909

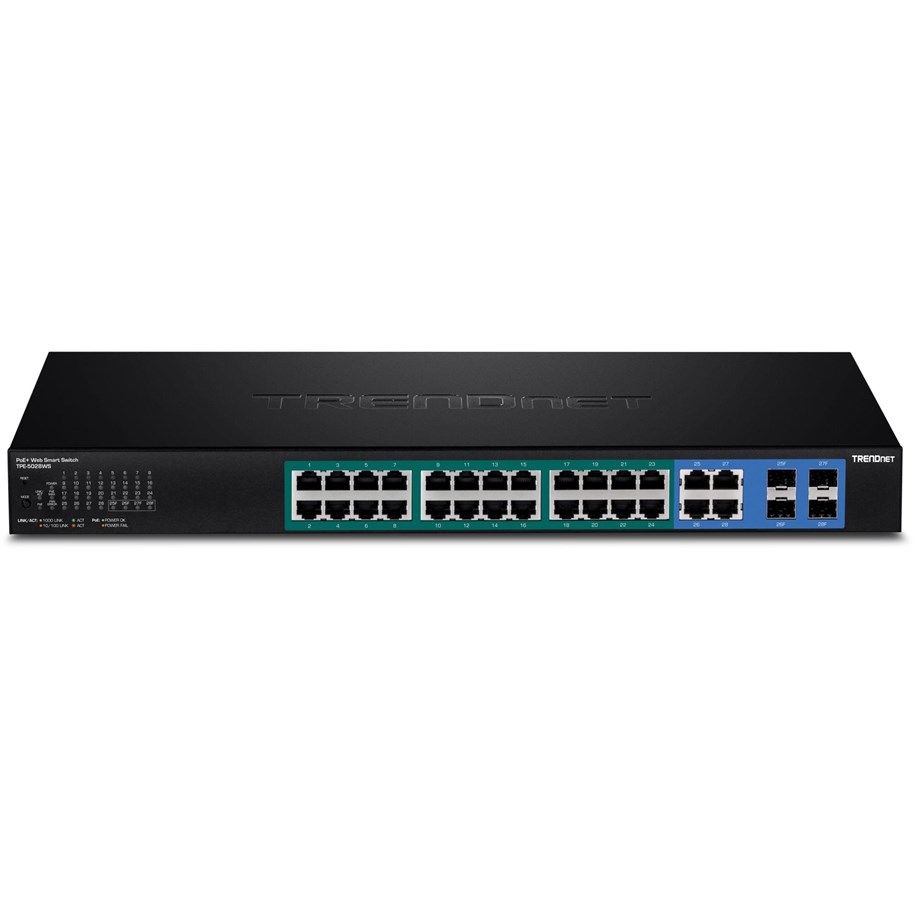

TRENDnet TPE-5028WS 28-Port Gigabit Web Smart PoE+
Switch, smart, 24 x 10/100/1000 (PoE+) + 4 x kombo-Gigabit SFP, stasjonær, rackmonterbar, PoE+ (370 W), AC 100, 240 V, TAA-samsvar
5 023,00 kr
4 018,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.
TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.
Produsent
Varenummer
2637909
Model
TPE-5028WS
Ean
710931161182
Til produsentens hjemmeside
Svitsjtype
Håndtert
Quality of Service (QoS) støtte
Ja
Webbasert administrasjon
Ja
MIB-støtte
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Antall Basic switching RJ-45 Ethernet-ports
24
Basic switching RJ-45 Ethernet ports-type
Gigabit Ethernet (10/100/1000)
Antall Combo SFP-ports
4
Strømtilkobling
DC-inngang
Nettverksstandard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Portspeiling
Ja
Full tosidig
Ja
Linkaggregasjon/Linksamling
Ja
Treprotokoll (spekter)
Ja
Head-of-line (HOL)-blokkering
Ja
VLAN støtte
Ja
Virtuelle LAN-funksjoner
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
Størrelse på adressetabell
8000 oppføringer
Ruting/svitsjekapasitet
56 Gbit/s
Videresendingshastighet
41,7 Mpps
Jumbo Frames-støtte
Ja
Jumbo rammer
10000
Bufferminne pakke
4,1 MB
Access Control List (ACL)/tilgangskontrolliste
Ja
IGMP-snooping
Ja
Sikkerhetsalgoritmer
HTTPS, SNMP, SSL/TLS
MAC-adressefiltrering
Ja
Multicast-støtte
Ja
MAC adresse tabell (multicast)
256 oppføringer
Rack-montering
Ja
Formfaktor
1U
Produktfarge
Svart
Kroppsmateriale
Lineær lavdensitetspolyetylen (LLDPE)
LED-indikatorer
Ja
Antall vifter
2 vifter
Kompatible operativsystemer
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Støynivå
52 dB
Gjennomsnittstid mellom feil (MTBF)
277,604 timer
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Strømforbruk (vanlig bruk)
30 W
Strømforbruk (maks.)
446 W
Strøm over Ethernet (PoE)
Ja
Antall Power over Ethernet plus (PoE+)-ports
24
Total Power over Ethernet (PoE)-budsjett
370 W
Driftstemperatur (T-T)
-5 - 50 °C
Relativ luftfuktighet under drift (H-H)
0 - 95%
Bredde
440 mm
Dybde
250 mm
Høyde
44 mm
Vekt
3,92 kg
Kabler inkludert
AC
Hurtigstartsguide
Ja
Rack-montert sett
Ja
Ressurs-CD
Ja
Sertifisering
CE, FCC
Harmonisert system (HS)-kode
85176990
Styringsfunksjoner
Svitsjtype
Håndtert
Quality of Service (QoS) støtte
Ja
Webbasert administrasjon
Ja
MIB-støtte
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Tilkoblingsevne
Antall Basic switching RJ-45 Ethernet-ports
24
Basic switching RJ-45 Ethernet ports-type
Gigabit Ethernet (10/100/1000)
Antall Combo SFP-ports
4
Strømtilkobling
DC-inngang
Nettverksbygging
Nettverksstandard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Portspeiling
Ja
Full tosidig
Ja
Linkaggregasjon/Linksamling
Ja
Treprotokoll (spekter)
Ja
Head-of-line (HOL)-blokkering
Ja
VLAN støtte
Ja
Virtuelle LAN-funksjoner
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
Dataoverføring
Størrelse på adressetabell
8000 oppføringer
Ruting/svitsjekapasitet
56 Gbit/s
Videresendingshastighet
41,7 Mpps
Jumbo Frames-støtte
Ja
Jumbo rammer
10000
Bufferminne pakke
4,1 MB
Sikkerhet
Access Control List (ACL)/tilgangskontrolliste
Ja
IGMP-snooping
Ja
Sikkerhetsalgoritmer
HTTPS, SNMP, SSL/TLS
MAC-adressefiltrering
Ja
Multicast-egenskaper
Multicast-støtte
Ja
MAC adresse tabell (multicast)
256 oppføringer
Design
Rack-montering
Ja
Formfaktor
1U
Produktfarge
Svart
Kroppsmateriale
Lineær lavdensitetspolyetylen (LLDPE)
LED-indikatorer
Ja
Antall vifter
2 vifter
Ytelse
Kompatible operativsystemer
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Støynivå
52 dB
Gjennomsnittstid mellom feil (MTBF)
277,604 timer
Energihåndtering
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Strømforbruk (vanlig bruk)
30 W
Strømforbruk (maks.)
446 W
Power over Ethernet (PoE)
Strøm over Ethernet (PoE)
Ja
Antall Power over Ethernet plus (PoE+)-ports
24
Total Power over Ethernet (PoE)-budsjett
370 W
Miljømessige forhold
Driftstemperatur (T-T)
-5 - 50 °C
Relativ luftfuktighet under drift (H-H)
0 - 95%
Vekt og dimensjoner
Bredde
440 mm
Dybde
250 mm
Høyde
44 mm
Vekt
3,92 kg
Emballasjeinnhold
Kabler inkludert
AC
Hurtigstartsguide
Ja
Rack-montert sett
Ja
Datainnpakking
Ressurs-CD
Ja
Sertifikater
Sertifisering
CE, FCC
Logistikk data
Harmonisert system (HS)-kode
85176990
