Varenummer: 3167749

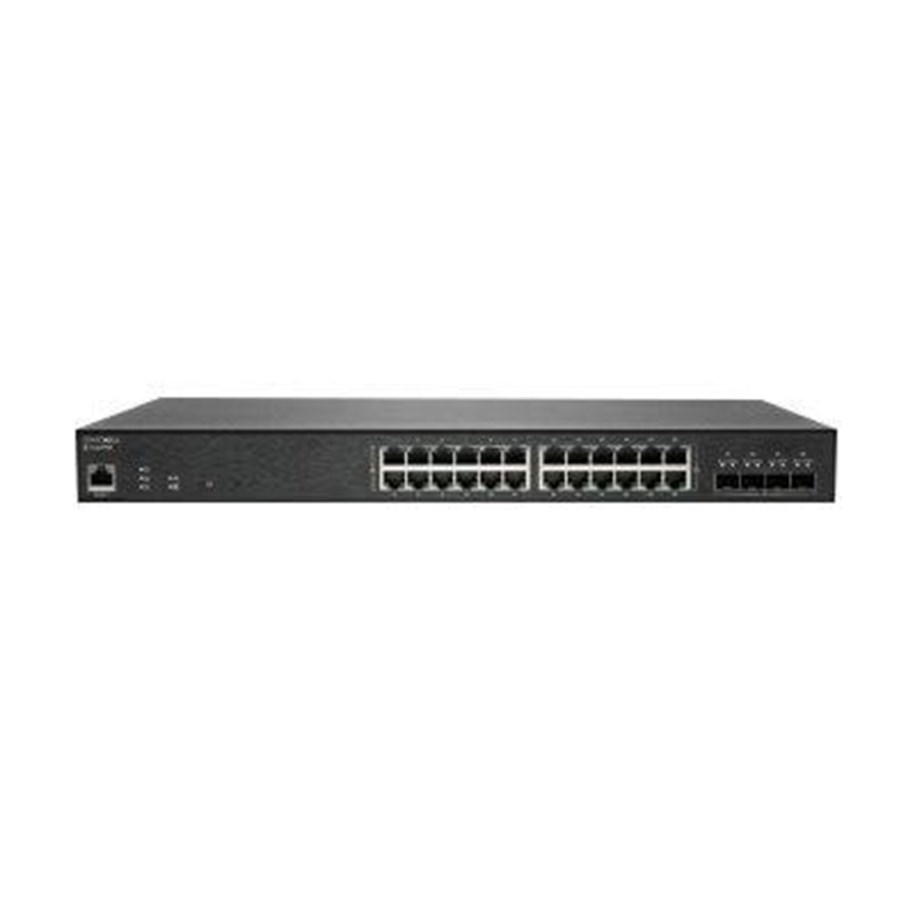

SonicWALL Switch SWS14-24FPOE
Switch, Styrt, 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, rackmonterbar, PoE+ (410 W), med 1-års 24x7-støtte
15 075,00 kr
12 060,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 6-8 dager til forsendelse
The SonicWall Switch delivers high-speed network switching while providing unparalleled performance and manageability. Its unified security posture, high port density, and multi-gigabit performance capabilities make it ideal for small and medium-sized business (SMB), and Software-Defined Branch (SD-Branch) deployments. This enables businesses - big or small, to undergo digital transformation and keep pace with the changing network and security landscape.The SonicWall Secure SD-Branch solution transforms user experience at branch office locations by delivering a unified platform that enables branches to be deployed in minutes and delivers unified visibility and threat detection from a single pane of glass. SonicWall SD-Branch components consist of SonicWall next-generation firewalls with Secure SD-WAN, Capture Security Center with Zero-Touch Deployment, SonicWall Switches, SonicWave access points (AP), Capture Client and Cloud App Security. With the flexibility that SonicWall Secure SD-Branch offers, organizations can now be more agile, open and cloud-centric.An integral part of the next-generation branch transformation, the SonicWall Switches are managed via firewalls for unified, single-pane-of-glass management of the entire SonicWall infrastructure. By tightly integrating with firewalls, the solution benefits from unified security posture and offers an end-to-end security solution that simplifies deployment, management and troubleshooting. This ensures seamless security and eliminates gap in security posture that may arise with third party switches.In conjunction, the SonicWall Switch offers Zero-Touch Deployment capability with the ability to quickly roll out devices across branches spread out globally. Admins can quickly and securely deploy these switches at new locations without requiring any costly on-site IT personnel.Prioritize certain traffic on the network such as VOIP for video conferences while working from home, with features such as QoS. Easily segment devices in the network and maintain compliance. Segregating can be accomplished by creating policies or VLANs. Features such as 802.1X authentication allow business to maintain PCI compliance.
Produsent
Varenummer
3167749
Model
02-SSC-8377
Til produsentens hjemmeside
Svitsjtype
Håndtert
Strømbryterbelegg
L2
Systemhendelseslogg
Ja
Antall Basic switching RJ-45 Ethernet-ports
24
Basic switching RJ-45 Ethernet ports-type
Gigabit Ethernet (10/100/1000)
SFP+ module antall spor
4
Konsollport
RJ-45
Nettverksstandard
IEEE 802.1p, IEEE 802.1x
10G støtte
Ja
Ethernet-kobberkabelteknologi
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Portspeiling
Ja
IP-ruting
Ja
Auto MDI/MDI-X
Ja
VLAN støtte
Ja
Virtuelle LAN-funksjoner
Tagged VLAN
Antall VLAN
4096
Størrelse på adressetabell
32000 oppføringer
Ruting/svitsjekapasitet
128 Gbit/s
Jumbo Frames-støtte
Ja
Sikkerhetsalgoritmer
802.1x RADIUS, SSH
Multicast-støtte
Ja
Rack-montering
Ja
Formfaktor
1U
Produktfarge
Svart
Internminne
512 MB
Flash-minne
128 MB
Gjennomsnittstid mellom feil (MTBF)
157763 timer
Strømkilde
AC/PoE
Strømforsyning medfølger
Ja
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Innput-strøm
7 A
Strømforbruk (vanlig bruk)
480 W
Strømforbruk (maks.)
500,4 W
Strøm over Ethernet (PoE)
Ja
Total Power over Ethernet (PoE)-budsjett
410 W
Driftstemperatur (T-T)
0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 70 °C
Relativ luftfuktighet under drift (H-H)
10 - 95%
Varmespredning
1706,4 BTU/t
Bredde
440 mm
Dybde
260 mm
Høyde
44 mm
Vekt
3,9 kg
Sertifisering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification,
WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Styringsfunksjoner
Svitsjtype
Håndtert
Strømbryterbelegg
L2
Systemhendelseslogg
Ja
Tilkoblingsevne
Antall Basic switching RJ-45 Ethernet-ports
24
Basic switching RJ-45 Ethernet ports-type
Gigabit Ethernet (10/100/1000)
SFP+ module antall spor
4
Konsollport
RJ-45
Nettverksbygging
Nettverksstandard
IEEE 802.1p, IEEE 802.1x
10G støtte
Ja
Ethernet-kobberkabelteknologi
10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Portspeiling
Ja
IP-ruting
Ja
Auto MDI/MDI-X
Ja
VLAN støtte
Ja
Virtuelle LAN-funksjoner
Tagged VLAN
Antall VLAN
4096
Dataoverføring
Størrelse på adressetabell
32000 oppføringer
Ruting/svitsjekapasitet
128 Gbit/s
Jumbo Frames-støtte
Ja
Sikkerhet
Sikkerhetsalgoritmer
802.1x RADIUS, SSH
Multicast-egenskaper
Multicast-støtte
Ja
Design
Rack-montering
Ja
Formfaktor
1U
Produktfarge
Svart
Ytelse
Internminne
512 MB
Flash-minne
128 MB
Gjennomsnittstid mellom feil (MTBF)
157763 timer
Energihåndtering
Strømkilde
AC/PoE
Strømforsyning medfølger
Ja
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Innput-strøm
7 A
Strømforbruk (vanlig bruk)
480 W
Strømforbruk (maks.)
500,4 W
Power over Ethernet (PoE)
Strøm over Ethernet (PoE)
Ja
Total Power over Ethernet (PoE)-budsjett
410 W
Miljømessige forhold
Driftstemperatur (T-T)
0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 70 °C
Relativ luftfuktighet under drift (H-H)
10 - 95%
Varmespredning
1706,4 BTU/t
Vekt og dimensjoner
Bredde
440 mm
Dybde
260 mm
Høyde
44 mm
Vekt
3,9 kg
Sertifikater
Sertifisering
FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification,
WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
