Switch/splitter - Netgear GS724TPv3 (GS724TP-300EUS) 24 Port Gigabit Ethernet PoE+ Smart Switch with 2 SFP Ports (190W) - GS724TP-300EUS
Varenummer: 3250053
GS724TP-300EUS
GS724TP-300EUS
GS724TP-300EUS
GS724TP-300EUS
GS724TP-300EUS

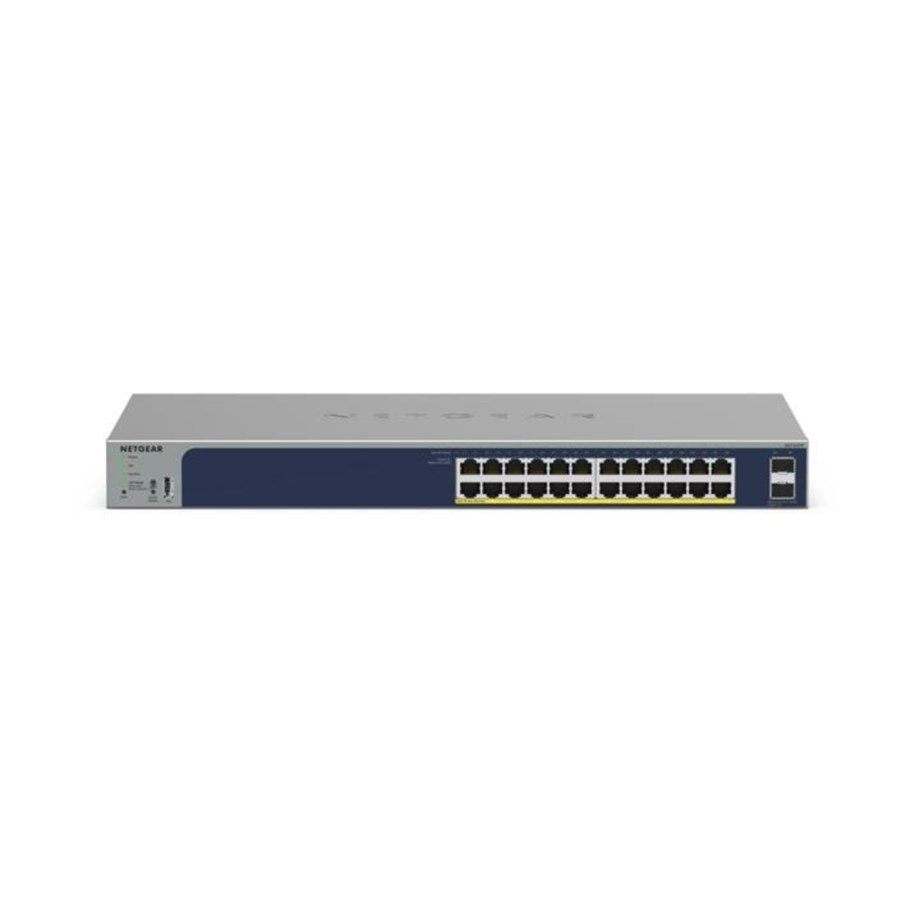

Netgear GS724TPv3 (GS724TP-300EUS) 24 Port Gigabit Ethernet PoE+ Smart Switch with 2 SFP Ports (190W)

NETGEAR GS724TP-300EUS nettverkssvitsj Håndtert L2/L3/L4 Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) Blå

4 242,00 kr 3 393,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 7-10 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Switches with Essential L2 Features for SMB Networks
NETGEAR Smart Managed Pro Switches offer powerful L2 and L2+/Layer 3 Lite features, great PoE functionality, and enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value.

Great choice of PoE options
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing PoE options that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains.

IEEE 802.3at PoE+
PoE devices encompass VoIP phones, IP Security Cameras, Wireless access points, proximity sensors, door locks and other IoT devices. Wave 2 802.11ac access points and PTZ cameras increasingly require 30W (PoE+).

Dedicated SFP Fiber Uplinks
Dedicated SFP ports provide fiber uplinks without sacrificing any downlink Gigabit port. 4 SFP ports provide not only redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover.

8 or 16 PoE+ ports from 75W to 240W
Cautious spender organizations can now deploy PoE+ devices connected to a fanless switch, the GS510TLP and its reasonable 75W power budget across 8 Gigabit ports. Others who buy infrastructure for the long term will prefer the GS510TPP and its 190W power budget across 8 Gigabit ports, or the GS418TPP Easy-Mount solution with 240W power budget across 16 Gigabit ports.

24 or 48 PoE+ ports from 190W to 760W
The GS728TPv2 and GS728TPPv2 offer respectively 190W and 380W power budget across 24 ports of Gigabit Ethernet. The GS752TPv2 and GS752TPP offer respectively 380W and 760W power budget across 48 Gigabit ports. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise, starting at 27.08dBA max at 25°C (77°F) ambient with GS728TPv2.

Dynamic VLAN Assignment
IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.

Static Routing
A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.

Comprehensive IPv6 Support for Management, ACL and QoS
Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement.

Build current network with future in mind
Ensure investment protection and a smooth migration to IPv6-based network without switch replacement. Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra Multicast router.

Robust Security Features
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.

802.1x authentication
DHCP Filtering
Port-based security by locked MAC
ACL filtering to permit or deny traffic based on MAC and IP addresses

Auto Voice and Auto Video
Automatic Voice over IP prioritization with Auto-VoIP simplifies most complex multi-vendor IP telephones deployments either based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user based OUIs) in the phone source MAC address; providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. When deployed IP phones are LLDP-MED compliant, the Voice VLAN will use LLDP-MED to pass on the VLAN ID, 802.1P priority and DSCP values to the IP phones, accelerating convergent deployments.

Comprehensive QoS Features
Advanced controls for optimized network performance and better delivery of mission-critical traffics such as voice and video.
Port-based or 802.1p-based prioritization
Layer 3-based (DSCP) prioritization
Port-based ingress and egress rate limiting

DHCP Snooping
Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network.

Dual Firmware Images
Dual firmware image for transparent firmware updates / configuration changes with minimum service interruption.

PoE Timer
Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/off of POE ports.

Protected Ports
Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversation can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.

Produsent
Varenummer
3250053
Model
GS724TP-300EUS
Ean
606449162660
Til produsentens hjemmeside
Produktbeskrivelse
NETGEAR Smart GS724TP - switch - 24 porter - smart - rackmonterbar
Enhetstype
Switch - 24 porter - L3 Lite - smart
Utførelse
Rackmonterbar 1U
Undertype
Gigabit Ethernet
Porter
24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
190 W
Ytelse
Båndbredde: 52 Gbps
Fremsendingshastighet (64-byte pakker): 38,6 Mpps
1 Gbps-kobberlatens (64-bytepakker): 3.749 μs
1 Gbps-fiberlatens (64-bytepakker): 3.129 μs
Kapasitet
Pakkebufferstørrelse: 0.5 MB
Prioritetskøer: 8
Multicast-grupper: 128
Virtuelle grensesnitt (VLAN-er): 64
DHCP snuseoppføringer: 256
ACL-er per system: 100
Pakkebufferstørrelse: 1,5 MB
Mac Adress Tabellstørrelse
8K adresser
Jumborammestøtte
10KB
Rutingprotokoll
IGMP, statisk IP-ruting, MLDv2, MLD
Protokoll for fjernstyrt administrasjon
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Egenskaper
Flytkontroll, IGMP-snusing, DoS angrepsprevensjon, portspeiling, lagring og fremsending, IPv6-støtte, oppgraderbar fastvare, STP-støtte, støtte for RSTP, MSTP-støtte, DHCP-snusing, MLD-snusing, IPv4-støtte, LACP, DHCP-klient, 512 KB-pakkebuffer, GVRP, fastvare dobbeltbilder, sløyfeprevensjon, statisk ruting, CoS, SP, skystyring, støtte for DSCP, Protokollbasert VLAN-støtte, kabeltest, ICMP Router Discovery Protocol (IRDP), IGMP-forespørsler, DNS-klient, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, portgruppering, Advanced QoS, LAG, sikkerhetsspor (kompatibel med Kensington-sikkerhetslås), 2 vifter, QoS
Tilpassede standarder
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Strømforsyning
AC 100-240 V (50 - 60 Hz)
Dimensjoner (BxDxH)
44 cm x 20.4 cm x 4.3 cm
Vekt
3.15 kg
Lokalisering
Europa
Fabrikantgaranti
NETGEAR-livstidsgaranti

Generelt

Enhetstype
Switch - 24 porter - L3 Lite - smart
Utførelse
Stasjonær, rackmonterbar 1U
Undertype
Gigabit Ethernet
Porter
24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Strøm via Ethernet (PoE)
PoE+
PoE-budsjett
190 W
Ytelse
Båndbredde: 52 Gbps
Fremsendingshastighet (64-byte pakker): 38,6 Mpps
1 Gbps-kobberlatens (64-bytepakker): 3.749 μs
1 Gbps-fiberlatens (64-bytepakker): 3.129 μs
Kapasitet
Pakkebufferstørrelse: 0.5 MB
Prioritetskøer: 8
Multicast-grupper: 128
Virtuelle grensesnitt (VLAN-er): 64
DHCP snuseoppføringer: 256
ACL-er per system: 100
Pakkebufferstørrelse: 1,5 MB
Mac Adress Tabellstørrelse
8K adresser
Jumborammestøtte
10KB
Rutingprotokoll
IGMP, statisk IP-ruting, MLDv2, MLD
Protokoll for fjernstyrt administrasjon
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Krypteringsalgoritme
TLS 1.0
Autentifikasjons Metode
RADIUS, TACACS+
Egenskaper
Flytkontroll, IGMP-snusing, DoS angrepsprevensjon, portspeiling, lagring og fremsending, IPv6-støtte, oppgraderbar fastvare, STP-støtte, støtte for RSTP, MSTP-støtte, DHCP-snusing, MLD-snusing, IPv4-støtte, LACP, DHCP-klient, 512 KB-pakkebuffer, GVRP, fastvare dobbeltbilder, sløyfeprevensjon, statisk ruting, CoS, SP, skystyring, støtte for DSCP, Protokollbasert VLAN-støtte, kabeltest, ICMP Router Discovery Protocol (IRDP), IGMP-forespørsler, DNS-klient, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, portgruppering, Advanced QoS, LAG, sikkerhetsspor (kompatibel med Kensington-sikkerhetslås), 2 vifter, QoS
Tilpassede standarder
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Prosessor
MIPS 4Kec: 500 MHz
RAM
128 MB
Flash-minne
32 MB
Statusindikatorer
Portoverføringshastighet, strøm, vifte, PoE

Ekspansjon / Tilkoplinger

Grensesnitt
24 x 1000Base-T RJ-45
2 x 1000Base-X SFP

Strømforsyning

Strømenhet
Intern strømforsyning
Påkrevd nettspenning
AC 100-240 V (50 - 60 Hz)

Diverse

Tilleggsutstyr inkludert
Fotputesett
Rack-monteringssett
Inkludert
MTBF
1,051,375 timer
Tilpassede standarder
EN 55032, CISPR 32:2012, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, CCC, ANSI C63.4:2014, AS/NZS 60950-1:2015, BSMI CNS 13438 Class A, CB, cUL 1950, EN 60950, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, FCC CFR47 Part 15 A, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, LVD, RCM, UL 1950
Lokalisering
Europa

Mål og vekt

Bredde
44 cm
Dybde
20.4 cm
Høyde
4.3 cm
Vekt
3.15 kg
