Varenummer: 3510884

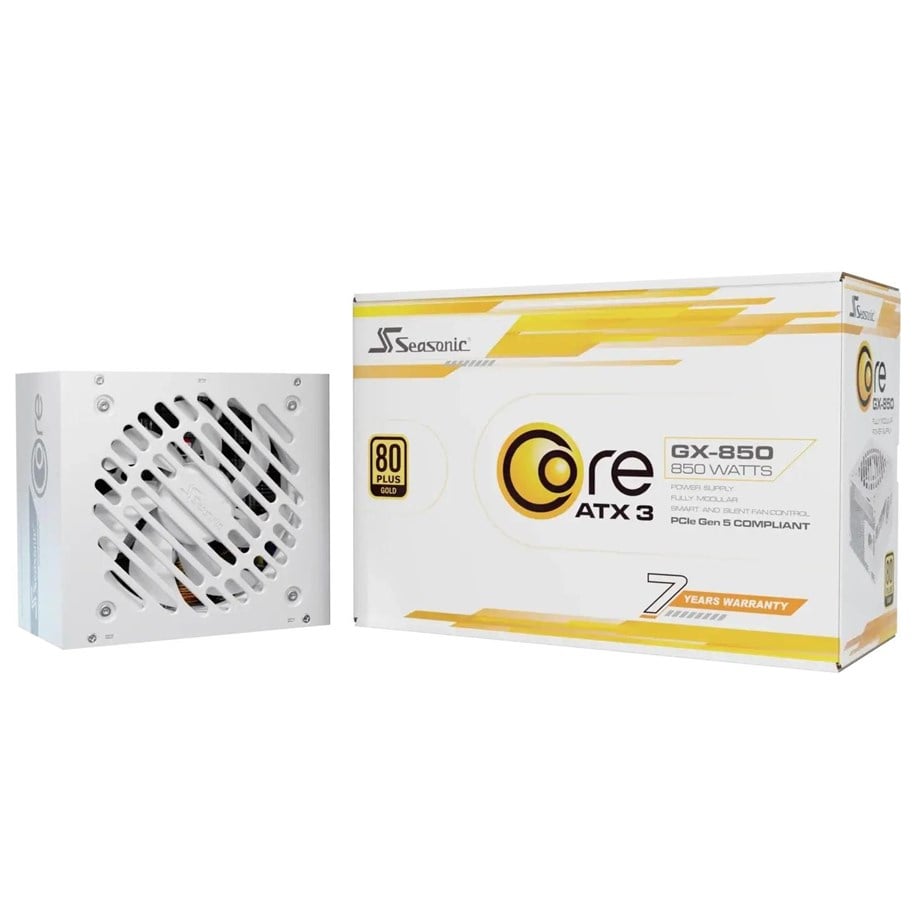

Seasonic CORE GX-850 Strømforsyning (PSU) - 850 Watt - ATX 3.1 - 80 Plus Gold sertifisert

Strømforsyning ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, Cybenetics: Platinum effektivitet / A- støynivå, 120mm kjøler Hydro Bearing lager, kabler: 3 x 8 (6+2) pins for grafikkort / 1 x 12V-2x6 600 Watt pins for grafikkort (PCI Express 5.1 ready) / 3 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, full modulærfarge: hvit, 850 watt

Les mer
På lager
1 299,00 kr 1 039,20 kr eksl. mva
Gratis frakt (privatkunde)
1 stk. På lager - 1-3 dager til levering

CORE GX White ATX 3.1
The updated Seasonic CORE GX White ATX 3.1 Series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX White line is a fully modular design equipped with white cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.

New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GX White ATX 3.1 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.

By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.

The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.

The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.

The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.

S2FC - Smart And Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

Strømkabel (intern)

Produsent
Varenummer
3510884
Model
SRP-CGX851-A5A32SF-W
Ean
4711173878728
Til produsentens hjemmeside
Total strøm
850 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Innput-strøm
11 - 5.5 A
Kombinert strøm (+3.3V)
100 W
Kombinert strøm (+12V)
840 W
Kombinert strøm (-12V)
3,6 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
70 A
Max output current (+5V)
20 A
Max output current (-12V)
0,3 A
Max output current (+5Vsb)
3 A
Strømbeskyttelsesfunksjoner
Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage
Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
3
Hovedkort strømkabellengde
61 cm
Antall SATA-strømtilkoblinger
3
SATA kraftledning lengde
750 mm
Peripheral (Molex) strømkabellengde
690 mm
PCI Express-strømtilkobling (6+2-pin)
3
PCI Express-strømkontakter (12+4-pinners)
1
PCI Express-strømkontakter (12+4-pinners) kabellengde
700 mm
CPU strømtilkobling (4+4-pin)
Ja
CPU kraftledning lengde
75 cm
Kabeltype
Fullt modulær
Formål
PC
Strømforsyningsenhetens formfaktor
ATX
80 PLUS-sertifisering
80 PLUS Gold
ATX-versjon
3.1
Bæreteknologi
Hypro Bearing
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Produktfarge
Hvit
Form for nedkjøling
Aktiv
Viftediameter
12 cm
Av/på-bryter
Ja
Driftstemperatur (T-T)
0 - 50 °C
Bredde
140 mm
Dybde
150 mm
Høyde
86 mm

Energihåndtering

Total strøm
850 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Innput-strøm
11 - 5.5 A
Kombinert strøm (+3.3V)
100 W
Kombinert strøm (+12V)
840 W
Kombinert strøm (-12V)
3,6 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
70 A
Max output current (+5V)
20 A
Max output current (-12V)
0,3 A
Max output current (+5Vsb)
3 A
Strømbeskyttelsesfunksjoner
Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage

Tilkoblingsevne

Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
3
Hovedkort strømkabellengde
61 cm
Antall SATA-strømtilkoblinger
3
SATA kraftledning lengde
750 mm
Peripheral (Molex) strømkabellengde
690 mm
PCI Express-strømtilkobling (6+2-pin)
3
PCI Express-strømkontakter (12+4-pinners)
1
PCI Express-strømkontakter (12+4-pinners) kabellengde
700 mm
CPU strømtilkobling (4+4-pin)
Ja
CPU kraftledning lengde
75 cm
Kabeltype
Fullt modulær

Ytelse

Formål
PC
Strømforsyningsenhetens formfaktor
ATX
80 PLUS-sertifisering
80 PLUS Gold
ATX-versjon
3.1
Bæreteknologi
Hypro Bearing
Gjennomsnittstid mellom feil (MTBF)
100000 timer

Design

Produktfarge
Hvit
Form for nedkjøling
Aktiv
Viftediameter
12 cm
Av/på-bryter
Ja

Miljømessige forhold

Driftstemperatur (T-T)
0 - 50 °C

Vekt og dimensjoner

Bredde
140 mm
Dybde
150 mm
Høyde
86 mm
