Varenummer: 3438331

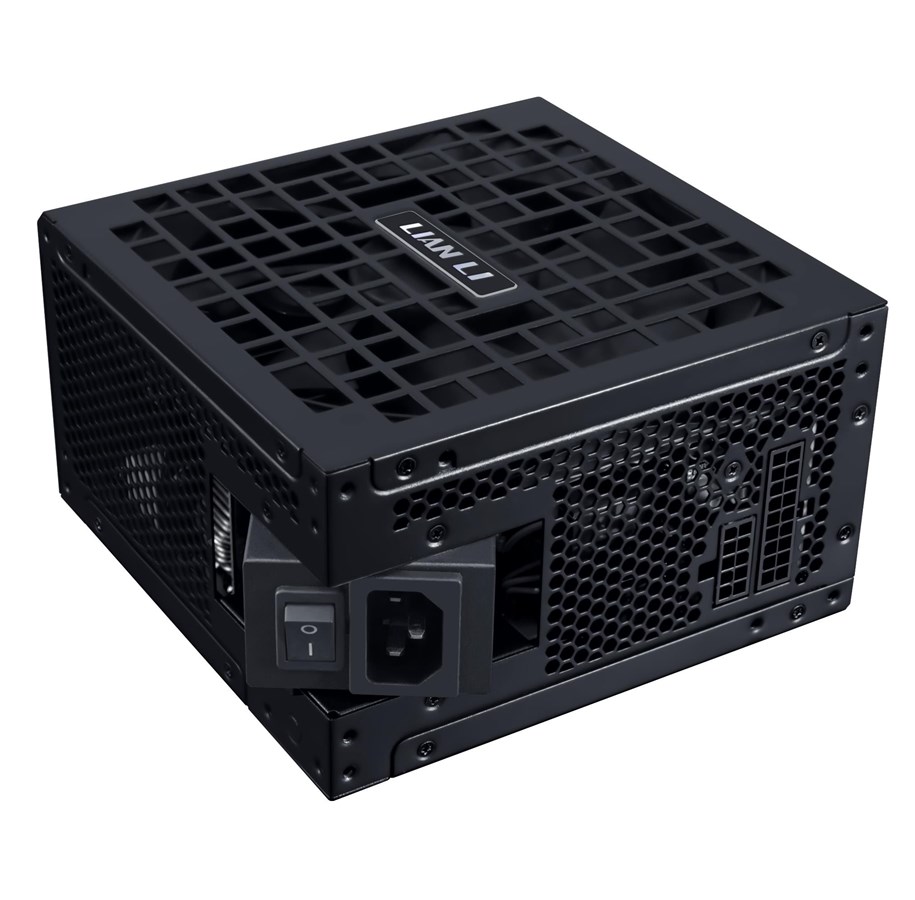

Lian Li RS1000G With Hub Strømforsyning (PSU) - 1000 Watt - 135 mm - ATX 3.1 - 80 Plus Gold sertifisert

Strømforsyning ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, 135mm kjøler fluid dynamic lager, kabler: 4 x 8 (6+2) pins for grafikkort / 1 x 12V-2x6 pins for grafikkort (PCI Express 5.1 ready) / 3 x 5 pins SATA / 1 x 24 (20+4) pins ATX / 1 x 4+4 pins CPU1 x 8 pins CPU, full modulærfarge: svart, 1000 watt

Gratis frakt (privatkunde)
Bestillingsvare, 7-9 dager til forsendelse

MULTIPLE CERTIFICATIONS

Built as a Gold-standard power supply, the RS Series surpasses expectations.
During Cybenetics testing, its real-world efficiency exceeded the Gold range and earned a Platinum rating, proving its exceptional performance and power savings in demanding workloads.

TWO INSTALLATION OPTIONS FOR GREATER FLEXIBILITY

The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management.

ROTATABLE AC INLET

Innovative rotatable AC inlet rotates 90°, providing unmatched flexibility to accommodate both standard and vertical installations.

Flexible Cable Routing with Dual-Sided 20+4 Pin

The dual-sided 20+4 Pin output design allows cable routing from both sides, making installation cleaner and easier in any configuration.

PREMIUM INDUSTRIAL-GRADE CAPACITORS FOR UNMATCHED RELIABILITY

Equipped with German EPCOS capacitors, the RS Series delivers long-lasting stability and trusted performance you can rely on.

COMPACT SIZE, POWERFUL COOLING

With a 150 × 86 × 150 mm form factor and a built-in 135 mm fan, the RS Series delivers efficient airflow and excellent dual-chamber case compatibility. Rated SSS by PPLP.info, it ensures ultra-low noise across all load levels for a consistently quiet experience.

LIAN LI Exclusive Dual-Color 12V-2×6 Cable

Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery. The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build.

Braided-Textured Cable for Aesthetic Appeal

The main 20+4-pin motherboard cable features a braided texture design with an included cable comb, offering durability and a refined look that enhances the overall build aesthetics.

SHORTEN YOUR CABLES, PERFECT YOUR BUILD

These ultra-flexible flat cables, combined with magnetic clips that secure the folds, let you manage excess length, making them ideal for builds that require shorter CPU or PCIe cables. Perfect for back-connect motherboards or side-mounted PSU setups, they help keep your layout neat and organized.

Protective Dust Cover for 18+10 Pin Output

Equipped with an insulated dust cover on the 18+10 pin output to protect against foreign objects and ensure safe, reliable operation.

RS Hub for Enhanced Connectivity

The integrated RS Hub provides extra connectivity directly from the PSU, reducing reliance on motherboard USB ports and simplifying cable management for a cleaner build. It comes with both USB Type-A and USB-to-USB cables, giving users flexible options to suit different routing preferences and installation setups.

Two Included USB Cables for Flexible Routing

Comes with both USB-Type A and USB-to-USB cables to suit different routing preferences and build configurations.

All Essential Cables Included

The RS Series comes with a complete set of high-quality modular cables right out of the box. Every connection you need for a clean and reliable build is already included, ensuring a hassle-free installation experience.

10-Year Warranty

The RS Series PSU comes with an impressive 10-year warranty, ensuring long-term reliability and complete peace of mind. The RS Hub is also backed by a 2-year warranty, providing dependable support for every setup.

Strømkabel (intern)

Produsent
Varenummer
3438331
Model
G9P.RS1000G.BH00.EU
Ean
4718466018861
Til produsentens hjemmeside
Total strøm
1000 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Innput-strøm
8 - 15 A
Power Factor Correction (PFC) type
Aktiv
Kombinert strøm (+3.3V)
100 W
Kombinert strøm (+12V)
1000 W
Kombinert strøm (+5V)
100 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
83,3 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Strømbeskyttelsesfunksjoner
No load operation, Overstrøm, Overstrøm, Over-spenning (volt), Kortslutning, Surge & inrush protection (SIP), Under temperatur, Under voltage
Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
4
Hovedkort strømkabellengde
62 cm
Peripheral (Molex) strømkabellengde
500 mm
PCI Express-strømtilkobling (6+2-pin)
2
PCI Express-strømforsyning kabellengde
65 cm
CPU kraftledning lengde
70 cm
ATX strømtilkobling (20+4-pin)
Ja
Kabeltype
Fullt modulær
Formål
PC
Strømforsyningsenhetens formfaktor
ATX
80 PLUS-sertifisering
80 PLUS Gold
ATX-versjon
3.1
Støynivå
36,21 dB
Bæreteknologi
FDB
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Produktfarge
Svart
Viftediameter
13,5 cm
Antall vifter
1 vifter
Viftehastighet
0 - 1600 RPM
Driftstemperatur (T-T)
0 - 40 °C
Bredde
86 mm
Dybde
150 mm
Høyde
150 mm

Energihåndtering

Total strøm
1000 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Innput-strøm
8 - 15 A
Power Factor Correction (PFC) type
Aktiv
Kombinert strøm (+3.3V)
100 W
Kombinert strøm (+12V)
1000 W
Kombinert strøm (+5V)
100 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
83,3 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Strømbeskyttelsesfunksjoner
No load operation, Overstrøm, Overstrøm, Over-spenning (volt), Kortslutning, Surge & inrush protection (SIP), Under temperatur, Under voltage

Tilkoblingsevne

Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
4
Hovedkort strømkabellengde
62 cm
Peripheral (Molex) strømkabellengde
500 mm
PCI Express-strømtilkobling (6+2-pin)
2
PCI Express-strømforsyning kabellengde
65 cm
CPU kraftledning lengde
70 cm
ATX strømtilkobling (20+4-pin)
Ja
Kabeltype
Fullt modulær

Ytelse

Formål
PC
Strømforsyningsenhetens formfaktor
ATX
80 PLUS-sertifisering
80 PLUS Gold
ATX-versjon
3.1
Støynivå
36,21 dB
Bæreteknologi
FDB
Gjennomsnittstid mellom feil (MTBF)
100000 timer

Design

Produktfarge
Svart
Viftediameter
13,5 cm
Antall vifter
1 vifter
Viftehastighet
0 - 1600 RPM

Miljømessige forhold

Driftstemperatur (T-T)
0 - 40 °C

Vekt og dimensjoner

Bredde
86 mm
Dybde
150 mm
Høyde
150 mm
