Varenummer: 2918049

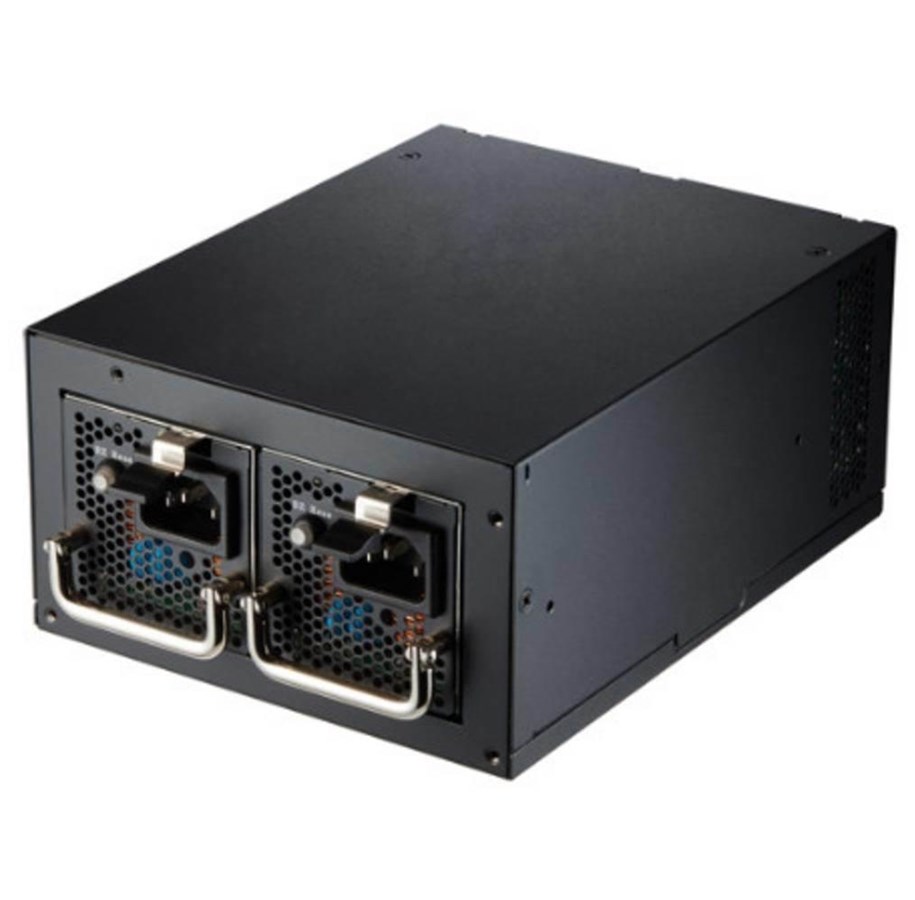

FSP Pro Strømforsyning (PSU) - 700 Watt - ATX - 80 Plus Gold sertifisert

FSP Twins PRO 700W strømforsyningsenhet 20+4 pin ATX PS/2 Sort

4 517,00 kr 3 613,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse

Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.

Redundant system design and built-in hot swappable modules

With redundancy in mind, the Twin Pro modular system design is more efficient and operates quieter by distributing the power load between two hot swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.

Black ribbon cable design

The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.

Power cord locking device

The Twins Pro series features a power cord locking device that secures the power cord from acciedntal disconnect helping to ensure stable poeration without any system interruptions.

The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real-time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in real-time.

Ideal for home, mail or web server systems

The Twins series is an ATX PS2 size redundant power supply. The Twins Pro does not have front-end brackets, which makes it an deal power solution for a home cloud server, mail server, or a small to medium-sized enterprise (SME) web server.

Strømkabel (intern)

Produsent
Varenummer
2918049
Model
PPA7004601
Ean
4713224523106
Til produsentens hjemmeside
Total strøm
700 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
10-5 A
Power Factor Correction (PFC) type
Aktiv
Kombinert strøm (+3.3V)
130 W
Kombinert strøm (+5V)
130 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
58,3 A
Max output current (+5V)
20 A
Max output current (-12V)
0,5 A
Max output current (+5Vsb)
3 A
Effektivitet
90%
Strømbeskyttelsesfunksjoner
Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage
Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
2
Antall SATA-strømtilkoblinger
6
PCI Express-strømtilkobling (6+2-pin)
4
CPU strømtilkobling (4+4-pin)
Ja
Kabeltype
Non-Modular
Formål
Server
Strømforsyningsenhetens formfaktor
PS/2
80 PLUS-sertifisering
80 PLUS Gold
Bæreteknologi
Kulelager
Produktfarge
Svart
Viftediameter
4 cm
Antall vifter
2 vifter
Kabler inkludert
CPU, PCIe, SATA
Bredde
150 mm
Dybde
190 mm
Høyde
86 mm
Harmonisert system (HS)-kode
84733020

Energihåndtering

Total strøm
700 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
10-5 A
Power Factor Correction (PFC) type
Aktiv
Kombinert strøm (+3.3V)
130 W
Kombinert strøm (+5V)
130 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
58,3 A
Max output current (+5V)
20 A
Max output current (-12V)
0,5 A
Max output current (+5Vsb)
3 A
Effektivitet
90%
Strømbeskyttelsesfunksjoner
Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage

Tilkoblingsevne

Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
2
Antall SATA-strømtilkoblinger
6
PCI Express-strømtilkobling (6+2-pin)
4
CPU strømtilkobling (4+4-pin)
Ja
Kabeltype
Non-Modular

Ytelse

Formål
Server
Strømforsyningsenhetens formfaktor
PS/2
80 PLUS-sertifisering
80 PLUS Gold
Bæreteknologi
Kulelager

Design

Produktfarge
Svart
Viftediameter
4 cm
Antall vifter
2 vifter

Emballasjeinnhold

Kabler inkludert
CPU, PCIe, SATA

Vekt og dimensjoner

Bredde
150 mm
Dybde
190 mm
Høyde
86 mm

Logistikk data

Harmonisert system (HS)-kode
84733020
