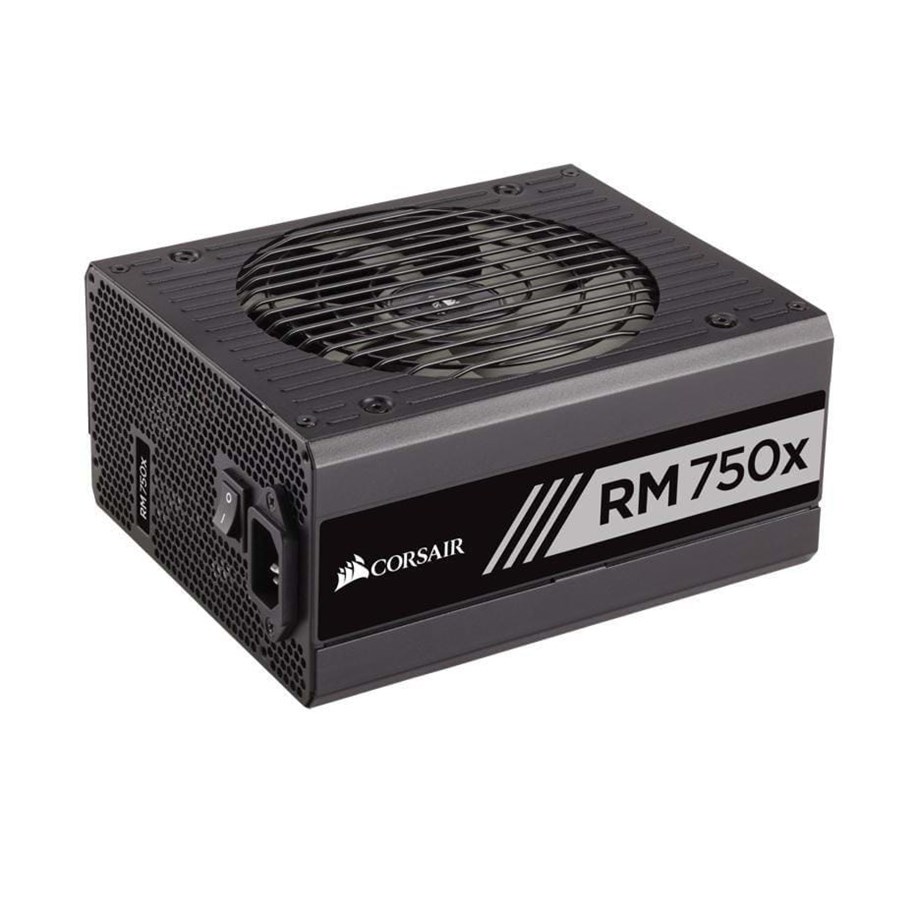

CP-9020179-EU - Corsair RM750x (2018) Strømforsyning (PSU) - 750 Watt - 135 mm - 80 Plus Gold sertifisert

Corsair RM750x (2018) Strømforsyning (PSU) - 750 Watt - 135 mm - 80 Plus Gold sertifisert

Strømforsyning ( intern ), ATX12V 2.4 / EPS12V 2.92, 80 Plus Gold, 135 mm kjøler med zero RPM fan mode teknologi og Rifle Bearing kjøler, aktiv PFC, kabler: 4 x 8 (6+2) pins for grafikkort / 9 x 5 pins SATA / 8 x 4 pins Molex / 1 x Floppy / 1 x 20+4 pins ATX / 1 x 4+4 pins CPU, full modulær & tynne sleevede kabler, 750 watt - Corsair RMx (2018) Series

Varenummer: 2646315
Varen er utgått

Detaljer

Produsent: Corsair
Varenummer: 2646315
Model: CP-9020179-EU
Ean: 0843591034937

Til produsentens hjemmeside

www.corsair.com/en-eu/rmx-seri...
ProduktbeskrivelseCORSAIR RMx Series RM750x - 2018 Edition - strømforsyning - 750 watt
EnhetstypeStrømforsyning - intern
SpesifikasjonssamsvarATX12V 2.4/ EPS12V 2.92
80 PLUS-sertifisering80 PLUS Gold
Vekt1.659 kg
LokaliseringEuropa
InngangsspenningAC 100-240 V
Utgangsspenning+3.3, +5, ±12 V
Effektkapasitet750 watt
Utgangskontakter1 x strøm 24-pins ATX med avtakbar 4-pinsdel
2 x strøm 8-pins EPS12V med avtakbar 4-pins ATX12V-del
8 x 4-pin intern strøm
9 x 15-pins seriell ATA-strøm
1 x 4-pin mini-strømkontakt
4 x 8-pins PCI Express-strøm med avtakbar 2-pins del
Kjølesystem135 mm-vifte
Tilleggsutstyr inkludertBoksskilt, kabelfestebånd, kabelpose
Dimensjoner (BxDxH)15 cm x 16 cm x 8.6 cm

Generelt

Enhetstype Strømforsyning - intern
Spesifikasjonssamsvar ATX12V 2.4/ EPS12V 2.92
PSU-formfaktor ATX
Lokalisering Europa

Strømenhet

Inngangsspenning AC 100-240 V
Frekvens nødvendig 47 - 63 Hz
Detaljer om strømutgangskoblinger 1 x strøm 24-pins ATX med avtakbar 4-pinsdel
2 x strøm 8-pins EPS12V med avtakbar 4-pins ATX12V-del
8 x 4-pin intern strøm
9 x 15-pins seriell ATA-strøm
1 x 4-pin mini-strømkontakt
4 x 8-pins PCI Express-strøm med avtakbar 2-pins del
Utgangsspenning +3.3, +5, ±12 V
Effektkapasitet 750 watt
Utgangsstrøm +3.3V - 25 A
+5V - 25 A
+12V - 62.5 A
-12V - 0.8 A
+5VSB - 3 A
Effektivitet 90%
Modulkabelstyring Ja
80 PLUS-sertifisering 80 PLUS Gold

Diverse

Tilleggsutstyr inkludert Boksskilt, kabelfestebånd, kabelpose
Medfølgende kabler Strømkabelsett
MTBF 100,000 timer
Kjølesystem 135 mm-vifte
Egenskaper Overspenningsvern, overstrømsbeskyttelse, underspenningsbeskyttelse, kortslutningsbeskyttelse, temperaturkontrollert vifte, Null RPM viftemodus, kjølevifte med riflelager, helt modulær
Tilpassede standarder CSA, UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM, CU-TR

Gold-certified efficiency with extremely tight voltage regulation to deliver superior performance.

Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they’re a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.

80 PLUS Gold certified

Gold certification ensures high efficiency operation for less excess heat and lower operating costs.

100% Japanese 105°C capacitors

Premium internal components ensure solid power delivery and long term reliability.

Zero RPM Fan Mode

Since the fan doesn’t turn on until it’s needed, you’ll enjoy virtually silent operation at low and medium loads.

Ten year warranty

Your guarantee of reliable operation that will last across several system builds.

Fully modular cable set

Installation is faster, since you can mount the power supply in the case first, and then attach only the cables you need.
