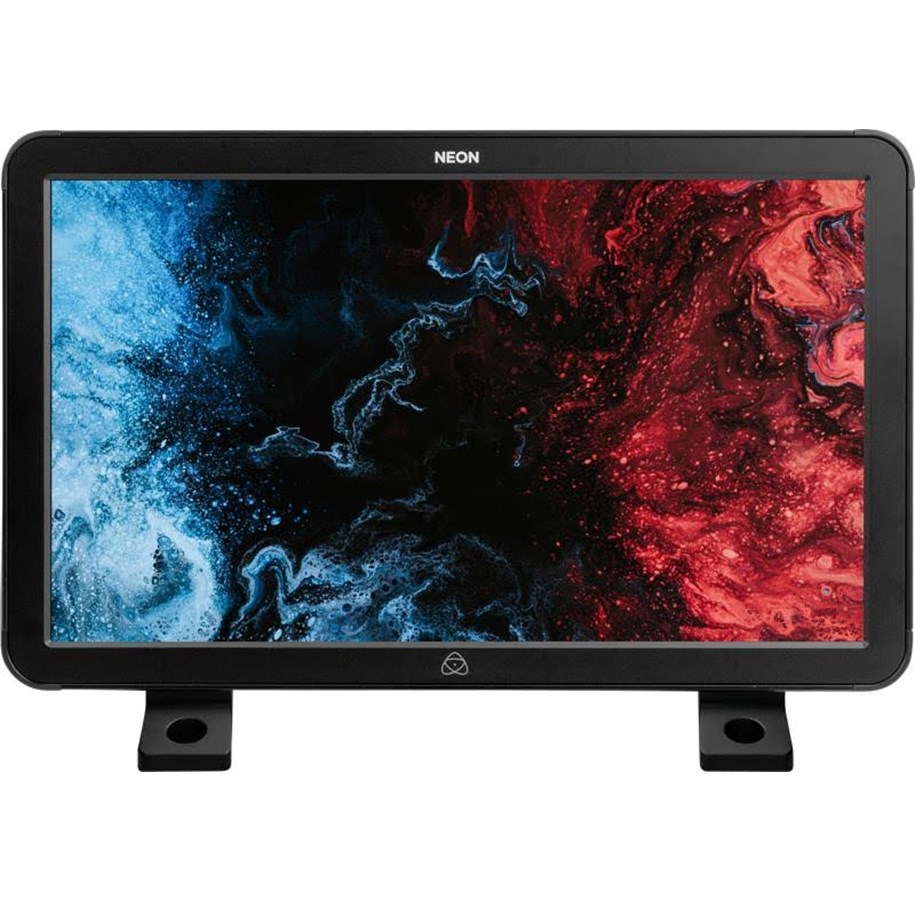

Atomos Neon 17
Produksjonsmonitor-opptaker leverer presis HD HDR-monitorering for bruk på sett og i studio med 1000 nits lysstyrke over hele skjermen, 0 nits dyp svart og nøyaktighet i bredt fargespekter.
Atomos Neon 17 er bygget for pålitelig HDR-visning og opptaksarbeidsflyter, og kombinerer en lyssterk berøringsskjerm med profesjonell monitoreringsytelse for videoproduksjon.
- HD HDR produksjonsmonitor-opptaker for sett og studio
- 1000 nits lysstyrke over hele skjermen
- 0 nits dyp svart
- Høy nøyaktighet over et bredt fargespekter
Få konsistent HDR-monitorering som hjelper deg å vurdere eksponering, kontrast og farge med trygghet mens du arbeider.
Unlock the full potential of SDI RAW cinema cameras with NEON 17. Preserve pristine sensor data by recording in Apple ProRes RAW at up to:
6Kp30
4Kp60 DCI/UHD
2Kp240 DCI/HD
Alternatively, record in CinemaDNG up to 4Kp30 DCI.
NEON 17 is compatible with Sony FS series cameras, Canon C300 MKII/C500, Panasonic EVA-1/Varicam LT, and many more.
10-bit ProRes and DNxHR/HD up to 4Kp60
Video from virtually any camera or digital video source can be recorded via SDI or HDMI. Capture up to 10-bit 4:2:2 in Apple ProRes or Avid DNxHR codecs at up to 4Kp60.
With multi-input support via SDI, NEON 17 allows recording of up to four inputs and also supports ProRes LT and DNxHD 36 for extended recording times.
High-Brightness HDR Monitoring
With 1000 nits full-screen brightness, a 1920 × 1080 resolution display, and 10-bit processing, all housed in a robust chassis, NEON 17 performs reliably in any production environment.
SDI and HDMI I/O support a wide range of formats and enable:
4K → HD cross-conversion
Signal down-conversion
The display delivers accurate color reproduction across the DCI-P3 color space with true deep blacks.
Live Quad-Channel HD Switching & Recording
Record up to four 1080p60 streams simultaneously (via 3G-SDI Level A only) as separate ISOs, plus a fifth “program” channel of your switched output — while cueing and switching in real time.
Monitor the mixed output live via HDMI or SDI, or connect an HDMI-to-USB capture device for live streaming.
Asynchronous switching eliminates the need for expensive locked sources, allowing the use of more affordable cameras without timecode or genlock inputs.
Two Balanced XLR Inputs with 48V
Full-size XLR connectors with 48V phantom power allow connection of two external microphones for balanced analog audio recording and monitoring.
NEON 17 includes:
Dedicated audio meters
Gain controls
Frame delay adjustments per channel
Mic- or line-level audio can be seamlessly synchronized with embedded HDMI and SDI audio sources.
Key Specifications
1000-nit HDR display with true deep blacks
DCI-P3 wide color gamut coverage
Record Apple ProRes RAW via SDI up to 6Kp30
4 × HD ISO switching and recording + program recording (3G-SDI Level A)
10-bit 4:2:2 Apple ProRes or Avid DNxHR at up to 4Kp60
AC power or dedicated Battery XLR inputs for continuous external battery operation
100 × 100 VESA mount, plus 3/8" and 1/4"-20 mounting options
Rugged production-ready design
In the Box
NEON 17 unit
1 × Master Caddy II
1 × Mounting bracket
Desktop feet with mounting screws
AC power supply
