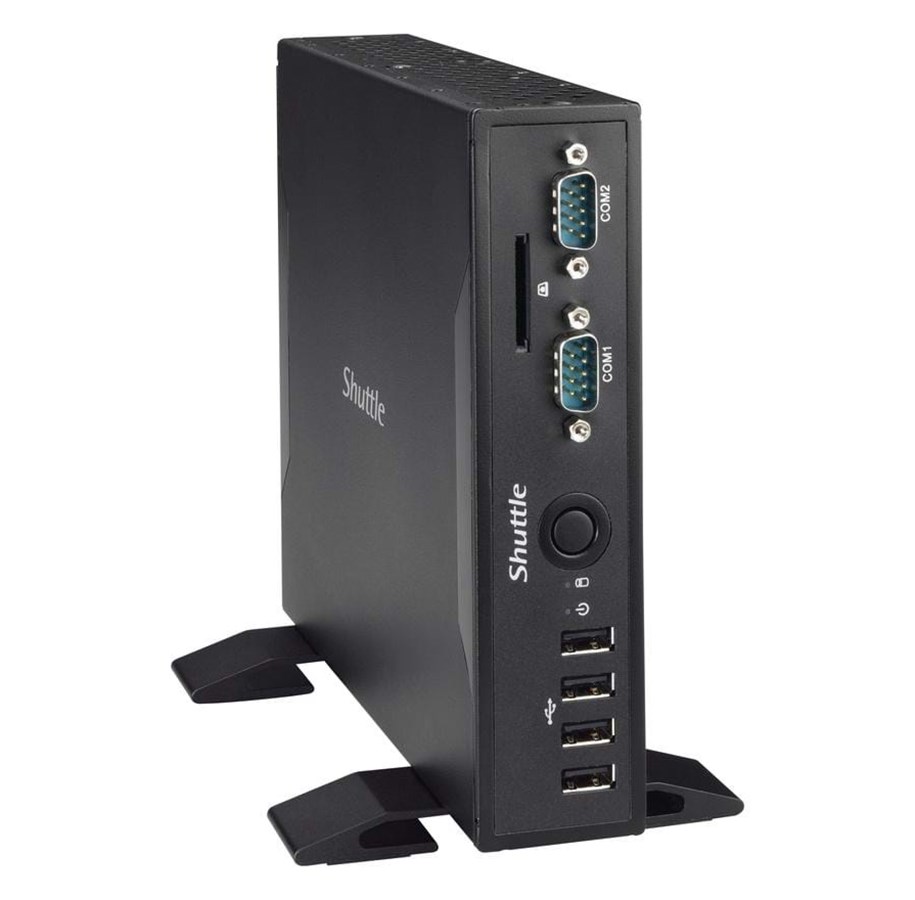

Shuttle Barebone DS57U

Generelt
Type	Barebone-PC
Produktformfaktor	Slim-PC
Farge	Svart

Prosessor / Chipset
CPU	Intel Celeron 3205U / 1.5 GHz
Antall kjerner	Dobbeltkjerne
Antall CPU-er	1
Maks. antall CPU-er	1
Strømforsyningseffektivitet	Ultralav spenning (ULV)

Cache-minne
Installert Størrelse	L3 Cache - 2 MB
Cache pr. prosessor	2 MB

RAM
Installert størrelse	0 MB / 16 GB (maks.)
Teknologi	DDR3L SDRAM
Produktformfaktor	SO DIMM 204-pin
Egenskaper	Ikke-bufret, dobbeltkanalsminnearkitektur

Harddisk
Type	Uten HDD

Diskkontroller
Type	1 x SATA - integrert
Kontroller grensesnittype	SATA 6Gb/s
Kanal antall	1

Kortleser
Type	Kortleser
Støttede flash-minnekort	SD-minnekort, SDHC-minnekort, SDXC-minnekort

Skjerm
Skjermtype	Ingen.

Grafikk-kontroller
Type	Integrert
Grafikkprosessor	Intel HD Graphics Delt skjermminne (UMA)
Maks allokert RAM-størrelse	1632 MB

Lydutgang
Type	Integrert
Lydmodus	Stereo
Tilpassede standarder	High Definition Audio

Nettverkstilknytning
Type	Integrert
Ethernet-porter	2 x Gigabit Ethernet
Ethernet-kontroller	Realtek RTL8111E
Trådløs LAN-støtte	Ja
Datakjedeprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Egenskaper	Wake on LAN (WoL), PXE-støtte
Tilpassede standarder	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ekspansjon / Tilkoplinger
Brønner	1 (total) / 1 (ledig) x intern 2.5" x 1/6H
Spor	2 (total) / 2 (ledig) x SO-DIMM 204-pin 1 (total) / 0 (ledig) x PCIe Half Mini Card 1 (total) / 1 (ledig) x Mini PCIe 2.0/mSATA
Grensesnitt	1 x mikrofon - mini-jack (1 foran) 1 x lydutlinje/hodetelefon - mini-jack (1 foran) 1 x DisplayPort 1 x HDMI 2 x LAN (Gigabit Ethernet) 4 x USB 2.0 2 x seriell 1 x USB 3.0

Diverse
Tilleggsutstyr inkludert	VESA-monteringssett
Egenskaper	Uten vifte, UEFI BIOS
Monteringsgrensesnitt	100 x 100 mm, 75 x 75 mm
Tilpassede standarder	C-Tick, BSMI, CB, FCC, ETL, EMI, Directive 73/23/EWG, Directive 89/336/EWG

Strømforsyning
Enhetstype	Strømadapter
Nominell spenning	AC 120/230 V (50/60 Hz)
Strømtilførsel	65 watt

Operativsystem / Programvare
OS Medfølger	Uten operativsystem

Størrelser og vekt
Bredde	20 cm
Dybde	16.5 cm
Høyde	3.95 cm
Vekt	1.43 kg

The DS57U is a fanless slim PC with a robust 1.3 liter metal chassis and exceptional connectivity: HDMI, DisplayPort, Dual Intel LAN, USB 3.0/2.0, serial ports, audio, card reader and W-LAN. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, a 2.5" drive and a mSATA module. The built-in powerful processor with integrated HD graphics provides ample performance for fluent playback of video at 1080p Full HD quality. Thanks to its re-designed passive cooling architecture, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle Slim-PC Barebone DS57U is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Cloud Computing, Office PC and Multimedia.
