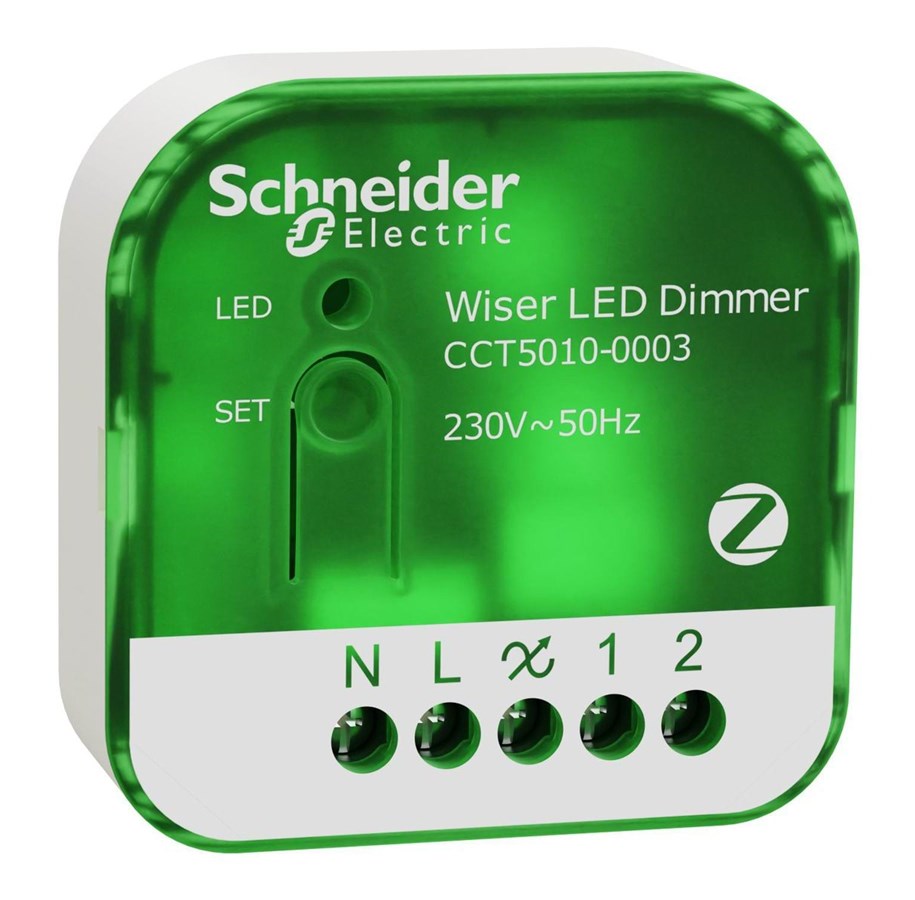

Schneider Electric Wiser Multiwire LED Dimmer Puck 200W

The Wiser Multiwire LED Dimmer Puck from Schneider Electric is a puck dimmer used to control and dim LED light sources and resistive or capacitive loads. Multiwire technology - it works with and zero conductor. It can be controlled remotely with the Wiser app and can be controlled locally with mechanical push buttons. The dimmer is built on and certified according to the ZigBee 3.0 protocol. It is equipped with green/red/orange LED programming indicator. Thanks to the Multiwire technology, it can operate LED loads below 1W/VA with the neutral conductor connected. The device has overheating protection, short circuit protection and automatic overload protection. The nominal operating voltage is 220-240VAC at 50/60 Hz. Power consumption in standby mode is less than 0.3W. The load handling of 230V LED light is 200W, incandescent lamp and 230V halogen lamp is 300W and halogen lamp with standard electronic transformer is 300W. This unit is designed for installation in either a PL or membrane box. The product dimensions are (W) 45mm x (H) 45mm x (D) 18.5mm and the product weight is 23g. The product's color is white/green. The ambient air temperature for operation is from -5°C up to +35°C. It achieves IP20 degree of protection. Wiser offers intelligent integration of various wireless devices and provides an enriching and energy-optimizing control thanks to the Wiser app. Wiser Gateway is required to use the app and to achieve full functionality. The product complies with CE, RoHS, Zigbee 3.0 certifications.
