Varenummer: 3497804

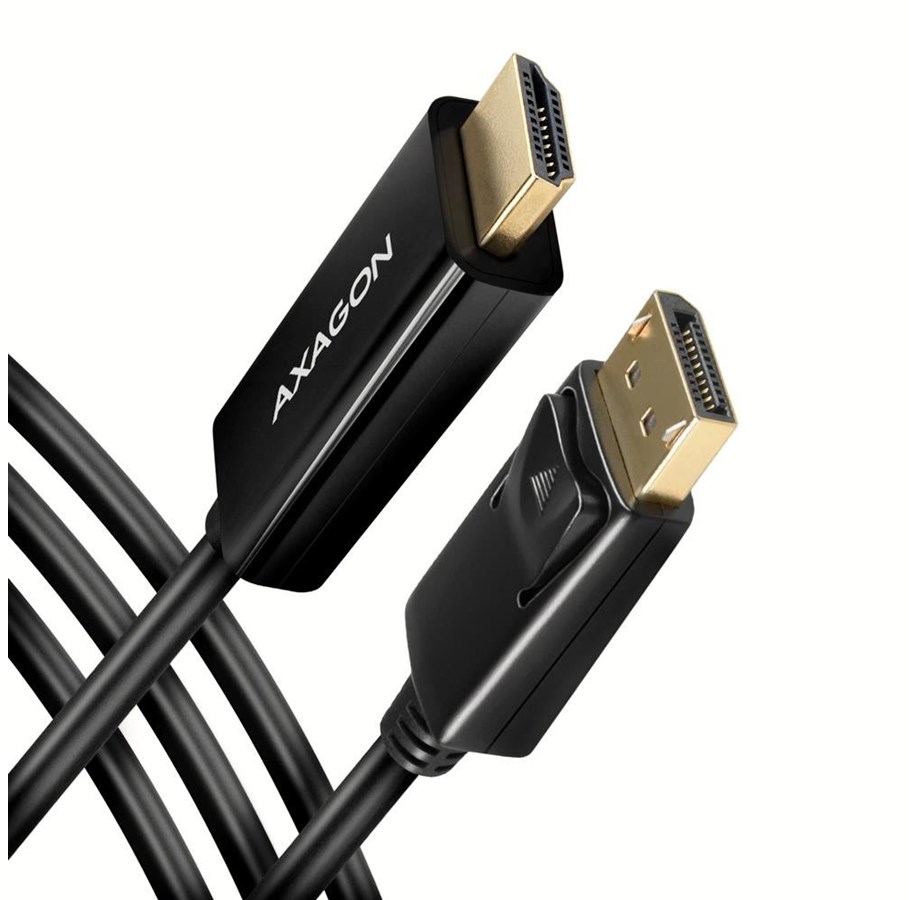

AXAGON RVD-HI14C2 videokabeladapter
Videokabeladapter AXAGON RVD-HI14C2 er en 1.8 m aktiv DisplayPort-til-HDMI-kabel for tilkobling av en HDMI-skjerm, TV eller projektor til en datamaskin med DisplayPort-utgang, med støtte for bilde og lyd opptil 4K/30Hz.
Den integrerte maskinvarekonverteren fungerer uten installasjon, oppsett eller ekstern strøm, og gjør video- og lydoverføring fra en datamaskin eller bærbar PC enkel i én kompakt kabelløsning.
- DisplayPort v1.2 hanninngang med lås
- HDMI v1.4b HDMI A hannutgang
- Støtter DCI 4K 4096 x 2160 ved 30Hz
- Støtter Full HD 1920 x 1080 opptil 120Hz
- Støtte for DDC, HPD og HDCP 1.4/2.2
- Enveis tilkobling fra DisplayPort til HDMI
Designet for enkel skjermutvidelse eller speiling, leverer den en ren DisplayPort-til-HDMI-tilkobling uten behov for separat HDMI-kabel eller konverter.
173,00 kr
138,40 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 3-5 dager til forsendelse
DisplayPort -> HDMI active cable - adapter AXAGON RVD-HI14C2 to connect HDMI monitor/TV/projector to the computer with the DisplayPort output.
The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.
Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. It is an ideal solution - you don't need a HDMI cable and converter. With this active cable everything is integrated into one compact unit.
The cable is only one-way, i.e. DisplayPort to HDMI, not otherwise.
Input:
• DisplayPort v1.2
• DP male connector with latch (M)
• connector latch control button
Output:
• HDMI v1.4b
• HDMI A (M) male connector
Supported resolutions:
Resolution and frequency depend on monitor and graphics adapter.
• max. 4096 x 2160 (19:10) @30Hz DCI 4K
• 3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
• 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
• 3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
• 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
• 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
• 2560 x 2048 (5:4) QSXGA
• 2560 x 1920 (4:3)
• 2560 x 1600 (16:10) WQXGA
• 2560 x 1440 (16:9) @60Hz WQHD
• 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
• 2048 x 1536 (4:3) QXGA
• 2048 x 1152 (16:9) QWXGA
• 1920 x 1440 (4:3)
• 1920 x 1200 (16:10) WUXGA
• 1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
• 1856 x 1392 (4:3)
• 1792 x 1344 (4:3)
• 1680 x 1050 (16:10) WSXGA+
• 1600 x 1200 (4:3) UXGA
• 1600 x 900 (16:9) HD+
• 1536 x 864 (16:9)
• 1440 x 900 (16:10) WXGA+
• 1400 x 1050 (4:3) SXGA+
• 1366 x 768 (16:9) HD
• 1360 x 768 (16:9) HD
• 1280 x 1024 (5:4) SXGA
• 1280 x 960 (4:3) SXGA-
• 1280 x 800 (16:10) WXGA
• 1280 x 768 (5:3) WXGA
• 1280 x 720 (16:9) HD/WXGA/720p
• 1280 x 600
• 1152 x 864 (4:3) XGA+
• 1024 x 768 (4:3) XGA
• 800 x 600 (4:3) SVGA
Other features:
• sound transfer support
• DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip
• supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
• HPD (Hot-Plug-Detect) support - communication sequence controlling the connection / disconnection of the device while running
• HDCP 1.4 and 2.2
• support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)
• power supply via bus - no external power is needed
• gold-plated connectors for perfect contact and oxidation limitation
• adapter dimensions 45 x 21 x 12 mm
• total cable length incl. connector 1.8 m
• weight only 70 g
Supported operating systems:
• All versions of MS Windows, Mac OS X, Linux and other operating systems.
• It is a pure hardware converter, the transfer is provided only by a cable chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.
Package contains:
• DisplayPort > HDMI cable length 1.8 m,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.
The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.
Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. It is an ideal solution - you don't need a HDMI cable and converter. With this active cable everything is integrated into one compact unit.
The cable is only one-way, i.e. DisplayPort to HDMI, not otherwise.
Input:
• DisplayPort v1.2
• DP male connector with latch (M)
• connector latch control button
Output:
• HDMI v1.4b
• HDMI A (M) male connector
Supported resolutions:
Resolution and frequency depend on monitor and graphics adapter.
• max. 4096 x 2160 (19:10) @30Hz DCI 4K
• 3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
• 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
• 3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
• 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
• 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
• 2560 x 2048 (5:4) QSXGA
• 2560 x 1920 (4:3)
• 2560 x 1600 (16:10) WQXGA
• 2560 x 1440 (16:9) @60Hz WQHD
• 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
• 2048 x 1536 (4:3) QXGA
• 2048 x 1152 (16:9) QWXGA
• 1920 x 1440 (4:3)
• 1920 x 1200 (16:10) WUXGA
• 1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
• 1856 x 1392 (4:3)
• 1792 x 1344 (4:3)
• 1680 x 1050 (16:10) WSXGA+
• 1600 x 1200 (4:3) UXGA
• 1600 x 900 (16:9) HD+
• 1536 x 864 (16:9)
• 1440 x 900 (16:10) WXGA+
• 1400 x 1050 (4:3) SXGA+
• 1366 x 768 (16:9) HD
• 1360 x 768 (16:9) HD
• 1280 x 1024 (5:4) SXGA
• 1280 x 960 (4:3) SXGA-
• 1280 x 800 (16:10) WXGA
• 1280 x 768 (5:3) WXGA
• 1280 x 720 (16:9) HD/WXGA/720p
• 1280 x 600
• 1152 x 864 (4:3) XGA+
• 1024 x 768 (4:3) XGA
• 800 x 600 (4:3) SVGA
Other features:
• sound transfer support
• DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip
• supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
• HPD (Hot-Plug-Detect) support - communication sequence controlling the connection / disconnection of the device while running
• HDCP 1.4 and 2.2
• support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)
• power supply via bus - no external power is needed
• gold-plated connectors for perfect contact and oxidation limitation
• adapter dimensions 45 x 21 x 12 mm
• total cable length incl. connector 1.8 m
• weight only 70 g
Supported operating systems:
• All versions of MS Windows, Mac OS X, Linux and other operating systems.
• It is a pure hardware converter, the transfer is provided only by a cable chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.
Package contains:
• DisplayPort > HDMI cable length 1.8 m,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.
Produsent
Varenummer
3497804
Model
RVD-HI14C2
Ean
8595247906083
Til produsentens hjemmeside
Kabellengde
1,8 m
Tilkobling 1
HDMI Type A (Standard)
Tilkobling 2
DisplayPort
Connector 1 kjønn
Hankjønn
Connector 2 kjønn
Hankjønn
Tilkobling 1 formfaktor
Rett
Tilkobling 2 formfaktor
Rett
HDMI-versjon
1.4b
HDCP
Ja
HDCP-versjon
1.4/2.2
DisplayPort-versjon
1.2
Maksimal oppløsning
4096 x 2160 piksler
Støttede grafikkoppløsninger
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1080, 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048, 3840 x 1200, 3840 x 2160, 4096 x 2160
Støttede videofunksjoner
600p, 720p, 800p, 900p, 960p, 1024p, 1080p, 1280p, 1440p, 1600p, 2160p
Maksimal oppdateringshastighet
120 Hz
Oppdateringsfrekvens ved maksimal oppløsning
30 Hz
Produktfarge
Svart
Kabeltype
Rund kabel
Plugg inn og spill
Ja
Omformertype
Aktiv
Opprinnelsesland
China
Støttede Windows operativsystemer
Ja
Støttede Mac operativsystemer
Ja
HDR-teknologi (High Dynamic Range)
High Dynamic Range 10 (HDR10)
Støttede Linux operativsystemer
Ja
Andre støttede operativsystemer
Ja
Samsvarssertifikat
RoHS, CE
Sertifisering
CE, RoHS
Vekt
70 g
Bredde
45 mm
Dybde
21 mm
Høyde
12 mm
Pakkebredde
195 mm
Pakkedybde
95 mm
Pakkehøyde
30 mm
Pakkevekt
119 g
Pakketype
Hengende boks
Antall per pakke
1 stykker
Bruksanvisning
Ja
Garantiperiode
3 år
Egenskaper
Kabellengde
1,8 m
Tilkobling 1
HDMI Type A (Standard)
Tilkobling 2
DisplayPort
Connector 1 kjønn
Hankjønn
Connector 2 kjønn
Hankjønn
Tilkobling 1 formfaktor
Rett
Tilkobling 2 formfaktor
Rett
HDMI-versjon
1.4b
HDCP
Ja
HDCP-versjon
1.4/2.2
DisplayPort-versjon
1.2
Maksimal oppløsning
4096 x 2160 piksler
Støttede grafikkoppløsninger
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1080, 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048, 3840 x 1200, 3840 x 2160, 4096 x 2160
Støttede videofunksjoner
600p, 720p, 800p, 900p, 960p, 1024p, 1080p, 1280p, 1440p, 1600p, 2160p
Maksimal oppdateringshastighet
120 Hz
Oppdateringsfrekvens ved maksimal oppløsning
30 Hz
Produktfarge
Svart
Kabeltype
Rund kabel
Plugg inn og spill
Ja
Omformertype
Aktiv
Opprinnelsesland
China
Støttede Windows operativsystemer
Ja
Støttede Mac operativsystemer
Ja
HDR-teknologi (High Dynamic Range)
High Dynamic Range 10 (HDR10)
Støttede Linux operativsystemer
Ja
Andre støttede operativsystemer
Ja
Sertifikater
Samsvarssertifikat
RoHS, CE
Sertifisering
CE, RoHS
Vekt og dimensjoner
Vekt
70 g
Bredde
45 mm
Dybde
21 mm
Høyde
12 mm
Datainnpakking
Pakkebredde
195 mm
Pakkedybde
95 mm
Pakkehøyde
30 mm
Pakkevekt
119 g
Pakketype
Hengende boks
Emballasjeinnhold
Antall per pakke
1 stykker
Bruksanvisning
Ja
Logistikk data
Garantiperiode
3 år
