Varenummer: 3403098

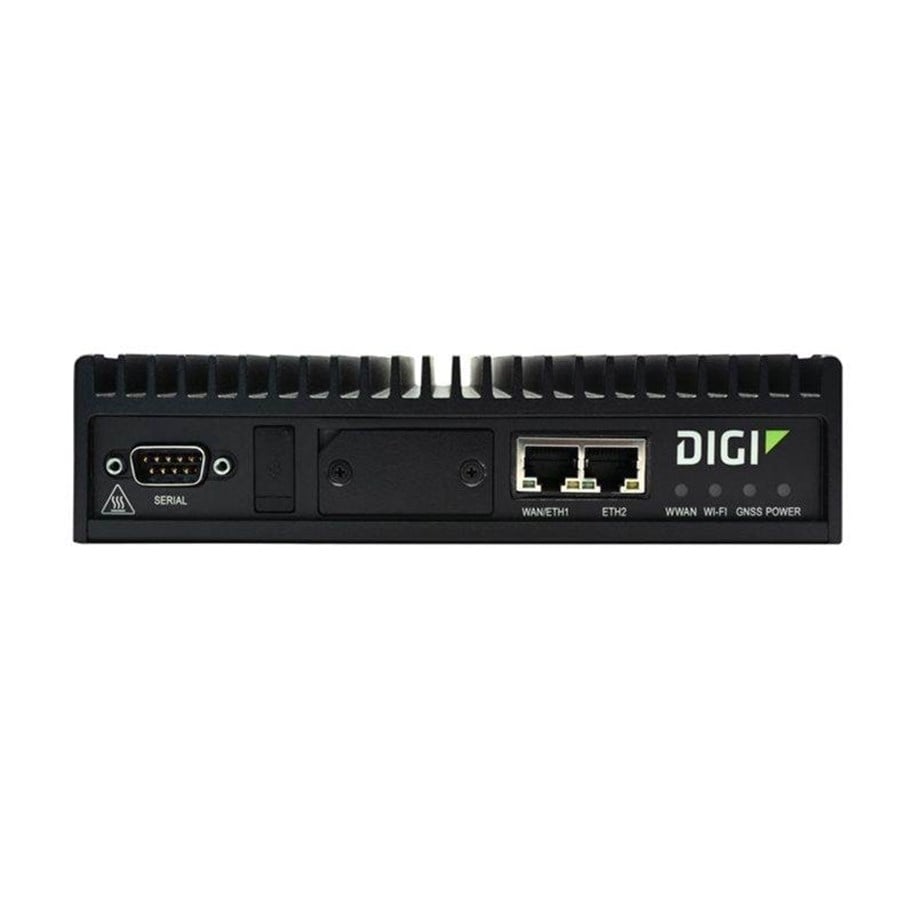

Digi TX40 - wireless router - WWAN - Wi-Fi 6 Bluetooth - desktop - Wireless router Wi-Fi 6

Trådløs ruter, WWAN 1GbE Dobbeltbånd AT&T, T-Mobile, Verizon Wireless, for P/N: 76002121, 76002136

27 230,00 kr 21 784,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.

The Digi TX40 is a versatile wireless cellular modem designed to meet demanding connectivity needs across various environments. Offering a robust chassis combined with built-in GPS, GLONASS, Beidou, and Galileo capabilities, this device ensures accurate positioning and navigation features for any application. It operates seamlessly in extreme conditions, with a minimum operating temperature of -34 °C and a maximum of 74 °C, while maintaining functionality in humidity levels ranging from 0% to 95% non-condensing. Equipped with extensive mobile broadband support, including 5G and LTE Advanced Pro along with multiple cellular bands, it provides reliable Internet access for smart devices. The networking capabilities include both wired and wireless connectivity options, supporting Ethernet, Fast Ethernet, Gigabit Ethernet, and Wi-Fi standards from 802.11a to ax. Security features such as VPN support, firewall, and various encryption algorithms enhance data safety, making the Digi TX40 an ideal choice for businesses needing reliable and secure network communication.

Produsent
Varenummer
3403098
Model
TX40-A500
Til produsentens hjemmeside
Produktbeskrivelse
Digi TX40 - trådløs ruter - WWAN - Wi-Fi 6, Bluetooth - stasjonær
Enhetstype
Trådløs ruter - trådløs mobilmodem
Utførelse
Stasjonær
Serviceleverandør
AT&T, T-Mobile, Verizon Wireless
Mobiltelefonsprotokoll
LTE Advanced Pro Cat 20, 5G
Mobilbånd
5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B3, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19
Antall WAN-porter
1
Datakjedeprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frekvensbånd
2,4 GHz / 5 GHz
Nettverks-/transportprotokoll
DHCP, UDP, TCP
Rutingprotokoll
OSPF, GRE, PPPoE, RIP-1, RIP-2, BGP, IGMP, VRRP
Protokoll for fjernstyrt administrasjon
SNMP 2, SNMP 3, HTTPS, CLI, SSH, SFTP, SCP, Syslog
Egenskaper
NAT-støtte, NAPT-støtte, VLAN støttet, Syslog-støtte, innholdsfiltrering, MAC-adressefiltrering, ATS, IPSec-klient, dynamisk DNS, DNS-server, Captive Portal, NTP-server, IP multicast, mDNS, OpenVPN-klient
Tilpassede standarder
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n
Dimensjoner (BxDxH)
19.8 cm x 13.8 cm x 4.4 cm
Vekt
1 kg
Designet for
P/N: 76002121, 76002136

Generelt

Enhetstype
Trådløs ruter
Serviceleverandør
AT&T, T-Mobile, Verizon Wireless
Utførelse
Stasjonær
Overføringsteknologi
Trådløs, kablet
Datakjedeprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frekvensbånd
2,4 GHz / 5 GHz
Nettverks-/transportprotokoll
DHCP, UDP, TCP
Rutingprotokoll
OSPF, GRE, PPPoE, RIP-1, RIP-2, BGP, IGMP, VRRP
Protokoll for fjernstyrt administrasjon
SNMP 2, SNMP 3, HTTPS, CLI, SSH, SFTP, SCP, Syslog
Krypteringsalgoritme
FIPS 197, WPA, WPA2, WPA3, FIPS 140-2, SSL 3.0, SHA-1, MD5, RSA, DES, 3DES, 256-bit AES, IKEv1, IKEv2
Autentifikasjons Metode
RADIUS, x.509 sertifikater, TACACS+
Egenskaper
NAT-støtte, NAPT-støtte, VLAN støttet, Syslog-støtte, innholdsfiltrering, MAC-adressefiltrering, ATS, IPSec-klient, dynamisk DNS, DNS-server, Captive Portal, NTP-server, IP multicast, mDNS, OpenVPN-klient
Tilpassede standarder
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, PTCRB, IEC 62368-1 CB Scheme, e-mark certified, FCC Part 15 B, IC, UKCA, MIL-STD-810H
Innebygde enheter
GPS, GLONASS, Beidou, Galileo
Statusindikatorer
Strøm, GNSS, Wi-Fi, WWAN, Ethernet-kobling/aktivitet

Kommunikasjoner

Type
Trådløs mobilmodem
Mobiltelefonsprotokoll
LTE Advanced Pro Cat 20, 5G
Mobilbånd
5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B3, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19

Ekspansjon / Tilkoplinger

Grensesnitt
LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Seriell: 1 x RS-232 - 9-pin D-Sub (DB-9)
USB 3.0: 1 x 9-pins USB-type A
Utvidelsesspor
2 (total) / 2 (ledig) x Mini-SIM

Strømforsyning

Strømenhet
Ekstern strømadapter

Mål og vekt

Bredde
19.8 cm
Dybde
13.8 cm
Høyde
4.4 cm
Vekt
1 kg

Miljøparametere

Min. driftstemperatur
-34 °C
Maks. Driftstemperatur
74 °C
Driftsfuktighet
0 - 95% (ikke-kondenserende)

Informasjon om kompatibilitet

Designet for
P/N: 76002121, 76002136
