Varenummer: 2908024

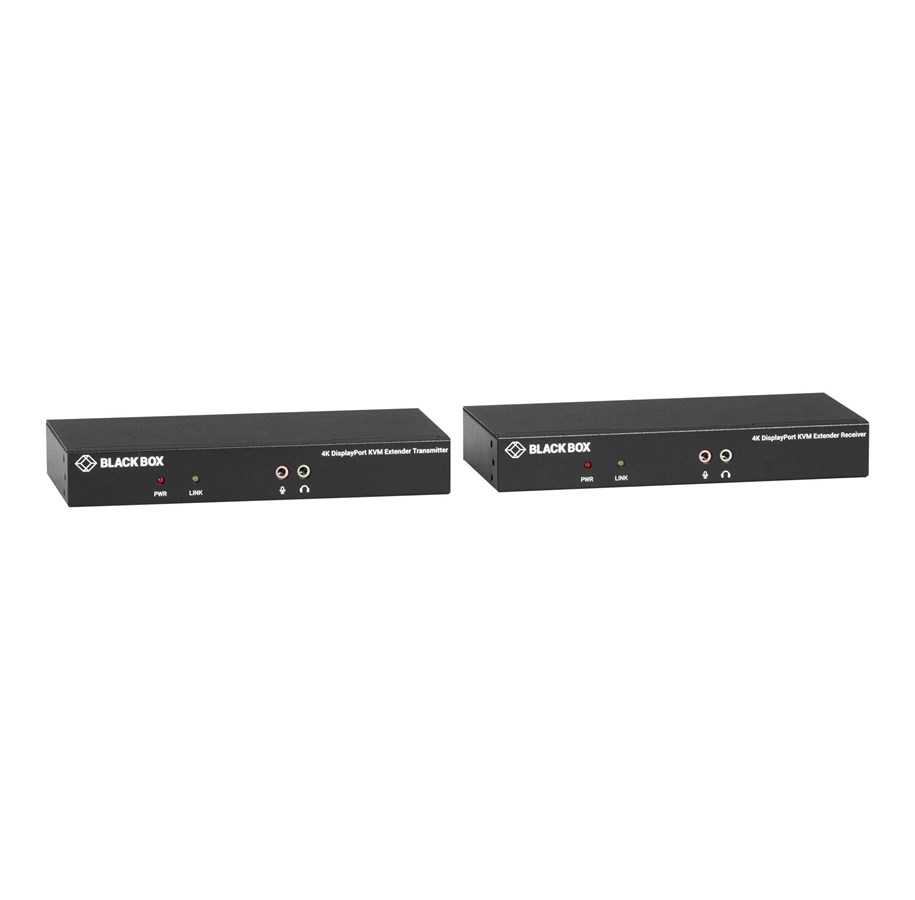

Black Box KVX Series KVM Extender over CATx - 4K Single-Head DisplayPort USB 2.0 Hub Serial Audio Local Video
4K, Single-Head, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video, Sender og mottaker, KVM / lyd / seriell / USB-svitsj, USB, opp til 100 m, 1U, TAA-samsvar
10 835,00 kr
8 668,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.
Lader følger med
Extend KVM signals up to 100m over CATx cable. The KVX Single Head DisplayPort KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). This extender also supports 4K video. PC connection cables are included with this product making it a solution that is ready to use right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations. KVX Single Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution. KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs. KVX is TAA compliant and backed by free lifetime technical support. KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or customers who require control of systems that are physically inaccessible placed in secure locations or in otherwise harsh environments. This can include command and control operations server management distribution monitoring or utilities process control centers.
Produsent
Varenummer
2908024
Model
KVXLCDP-100
Ean
822088142584
Til produsentens hjemmeside
Modell/Type
Sender og Mottaker
Tilkoblingsteknologi
Koblet med ledninger (ikke trådløs)
Maksimal overføring avstand
100 m
Kabeltyper som støttes
Cat6
Rack-montering
Ja
Maksimal digital oppløsning
3840 x 2160 piksler
Støttede oppløsninger
3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
Produktfarge
Svart
Materiale
Metall
Enkel installering
Ja
LED-indikatorer
Nettverk, Kraft indikator
Transmitter video tilkoblingstype
DisplayPort
Sender lokal video tilkobling
Ja
Sender lokal video tilkoblingstype
DisplayPort
RJ45 porter antall (sender)
1
Mottaker lokal videotilkoblingstype
DisplayPort
RJ45 porter antall (mottaker)
1
USB port type
USB Type-A
Antall USB 2.0-porter
4
RS-232-port
1
Antall RJ45-porter
1
Antall RJ11-porter
0
PC-lydinngang
Ja
PC-lyd ut
Ja
AC-adapter utgangsspenning
5 V
AD-adapter utgangsstrøm
2 A
Senderbredde
8,3 cm
Senderdybde
18 cm
Senderhøyde
2,1 cm
Sendervekt
372 g
Mottakerbredde
8,3 cm
Mottakerdybde
18 cm
Mottakerhøyde
2,1 cm
Mottakervekt
378 g
AC-adapter bunt
Ja
Kabler inkludert
Lyd (3ˌ5mm), DisplayPort, USB Type-A til USB Type-B
Driftstemperatur (T-T)
0 - 50 °C
Oppbevaringstemperaturomåde (Celsius)
-20 - 60 °C
Harmonisert system (HS)-kode
84733080
Egenskaper
Modell/Type
Sender og Mottaker
Tilkoblingsteknologi
Koblet med ledninger (ikke trådløs)
Maksimal overføring avstand
100 m
Kabeltyper som støttes
Cat6
Rack-montering
Ja
Maksimal digital oppløsning
3840 x 2160 piksler
Støttede oppløsninger
3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz, 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz, 1024x600@60Hz, 800x600@60Hz
Produktfarge
Svart
Materiale
Metall
Enkel installering
Ja
LED-indikatorer
Nettverk, Kraft indikator
Transmitter
Transmitter video tilkoblingstype
DisplayPort
Sender lokal video tilkobling
Ja
Sender lokal video tilkoblingstype
DisplayPort
RJ45 porter antall (sender)
1
Receiver
Mottaker lokal videotilkoblingstype
DisplayPort
RJ45 porter antall (mottaker)
1
Tilkoblingsevne
USB port type
USB Type-A
Antall USB 2.0-porter
4
RS-232-port
1
Antall RJ45-porter
1
Antall RJ11-porter
0
PC-lydinngang
Ja
PC-lyd ut
Ja
Energihåndtering
AC-adapter utgangsspenning
5 V
AD-adapter utgangsstrøm
2 A
Vekt og dimensjoner
Senderbredde
8,3 cm
Senderdybde
18 cm
Senderhøyde
2,1 cm
Sendervekt
372 g
Mottakerbredde
8,3 cm
Mottakerdybde
18 cm
Mottakerhøyde
2,1 cm
Mottakervekt
378 g
Emballasjeinnhold
AC-adapter bunt
Ja
Kabler inkludert
Lyd (3ˌ5mm), DisplayPort, USB Type-A til USB Type-B
Miljømessige forhold
Driftstemperatur (T-T)
0 - 50 °C
Oppbevaringstemperaturomåde (Celsius)
-20 - 60 °C
Logistikk data
Harmonisert system (HS)-kode
84733080
