Varenummer: 3453532

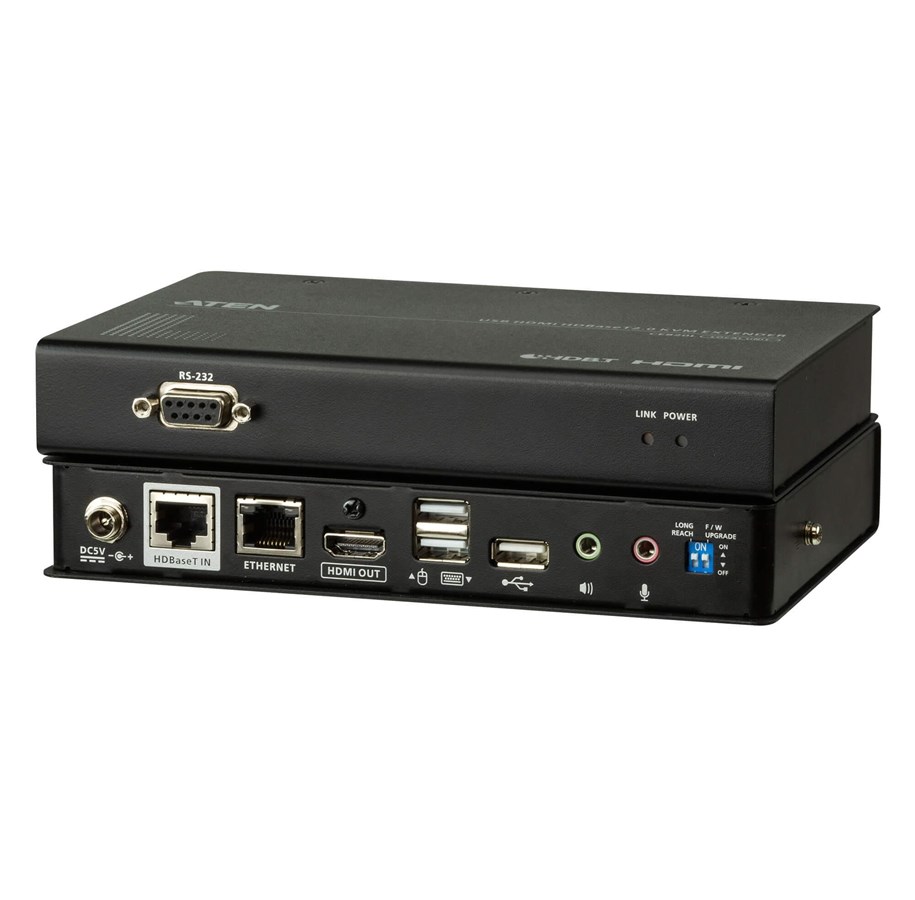

ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
KVM / lyd / seriell / USB-svitsj, HDBaseT 2.0, USB, opp til 150 m
7 383,00 kr
5 906,40 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 8-10 dager til forsendelse
The ATEN CE820-ATA KVM / audio / serial / USB extender is a comprehensive solution designed to meet the needs of demanding audiovisual and IT environments. This device supports high-resolution video up to 4096 x 2160 / 3840 x 2160 at 60 Hz, ensuring that high-quality content can be displayed without compromise. With a wide range of connectivity options, including HDMI, USB for keyboard and mouse, audio, and RS-232 interfaces, it offers flexibility for connecting various devices.In addition to its superior video capabilities, the CE820-ATA is built to protect your investment. It features advanced 15KV air-gap discharge and 8KV contact discharge ESD protectors, minimizing the risk of damage from electrical surges. The inclusion of HDBaseT Long Reach Mode allows for the extension of HDMI, USB, and control signals up to 150 m, making it perfect for large venues or situations where devices need to be remotely located. Encased in a durable metal housing, this extender is designed to withstand the rigors of daily use, ensuring a long service life and reliability.
Produsent
Varenummer
3453532
Model
CE820-ATA-G
Ean
4710469341823
Til produsentens hjemmeside
Produktbeskrivelse
ATEN CE820-ATA - KVM / lyd / seriell / USB-svitsj - HDBaseT 2.0
Enhetstype
KVM / lyd / seriell / USB-svitsj - USB
Produktformfaktor
Ekstern
Datakjedeprotokoll
HDBaseT 2.0
Maks. overføringsdistanse
150 m
Generelt
Enhetstype
KVM / lyd / seriell / USB-svitsj
Produktformfaktor
Ekstern
Nettverkstilknytning
Overføringsteknologi
Kablet
Datakjedeprotokoll
HDBaseT 2.0
Tastatur/mus-grensesnitt
USB
Maks. oppløsning
4096 x 2160 / 3840 x 2160 @ 60 Hz
Maks. overføringsdistanse
150 m
Statusindikatorer
Strøm, video, link
Egenskaper
3D-støtte, metallhus, HDBaseT Long Reach Mode, 8KV ESD Protector (kontaktutladning), 15KV ESD Protector (luftgaputladning), EDID Buffer, Deep Color-støtte
Tilpassede standarder
USB 2.0, HDCP 2.2
Ekspansjon / Tilkoplinger
Grensesnitt
1 x HDMI - 19-pins HDMI type A
2 x USB-tastatur / USB-mus - Type A
1 x USB 2.0 - Type A
1 x lyd - mini jack
1 x mikrofon - mini jack
1 x RS-232 - DB-9
2 x USB-tastatur / USB-mus - Type A
1 x USB 2.0 - Type A
1 x lyd - mini jack
1 x mikrofon - mini jack
1 x RS-232 - DB-9
Diverse
Medfølgende kabler
Tastatur / mus / video / lyd / USB-kabelsett - 1.8 m
Monteringssett
Inkludert
Strømforsyning
Strømenhet
Ekstern strømadapter
Størrelser og vekt
Dimensjoner (BxDxH) / vektdetaljer
Local unit: 18.2 cm x 12.19 cm x 2.87 cm / 630 g
Remote unit: 18.2 cm x 12.19 cm x 2.87 cm / 650 g
Remote unit: 18.2 cm x 12.19 cm x 2.87 cm / 650 g
Miljøparametere
Min. driftstemperatur
0 °C
Maks. Driftstemperatur
40 °C
Driftsfuktighet
0 - 80% RH (non-condensing)
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
