Varenummer: 2870827

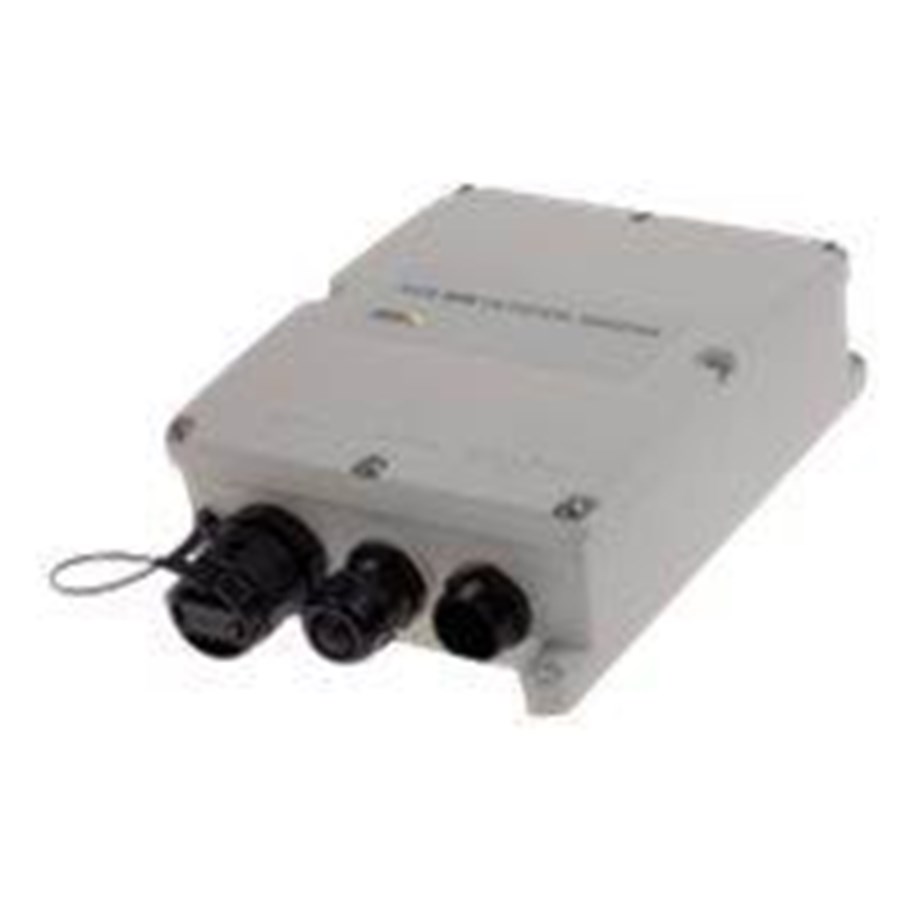

Axis Midspan

Strøminjektor, AC 100-240 V, 30 watt, for AXIS A1610, C1410, D3110, M3205, M4308, P1385, P3818, Q1615, W400; M55 Series; P37 Series

Les mer
3 590,00 kr 2 872,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 6-8 dager til forsendelse

The AXIS Midspan PoE injector by Axis Communications is a significant advancement in power supply technology. This device is engineered to facilitate the efficient conversion and distribution of power through a single RJ-45 connector. Its external form factor not only ensures a versatile installation but also contributes to a more organized and clutter-free environment. Ideal for a wide range of applications, the AXIS Midspan PoE injector is a reliable solution for powering devices, minimizing downtime, and reducing maintenance needs. Its compact design and efficient power delivery system make it an essential tool for any setup requiring a stable and reliable power source.

Produsent
Varenummer
2870827
Model
01944-001
Ean
7331021069473
Til produsentens hjemmeside
Produktbeskrivelse
AXIS Midspan - strøminjektor - 30 watt
Enhetstype
Strøminjektor - ekstern
Vekt
1.4 kg
Inngangsspenning
AC 100-240 V
Utgangsspenning
54 V
Effektkapasitet
30 watt
Utgangskontakter
1 x RJ-45
Dimensjoner (BxDxH)
14 cm x 6 cm x 17 cm
Designet for
AXIS A1610, C1310, C1410, D3110, M1134, M1135, M1137, M3064, M3065, M3066, M3067, M3068, M3075, M3115, M3116, M3205, M3206, M4308, M7104, P1377, P1378, P1385, P3245, P3719, P3818, P5654, P7304, Q1615, Q6074, Q6074 50, Q6074 60, Q6075, Q6075 50, Q6075 60, Q6154, Q9216, W400; M55 Series; P37 Series

Generelt

Enhetstype
Strøminjektor - ekstern

Strømenhet

Inngangsspenning
AC 100-240 V
Frekvens nødvendig
50 - 60 Hz
Detaljer om strømutgangskoblinger
1 x RJ-45
Utgangsspenning
54 V
Effektkapasitet
30 watt

Ekspansjon / Tilkoplinger

Grensesnitt
1 x Gigabit LAN - RJ-45

Diverse

Medfølgende kabler
Strømkabel
Egenskaper
Kan monteres på vegg
Tilpassede standarder
IEEE 802.3af, IEEE 802.3at, EN 61000-3-2, EN 61000-3-3, EN55024, CB, EN 61000-6-1, CCC, EN 61000-6-2, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, REACH, FCC Part 15 B Class A, KC, EN 50121-4, IEC 62236-4, VCCI Class A, AS/NZS CISPR 22, RCM, EN 55022 Class A, EN 55032 Class A, KCC KN32 Class A, KCC KN35, NEMA Type 4X, IP66, IP67

Miljøparametere

Min. driftstemperatur
-40 °C
Maks. Driftstemperatur
65 °C
Driftsfuktighet
10 - 100%

Størrelser og vekt

Bredde
14 cm
Dybde
6 cm
Høyde
17 cm
Vekt
1.4 kg

Informasjon om kompatibilitet

Designet for
AXIS A1601 Network Door Controller, A1610-B, C1310-E Network Horn Speaker, C1410, C1410 Network Mini Speaker, D2050-VE Network Radar Detector, D3110, M1134, M1134 Barebone, M1135, M1135 Barebone, M1135-E, M1137, M1137 Barebone, M1137-E, M3015 Network Camera, M3016 Network Camera, M3057-PLVE Network Camera, M3058-PLVE Network Camera, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3115-LVE, M3116-LVE, M3205-LVE, M3205-LVE Network Camera, M3206-LVE, M4206-LV Network Camera, M4206-V Network Camera, M4308-PLE, M5054, M5055, M5065, M5525-E PTZ Network Camera 50Hz, M7104 Video Encoder, P1265 Network Camera, P1280-E, P1367-E Barebone, P1368-E Barebone, P1375 Network Camera, P1375 Network Camera (Barebone), P1375-E, P1375-E Barebone, P1377, P1377 Barebone, P1377-LE, P1377-LE Barebone, P1378 Network Camera, P1378 Network Camera (Barebone), P1378-LE Network Camera, P1385-E, P1445-LE, P1447-LE, P1448-LE, P3235-LV Network Camera, P3235-LVE Network Camera, P3245-LV Network Camera, P3245-LVE Network Camera, P3245-V Network Camera, P3245-VE Network Camera, P3374-LV, P3374-V Network Camera, P3375-LV Network Camera, P3375-LVE Network Camera, P3375-V Network Camera, P3375-VE Network Camera, P3717-PLE, P3719-PLE, P3818-PVE, P5654-E 50 Hz, P5654-E 60 Hz, P5655-E 50 Hz, P5655-E 60 Hz, P7304 Video Encoder, P9106-V, Q1615 MkIII Network Camera, Q1645, Q1645-LE Network Camera, Q1647, Q1647-LE, Q3515-LV, Q3515-LVE, Q3517-SLVE, Q3518-LVE, Q3527-LVE, Q6054 Mk III 50 Hz, Q6054 Mk III PTZ Network Camera 50 Hz, Q6054-E Mk III 50 Hz, Q6054-E Mk III 60 Hz, Q6074, Q6074 50 Hz, Q6074 60 Hz, Q6074-E 50 Hz, Q6074-E 60 Hz, Q6075 50 Hz, Q6075 60 Hz, Q6075-E, Q6075-E 50 Hz, Q6075-E 60 Hz, Q6075-S, Q6075-S 60 Hz, Q6124-E PTZ Network Camera 50Hz, Q6124-E PTZ Network Camera 60Hz, Q6154-E 50Hz, Q6154-E 60Hz, Q9216-SLV Steel, Q9216-SLV White, T90D20 PoE IR-LED Illuminator, W400
AXIS M55 Series M5526-E
AXIS P37 Series P3727-PLE, P3737-PLE

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
