Varenummer: 3458155

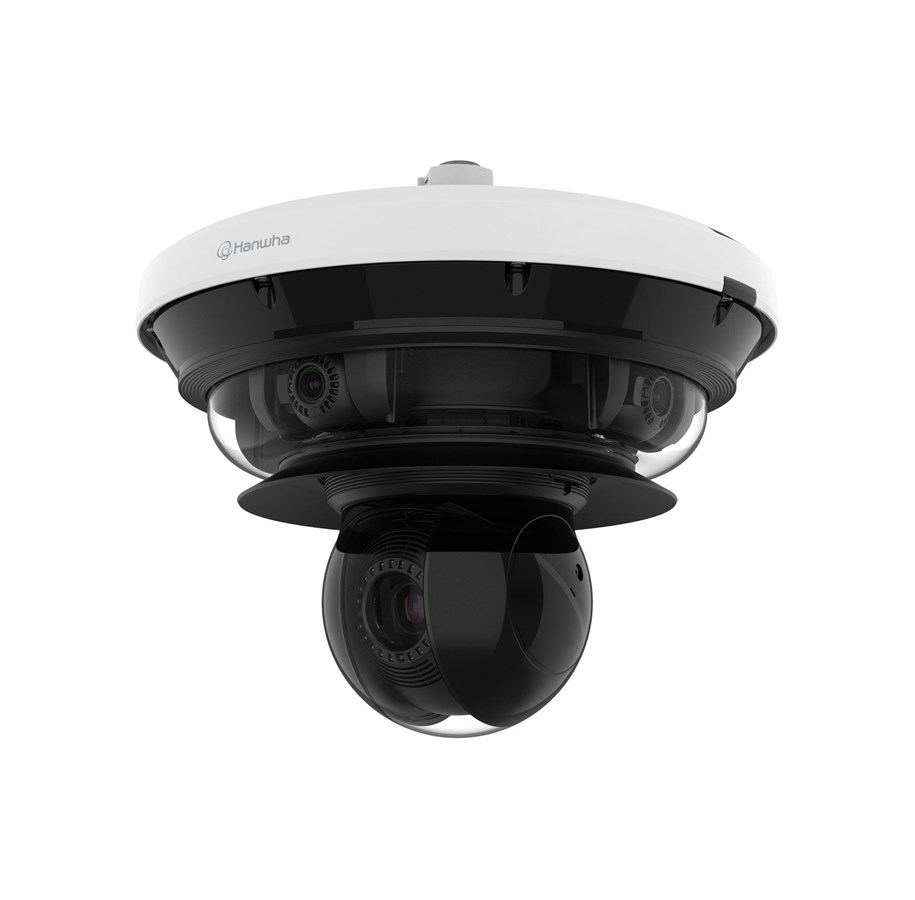

Hanwha Vision PNM-C34404RQPZ - network surveillance camera - turret
Nettverksovervåkingskamera, PTZ, lite tårn, utendørs, hærverkssikker, farge (Dag og natt), 3840 x 2160, GbE, MJPEG, H.264, H.265, PoE Plus Class 4
Varen er utgått
The Hanwha Vision PNM-C34404RQPZ network surveillance camera is engineered for exceptional performance in diverse environmental conditions. With its robust design, it can operate flawlessly in temperatures ranging from -40°C to 50°C and withstand humidity levels of up to 95% RH, making it an ideal choice for outdoor surveillance needs. This camera features a multi-sensor system with vari-focal lenses, allowing for precise focus adjustments and a wide range of focal lengths, ensuring clear and detailed images across various distances.Equipped with 1 GB of flash memory and support for multiple microSD card formats, it offers ample storage for high-definition video recordings. The camera's advanced networking capabilities, supporting a wide range of protocols and Ethernet connectivity, facilitate seamless integration into existing network infrastructures. Additionally, its comprehensive surveillance features, including infrared illumination for night vision up to 200 m, vandal-proof construction, and a suite of digital video capabilities, make the PNM-C34404RQPZ a versatile and reliable solution for securing premises.
Produsent
Varenummer
3458155
Model
PNM-C34404RQPZ
Ean
8801089224569
Produktbeskrivelse
Hanwha Vision PNM-C34404RQPZ - nettverksovervåkingskamera - lite tårn
Enhetstype
Nettverksovervåkingskamera - panorering / tipping / zoom - lite tårn - utendørs - hærverkssikker
Dimensjoner (BxDxH)
37.978 cm x 37.978 cm x 30.192 cm
Vekt
7.9 kg
Farge
Hvit, RAL 9003
Konnektivitetsteknologi
Kablet
Kamera
Farge - Dag og natt
Optisk zoom
40 x
Maks. oppløsning
3840 x 2160
Bildehastighet (maks.)
60 bilder pr. sekund
Bevegelsesdetektering
Ja
Type bildebrikke
4 x CMOS - 1/2.8"
CMOS - 1/2.8" - 2 MP
CMOS - 1/2.8" - 2 MP
Objektivsystem
4 x variabel fokallengde - 3.3 mm - 5.7 mm - focus free justering (minimumsavstand 1.3 m) - f/1.5-1.9 - fast irisblender
4.25 mm - 170 mm - automatisk justering (minimumsavstand 5 m) - f/1.6-4.95 - automatisk irisblender (DC)
4.25 mm - 170 mm - automatisk justering (minimumsavstand 5 m) - f/1.6-4.95 - automatisk irisblender (DC)
Minimumsbelysning
0.1 lux - farge - F1.5 - 30 IRE - lukker 1/30 sek
0.01 lux - S/H - F1.5 - 30 IRE - lukker 1/30 sek
0 lux - S/H - infrarøde LED på
0.05 lux - farge - F1.6 - 30 IRE - lukker 1/30 sek
0.005 lux - S/H - F1.6 - 30 IRE - lukker 1/30 sek
0.01 lux - S/H - F1.5 - 30 IRE - lukker 1/30 sek
0 lux - S/H - infrarøde LED på
0.05 lux - farge - F1.6 - 30 IRE - lukker 1/30 sek
0.005 lux - S/H - F1.6 - 30 IRE - lukker 1/30 sek
Panoreringsområde (grader)
Fra 0 til 360
Tippeområde (grader)
Fra 0 til 65
Grensesnitt
Ethernet 10Base-T/100Base-TX/1000Base-T
Spenning
PoE Plus Class 4
Egenskaper
Automatisk ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Extreme WDR, Samsung Super Noise Reduction (SSNR) V, WiseNR II, Defog, Digital Image Stabilization (DIS), Privacy Mask Function, forsterkningskontroll, hvitbalanse, Lens Distortion Compensation (LDC), antiflimring, bildevending, bildespeil, Hallway View, objektklassifisering, kjøretøytypeklassifisering, Vehicle Detection, ansiktspåvisning, skiltgjenkjenning, Best Shot Selector (BSS), Virtual Line-deteksjon, Defocus Detection, tukledetektering, tåkepåvisning, meldingsbilde for FTP, meldingsbilde for e-post, utløseropptak, Handover, autosporing, Variabel bitrate (VBR), Konstant bitrate (CBR), Unicast Streaming, Multicast Streaming, støtte for ONVIF (Profile S), støtte for ONVIF (Profile T), Smart Zoom
Miljøparametere (operativ)
-40 °C - 50 °C; 0 - 95% RH (non-condensing) relativ fuktighet
Generelt
Enhetstype
Nettverksovervåkingskamera
Formfaktor
Lite tårn
Konnektivitetsteknologi
Kablet
Bredde
37.978 cm
Dybde
37.978 cm
Høyde
30.192 cm
Vekt
7.9 kg
Kamera
Type
Farge - Dag og natt - panorering / tipping / zoom - utendørs - hærverkssikker
Digitalt Videoformat
MJPEG, H.264, H.265
Maks digitalvideooppløsning
3840 x 2160
Bevegelsesdetektering
Ja
Digital Zoom
32
Eksponeringsområde
2 sek - 1/12000 sek
Minimumsbelysning
0.1 lux - farge - F1.5 - 30 IRE - lukker 1/30 sek
0.01 lux - S/H - F1.5 - 30 IRE - lukker 1/30 sek
0 lux - S/H - infrarøde LED på
0.05 lux - farge - F1.6 - 30 IRE - lukker 1/30 sek
0.005 lux - S/H - F1.6 - 30 IRE - lukker 1/30 sek
0.01 lux - S/H - F1.5 - 30 IRE - lukker 1/30 sek
0 lux - S/H - infrarøde LED på
0.05 lux - farge - F1.6 - 30 IRE - lukker 1/30 sek
0.005 lux - S/H - F1.6 - 30 IRE - lukker 1/30 sek
Infrarøde LED-er
Ja
Infrarød avstand
200 m
Oppløsning på digitalt videoopptak
3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Bildehastighet (maks.)
60 bilder pr. sekund
RAM
8 GB
Flash-minne
1 GB
Egenskaper
Automatisk ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Extreme WDR, Samsung Super Noise Reduction (SSNR) V, WiseNR II, Defog, Digital Image Stabilization (DIS), Privacy Mask Function, forsterkningskontroll, hvitbalanse, Lens Distortion Compensation (LDC), antiflimring, bildevending, bildespeil, Hallway View, objektklassifisering, kjøretøytypeklassifisering, Vehicle Detection, ansiktspåvisning, skiltgjenkjenning, Best Shot Selector (BSS), Virtual Line-deteksjon, Defocus Detection, tukledetektering, tåkepåvisning, meldingsbilde for FTP, meldingsbilde for e-post, utløseropptak, Handover, autosporing, Variabel bitrate (VBR), Konstant bitrate (CBR), Unicast Streaming, Multicast Streaming, støtte for ONVIF (Profile S), støtte for ONVIF (Profile T), Smart Zoom
Bildesensor
Type
4 x CMOS 1/2.8"
2 MP CMOS 1/2.8"
2 MP CMOS 1/2.8"
Optisk konstruksjon
Objektivsystem
4 x variabel fokallengde - 3.3 mm - 5.7 mm - focus free justering (minimumsavstand 1.3 m) - f/1.5-1.9 - fast irisblender
4.25 mm - 170 mm - automatisk justering (minimumsavstand 5 m) - f/1.6-4.95 - automatisk irisblender (DC)
4.25 mm - 170 mm - automatisk justering (minimumsavstand 5 m) - f/1.6-4.95 - automatisk irisblender (DC)
Optisk zoom
40 x
Panorering
Bevegelsesområde (grader)
Fra 0 til 360
Hastighet (grader/sek)
Inntil 700
Tipping
Bevegelsesområde (grader)
Fra 0 til 65
Hastighet (grader/sek)
Inntil 500
Grensesnitt
Nettverksgrensesnitt
Ethernet 10Base-T/100Base-TX/1000Base-T
Nettverksprotokoller
IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, MQTT, EAP
Ekspansjon / Tilkoplinger
Porter
LAN/strøm - RJ-45
Støttede minnekort
microSD-kort, microSDHC-kort, microSDXC-kort
Krypteringsalgoritme
FIPS 140-2 Level 2
Diverse
Tilleggsutstyr inkludert
PoE-injektor
Tilpassede standarder
IP66, NEMA Type 4X, IK10, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, AS/NZS CISPR 32 Class A, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000
Farge
Hvit, RAL 9003
Strømforsyning
Strømforsyningskrav
PoE Plus Class 4
Strømenhet
45 watt
Miljøparametere
Min. driftstemperatur
-40 °C
Maks. Driftstemperatur
50 °C
Relativ fuktighet (operativ)
0 - 95% RH (non-condensing)
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
