Lanberg NT-0401 Network Lan Tester RJ45 RJ12 RJ11 Coaxial
Lanberg nettverkskabeltester er et uunnværlig og multifunksjonelt verktøy for enhver nettverksinstallatør. Den sparer betydelig tid ved å verifisere kontinuiteten til nettverkskabler, sjekke tilkoblinger og oppdage potensielle problemer som kortslutninger eller feil parforbindelser. Med dette verktøyet kan du teste telefonkabler med RJ11-kontakter, LAN-kabler (UTP, FTP, SFTP) med RJ45-plugger og koaksialkabler. Enheten består av en hovedtesterenhet og en fjernt erminator, slik at du enkelt kan validere tilkoblinger selv over lange kabelstrekk.
- Tester RJ45-, RJ12-, RJ11- og koaksialkabler
- Verifiserer raskt kabelkontinuitet og ledningskonfigurasjon
- Oppdager kortslutninger, brudd, kryssede par og omvendte par
- Har en langsom testfunksjon og to automatiske skannehastigheter
- Et uunnværlig verktøy for enhver nettverksinstallatør eller tekniker

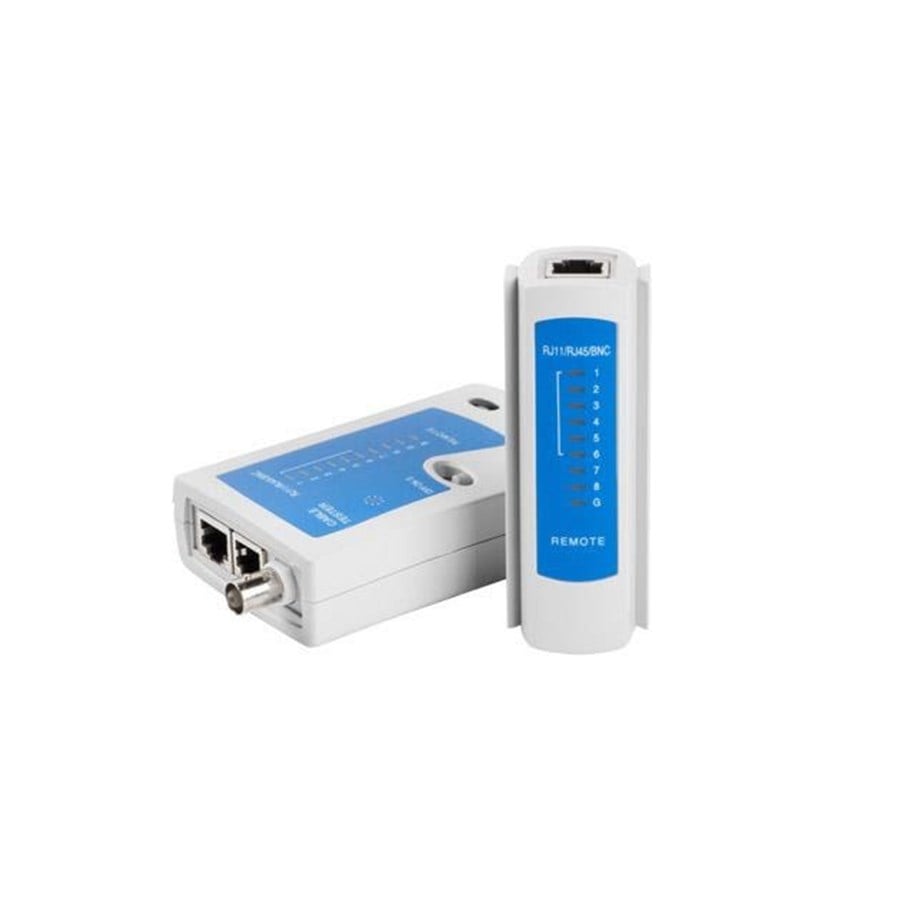

Lanberg network cable tester is a multifunctional device for testing cables in telecommunications networks. The device is an indispensable tool for every installer. It helps significantly save time in verifying pairs of network cables. The device is mainly used for measuring the continuity of LAN cabling and verifying connections along with detecting possible problems with short circuits or incorrect pair connections. With the help of this tool, you can test the connections of telephone cables terminated with RJ-11 connectors, UTP, FTP, SFTP cables terminated with RJ-45 plugs, and cables terminated with coaxial plugs. The device consists of two parts, which should be attached to the ends of the cable under test:
- Tester equipped with diodes, RJ-45, RJ-12/RJ-11, coaxial connectors and a switch.
- Terminator (attachments) equipped with diodes, RJ-45 and RJ-12/RJ-11 connectors.
The tester checks each wire separately using two speed modes and the correctness of the shield connection to the modular plug when testing FTP (shielded) cables. With the above device, you will find wires in most types of supported terminals like switches, routers, PCs, patch panels, flush-mounted sockets, surface-mounted sockets. The device has many practical functions such as:
- Automatic connection validation in RJ-45 and RJ-11 cables.
- Slow test function.
- Signaling of measurement and control with 9 LEDs.
- Two speed modes (automatic scan) with the possibility of setting normal speed and slow speed.
The tool will find application in telecoms, Internet cafes, engineering companies, Internet networks, electrical networks, server rooms, both in small and medium-sized companies. It will also prove useful in low-current installations such as cable TV networks, alarm systems, fire alarms, access control and CCTV and IP surveillance systems. The device can perform the following tests:
- Detection of faulty connections.
- Detection of short circuits and breaks in the wiring or cable.
- Detection of pair crossing.
- Detection of pair reversal.
