Varenummer: 3396619

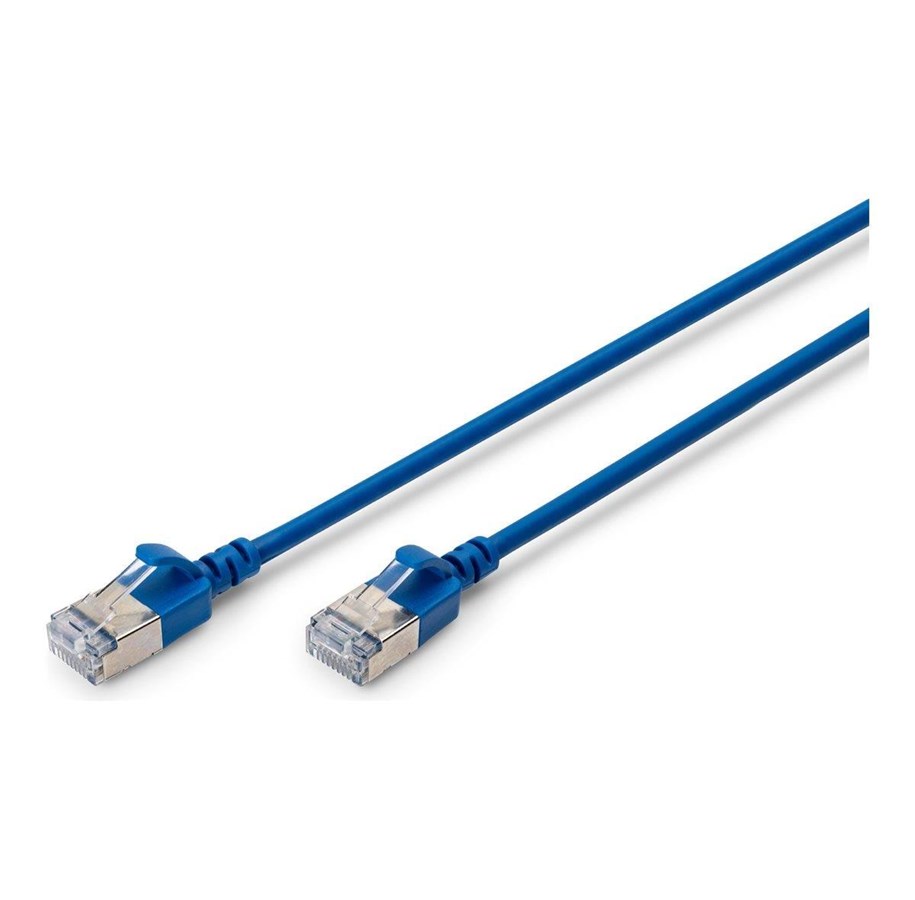

DIGITUS patch cable - 5 m - blue - Blå - 5m
Koblingskabel, RJ-45 (hann) til RJ-45 (hann), 5 m, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogenfri, slank, blå
136,00 kr
108,80 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 3-5 dager til forsendelse
The DIGITUS DK-1632-A-050S-B is a patch cable designed to meet a variety of networking needs. It features a F/FTP design that supports data transmission of up to 10 Gbps. Compliant with IEEE 802.3 standards, this CAT 6a cable is suitable for PoE+ applications, ensuring efficient power delivery alongside data transfer. Made with bare copper conductors, it offers a 1:1 pinout configuration and performance in demanding environments.Built to withstand up to 750 mating cycles, the cable is crafted from Low Smoke Zero Halogen (LSZH) and HDPE materials, providing a slim profile without compromising safety. With a tested frequency of up to 500 MHz and a bending radius of 57 mm, it offers flexibility for various installations. Operating in temperatures ranging from -20 °C to 60 °C, it adheres to multiple compliance standards for durability and reliability in high-performance networks.
Produsent
Varenummer
3396619
Model
DK-1632-A-050S-B
Ean
4016032498070
Til produsentens hjemmeside
Produktbeskrivelse
DIGITUS koblingskabel - 5 m - blå
Type
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengde
5 m
Diameter
3.8 mm
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Farge
Blå
Pakketype
Polypose
Generelt
Nettverkskabeltype
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Kappemateriale
Low Smoke Zero Halogen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengde
5 m
Diameter
3.8 mm
Farge
Blå
Tilkoblingsmuligheter
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Diverse
Tilpassede standarder
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - inntil 500 MHz
Pakkedetaljer
Polypose
Miljøparametere
Min. driftstemperatur
-20 °C
Maks. Driftstemperatur
60 °C
