Varenummer: 3394835

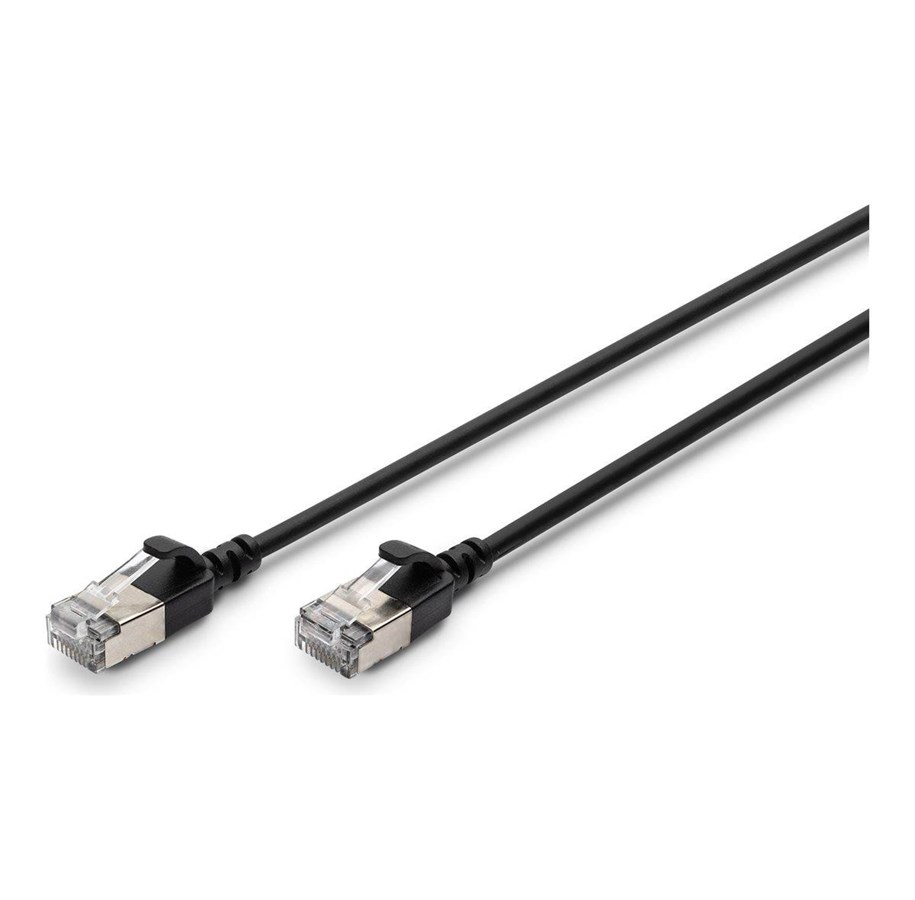

DIGITUS patch cable - 30 cm - black - Svart - 0.3m

Koblingskabel, RJ-45 (hann) til RJ-45 (hann), 30 cm, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogenfri, slank, svart

185,00 kr 148,00 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 4-6 dager til forsendelse

The DIGITUS DK-1632-A-003S-BL patch cable is designed for high-performance networking applications. This CAT 6a cable supports transmission speeds of up to 10 Gbps, making it an ideal choice for demanding environments. With its low smoke zero halogen (LSZH) jacket and bare copper conductors, it ensures safety and reliability while providing excellent signal integrity. It features a 1:1 pinout and is compliant with various international standards including IEEE 802.3, ensuring compatibility and performance consistency across different systems. Flexible and durable, this cable is built to withstand up to 750 mating cycles and operates effectively in a temperature range from -20°C to 60°C. Its slim design allows for easier installation in tight spaces, with a bending radius of just 57 mm. Furthermore, the cable is PoE+ ready, providing power and data over the same connection, enhancing efficiency in network setups. This combination of quality materials and engineering makes this patch cable an essential component for any high-speed networking project.

Produsent
Varenummer
3394835
Model
DK-1632-A-003S-BL
Ean
4016032498155
Til produsentens hjemmeside
Produktbeskrivelse
DIGITUS koblingskabel - 30 cm - svart
Type
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengde
30 cm
Diameter
3.8 mm
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Farge
Svart
Pakketype
Polypose

Generelt

Nettverkskabeltype
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Kappemateriale
Low Smoke Zero Halogen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengde
30 cm
Diameter
3.8 mm
Farge
Svart

Tilkoblingsmuligheter

Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann

Diverse

Tilpassede standarder
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - inntil 500 MHz
Pakkedetaljer
Polypose

Miljøparametere

Min. driftstemperatur
-20 °C
Maks. Driftstemperatur
60 °C
