Varenummer: 3394811

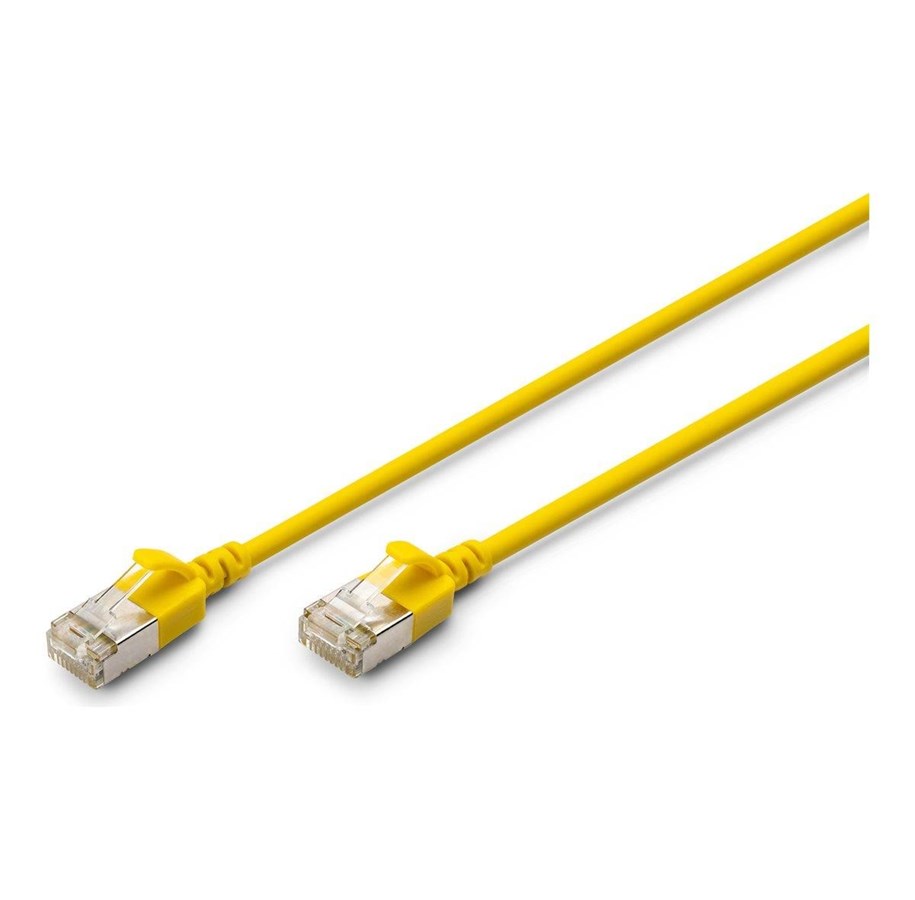

DIGITUS patch cable - 3 m - yellow - Gul - 3m

Koblingskabel, RJ-45 (hann) til RJ-45 (hann), 3 m, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogenfri, slank, gul

112,00 kr 89,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 3-5 dager til forsendelse

This DIGITUS patch cable is designed for performance with up to 10 Gbps speed and compliant with various standards including IEEE 802.3 and ANSI/TIA-568-C. The cable features bare copper construction, a slim profile, and is PoE+ ready, making it efficient for power transmission and data. Its flexibility allows for easy installation, while the low smoke zero halogen (LSZH) jacket ensures safety in environments where fire safety is a concern. With a tested frequency of up to 500 MHz, this CAT 6a patch cable supports high-frequency applications. The cable maintains a bending radius of 57 mm, making it ideal for tight spaces. Additionally, the robust connectors are designed for up to 750 mating cycles, ensuring durability for continuous usage in various setups while the environmental parameters cater to a wide range of operating conditions.

Produsent
Varenummer
3394811
Model
DK-1632-A-030S-Y
Ean
4016032498131
Til produsentens hjemmeside
Produktbeskrivelse
DIGITUS koblingskabel - 3 m - gul
Type
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengde
3 m
Diameter
3.8 mm
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Farge
Gul
Pakketype
Polypose

Generelt

Nettverkskabeltype
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Kappemateriale
Low Smoke Zero Halogen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Lengde
3 m
Diameter
3.8 mm
Farge
Gul

Tilkoblingsmuligheter

Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann

Diverse

Tilpassede standarder
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - inntil 500 MHz
Pakkedetaljer
Polypose

Miljøparametere

Min. driftstemperatur
-20 °C
Maks. Driftstemperatur
60 °C

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
