Varenummer: 3394820

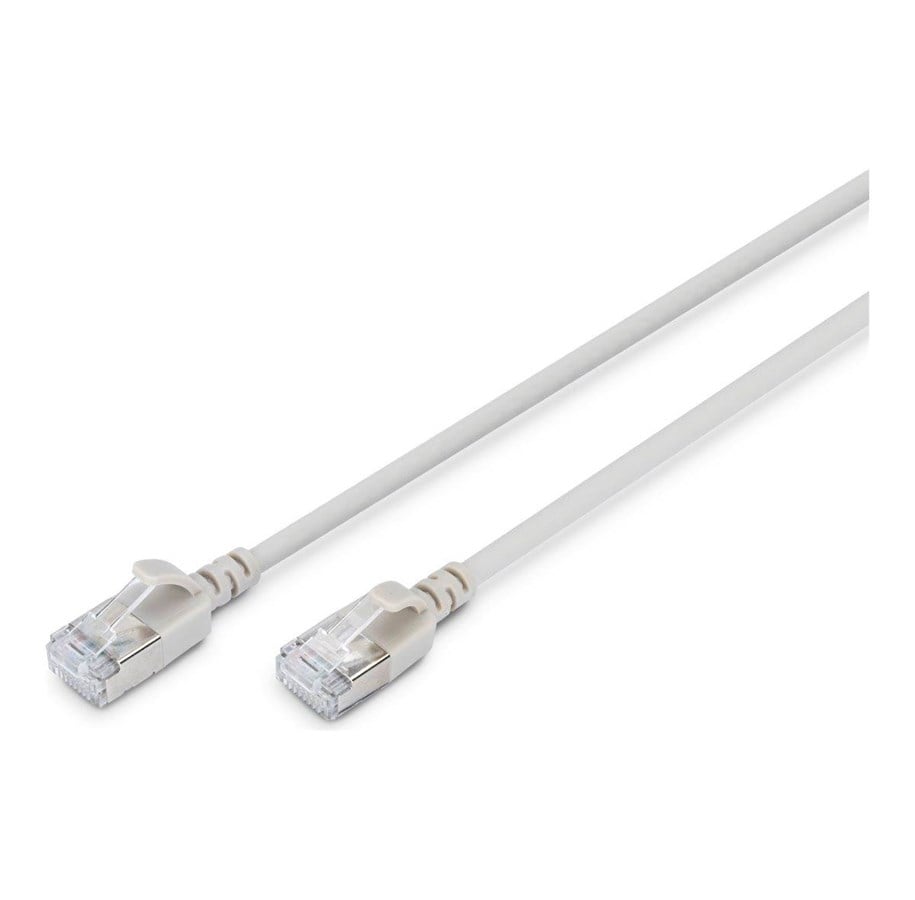

DIGITUS patch cable - 2 m - grey - Grå - 2m

Koblingskabel, RJ-45 (hann) til RJ-45 (hann), 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogenfri, slank, grå

103,00 kr 82,40 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 3-5 dager til forsendelse

The DIGITUS DK-1632-A-020S patch cable is designed for high-speed data transfer and reliable network connections. With a transmission speed of up to 10 Gbps and a tested frequency of 500 MHz, it meets the demands of modern networking environments while supporting PoE+ technology for power over Ethernet applications. Made from bare copper, this flexible cable features a slim design and has a minimum bending radius of 57 mm, ensuring ease of installation in tight spaces. The low smoke zero halogen jacket material offers a safe and environmentally friendly solution for cable management, making it suitable for various installations. Compliant with multiple standards including IEEE 802.3 and TIA/EIA-568-C, this CAT 6a cable provides high performance with a capability of up to 750 mating cycles. The T568B wiring scheme ensures compatibility with network devices, while its operational temperature range from -20°C to 60°C assures reliability in diverse environments. Choose the DIGITUS DK-1632-A-020S patch cable for a dependable networking solution that combines flexibility, performance, and safety.

Produsent
Varenummer
3394820
Model
DK-1632-A-020S
Ean
4016032497844
Til produsentens hjemmeside
Produktbeskrivelse
DIGITUS koblingskabel - grå
Type
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Kabel lengde
2 m
Diameter
3.8 mm
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Farge
Grå
Pakketype
Polypose

Generelt

Nettverkskabeltype
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Kappemateriale
Low Smoke Zero Halogen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Kabel lengde
2 m
Diameter
3.8 mm
Farge
Grå

Tilkoblingsmuligheter

Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann

Diverse

Tilpassede standarder
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - inntil 500 MHz
Pakkedetaljer
Polypose

Miljøparametere

Min. driftstemperatur
-20 °C
Maks. Driftstemperatur
60 °C
