Varenummer: 3396615

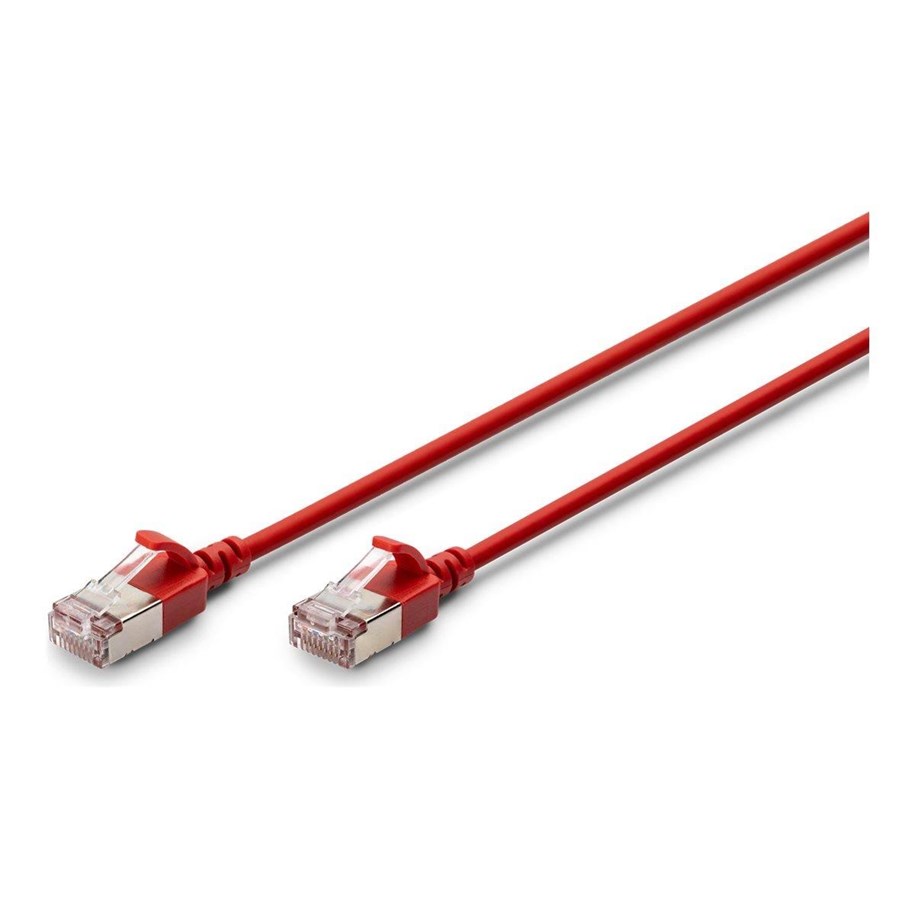

DIGITUS patch cable - 1.5 m - red - Rød - 1m
Koblingskabel, RJ-45 (hann) til RJ-45 (hann), 1.5 m, 3.8 mm, F/FTP, CAT 6a, IEEE 802.3, halogenfri, slank, rød
186,00 kr
148,80 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 4-6 dager til forsendelse
The DIGITUS DK-1632-A-015S-R patch cable offers connectivity with a design compliant with IEEE 802.3 standards. It features F/FTP technology that ensures reliable data transmission while supporting up to 10 Gbps speeds. With bare copper construction and a flexible design, it is tailored for ease of installation and durability over time, providing up to 750 mating cycles. This cable is suitable for environments that require a halogen-free solution with a slim profile, crafted from Low Smoke Zero Halogen (LSZH) materials to enhance safety and performance.Designed for both residential and commercial uses, this CAT 6a cable comes with a 1:1 pinout wiring scheme and meets various compliance standards including IEC 60332-1 and ISO/IEC 11801-1. Its ability to operate effectively within a temperature range of -20°C to 60°C makes it suitable for a variety of applications. The bending radius of 57 mm allows for flexible installations in tight spaces, ensuring reliable network performance and connectivity.
Produsent
Varenummer
3396615
Model
DK-1632-A-015S-R
Ean
4016032497905
Til produsentens hjemmeside
Produktbeskrivelse
DIGITUS koblingskabel - 1.5 m - rød
Type
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Kabel lengde
1.5 m
Diameter
3.8 mm
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Farge
Rød
Pakketype
Polypose
Generelt
Nettverkskabeltype
Koblingskabel - CAT 6a - IEEE 802.3
Teknologi
F/FTP
Koplingsskjema
T568B
Kappemateriale
Low Smoke Zero Halogen (LSZH) / HDPE
American Wire Gauge (AWG)
32/7
Egenskaper
Halogenfri, slank, PoE+ Ready, bar kobber, 1:1 stiftdiagram, inntil 10 Gbps, 750 paringssykluser, fleksibel, bending radius 57mm, Near-End Crosstalk (NEXT)
Kabel lengde
1.5 m
Diameter
3.8 mm
Farge
Rød
Tilkoblingsmuligheter
Kontakt
RJ-45 - hann
Kontakt (annen ende)
RJ-45 - hann
Diverse
Tilpassede standarder
IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1, IEEE 802.3, EN 60603-7-4, EIA/TIA 568B, TIA/EIA-364-21 - inntil 500 MHz
Pakkedetaljer
Polypose
Miljøparametere
Min. driftstemperatur
-20 °C
Maks. Driftstemperatur
60 °C
