Varenummer: 3383866

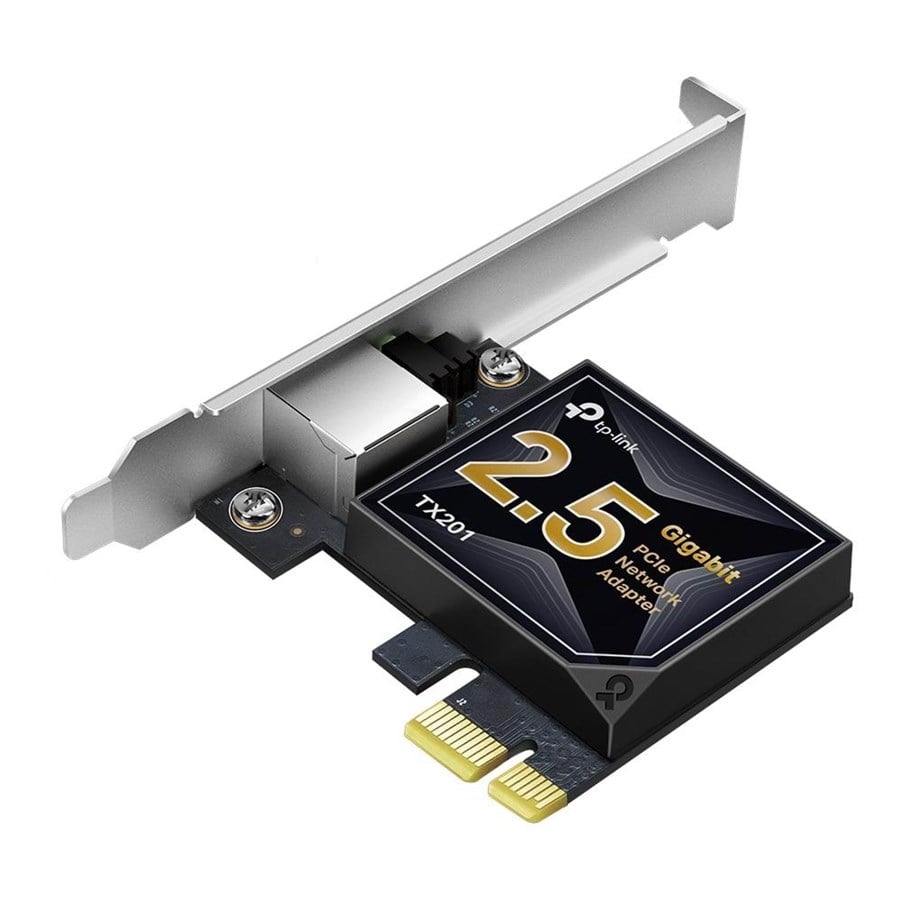

TP-Link TX201 2.5 Gigabit PCIe Network Adapter

TP-Link TX201 nettverkskort Intern Ethernet 2500 Mbit/s

251,00 kr 200,80 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Bestilt: forventet på lager d. 24.07.2026

All in Seconds with Blazing Fast 2.5G Speeds

Incredible 2.5G Networking

2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

Household Storage, Share in Seconds

For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

2.5G Extremely Fast Internet Response

With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Versatile, Multi-Speed Compatibility

2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.

QoS Support

Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management.

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Easy Setup

Simple software installation with the intuitive Utility on the provided CD.

Comprehensive System Support

Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.

Produsent
Varenummer
3383866
Model
TX201
Ean
4897098687833
Til produsentens hjemmeside
Kontakt produsenten
Tilkoblingsteknologi
Koblet med ledninger (ikke trådløs)
Vertsgrensesnitt
PCI Express
Videoopptaksgrensesnitt
Ethernet
Antall ethernets-/bredbåndstilkoblinger (RJ-45)
1
PCI-versjon
2.1
Maksimal dataoverføringshastighet
2500 Mbit/s
Nettverksstandard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet/bredbåndsforbindelse
Ja
Ethernet-grensesnittype
2.5 Gigabit Ethernet
Ethernet LAN dataoverføringshastigheter
10,100,1000,2500 Mbit/s
Wake-on-LAN-forberedt
Ja
Full tosidig
Ja
Intern
Ja
Komponent for
PC /Laptop
Produktfarge
Svart, Grå
LED-indikatorer
Aktivitet, Nettverk
Støttede Windows operativsystemer
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Støttede Linux operativsystemer
Ja
Støttede server-operativsystemer
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Driftstemperatur (T-T)
0 - 40 °C
Relativ luftfuktighet under drift (H-H)
10 - 90%
Lagringsrelativ fuktighet
5 - 90%
Bredde
120,8 mm
Dybde
21,5 mm
Høyde
98,2 mm
Pakkebredde
201,5 mm
Pakkedybde
152,5 mm
Pakkehøyde
41,5 mm
Pakkevekt
170 g
Monteringsbeslag inkludert
Ja
Ressurs-CD
Ja
Guide for hurtiginstallering
Ja
Samsvarssertifikat
RoHS, Federal Communications Commission (FCC), CE
Bærekraftsamsvar
Ja

Tilkoblingsevne

Tilkoblingsteknologi
Koblet med ledninger (ikke trådløs)
Vertsgrensesnitt
PCI Express
Videoopptaksgrensesnitt
Ethernet
Antall ethernets-/bredbåndstilkoblinger (RJ-45)
1
PCI-versjon
2.1

Nettverksbygging

Maksimal dataoverføringshastighet
2500 Mbit/s
Nettverksstandard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Ethernet/bredbåndsforbindelse
Ja
Ethernet-grensesnittype
2.5 Gigabit Ethernet
Ethernet LAN dataoverføringshastigheter
10,100,1000,2500 Mbit/s
Wake-on-LAN-forberedt
Ja
Full tosidig
Ja

Design

Intern
Ja
Komponent for
PC /Laptop
Produktfarge
Svart, Grå
LED-indikatorer
Aktivitet, Nettverk

Systemkrav

Støttede Windows operativsystemer
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Støttede Linux operativsystemer
Ja
Støttede server-operativsystemer
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Miljømessige forhold

Driftstemperatur (T-T)
0 - 40 °C
Relativ luftfuktighet under drift (H-H)
10 - 90%
Lagringsrelativ fuktighet
5 - 90%

Vekt og dimensjoner

Bredde
120,8 mm
Dybde
21,5 mm
Høyde
98,2 mm

Datainnpakking

Pakkebredde
201,5 mm
Pakkedybde
152,5 mm
Pakkehøyde
41,5 mm
Pakkevekt
170 g

Emballasjeinnhold

Monteringsbeslag inkludert
Ja
Ressurs-CD
Ja
Guide for hurtiginstallering
Ja

Tekniske detaljer

Samsvarssertifikat
RoHS, Federal Communications Commission (FCC), CE

Bærekraft

Bærekraftsamsvar
Ja

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
