Varenummer: 3014921

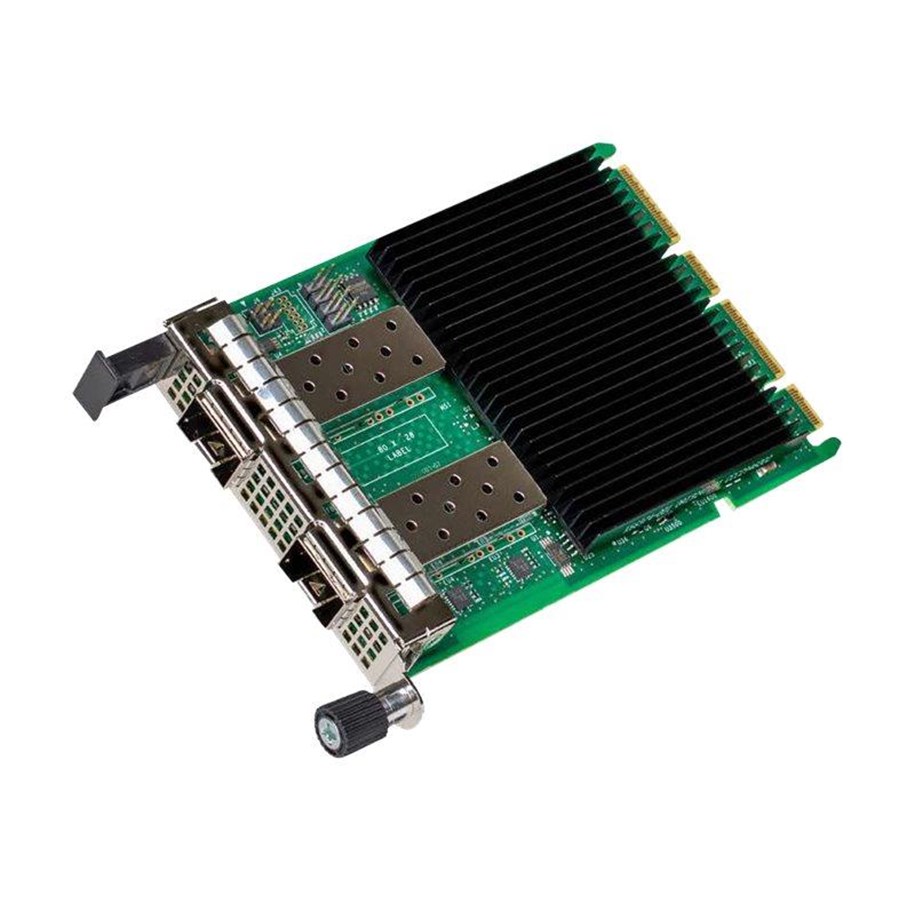

Lenovo ThinkSystem Intel E810-DA2

Nettverksadapter, OCP 3.0, 10/25 Gigabit SFP28 x 2, for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node

Les mer
3 900,00 kr 3 120,00 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 7-9 dager til forsendelse

The ThinkSystem Intel E810-DA2 10/25GbE SFP28 network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two 25GbE SFP28 ports and key performance optimizations, the E810-XXVDA2 supports solutions across Cloud, Enterprise, and Communications.

Produsent
Varenummer
3014921
Model
4XC7A08294
Ean
0889488518470
Til produsentens hjemmeside
Kontakt produsenten
Produktbeskrivelse
Lenovo ThinkSystem Intel E810-DA2 - nettverksadapter - OCP 3.0 - 10/25 Gigabit SFP28 x 2
Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort
Grensesnitts(databuss)-type
Open Compute Project mezzanine (OCP) 3.0
PCI-spesifikasjonsrevidering
PCIe 4.0
Porter
10/25 Gigabit SFP28 x 2
Dimensjoner (BxDxH)
7.6 cm x 11.5 cm
Datakjedeprotokoll
10GbE, 25GbE
Dataoverføringshastighet
25 Gbps
Nettverks-/transportprotokoll
iSCSI, TCP/IP, iWARP
Systemkrav
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2
Designet for
ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node; MX3331-H Certified Node; VX2330 Appliance; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5530 Appliance; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX75XX Certified Node

Generelt

Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort
Grensesnitts(databuss)-type
Open Compute Project mezzanine (OCP) 3.0
PCI-spesifikasjonsrevidering
PCIe 4.0

Nettverkstilknytning

Porter
10/25 Gigabit SFP28 x 2
Overføringsteknologi
Kablet
Datakjedeprotokoll
10 Gigabit Ethernet, 25 Gigabit Ethernet
Dataoverføringshastighet
25 Gbps
Nettverks-/transportprotokoll
iSCSI, TCP/IP, iWARP
Egenskaper
Root of trust-maskinvare, UEFI-støtte, VMDq, SR-IOV, VMLB, Advanced Packet Filtering, VXLAN, RDMA-støtte, MCTP over SMBus

Ekspansjon / Tilkoplinger

Grensesnitt
2 x 10Gb Ethernet/25Gb Ethernet - SFP28

Diverse

Tilpassede standarder
FCC Subpart B, UL, VCCI, BSMI, RCM, KCC, IEEE 1588

Programvare / Systemkrav

OS påkrevd
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2

Mål og vekt

Bredde
7.6 cm
Dybde
11.5 cm

Miljøparametere

Min. driftstemperatur
0 °C
Maks. Driftstemperatur
55 °C

Informasjon om kompatibilitet

Designet for
Lenovo ThinkAgile MX3330-F Appliance 7D19
Lenovo ThinkAgile MX3330-H Appliance 7D19
Lenovo ThinkAgile MX3331-F Certified Node 7D67
Lenovo ThinkAgile MX3331-H Certified Node 7D67
Lenovo ThinkAgile VX2330 Appliance 7Z62
Lenovo ThinkAgile VX3330 Appliance 7Z62
Lenovo ThinkAgile VX3331 7Z62
Lenovo ThinkAgile VX3530-G Appliance 7Z63
Lenovo ThinkAgile VX3575-G Integrated System 7D43
Lenovo ThinkAgile VX5530 Appliance 7Z63
Lenovo ThinkAgile VX5575 Integrated System 7D43
Lenovo ThinkAgile VX7330-N Appliance 7Z62
Lenovo ThinkAgile VX7530 Appliance 7Z63
Lenovo ThinkAgile VX7531 Certified Node 7Z63
Lenovo ThinkAgile VX7575 Integrated System 7D43
Lenovo ThinkAgile VX7576 Certified Node 7D43
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71
Lenovo ThinkSystem SR645 7D2X, 7D2Y
Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73
Lenovo ThinkSystem SR665 7D2W
Lenovo ThinkSystem SR670 V2 7Z22, 7Z23
