Varenummer: 3414327

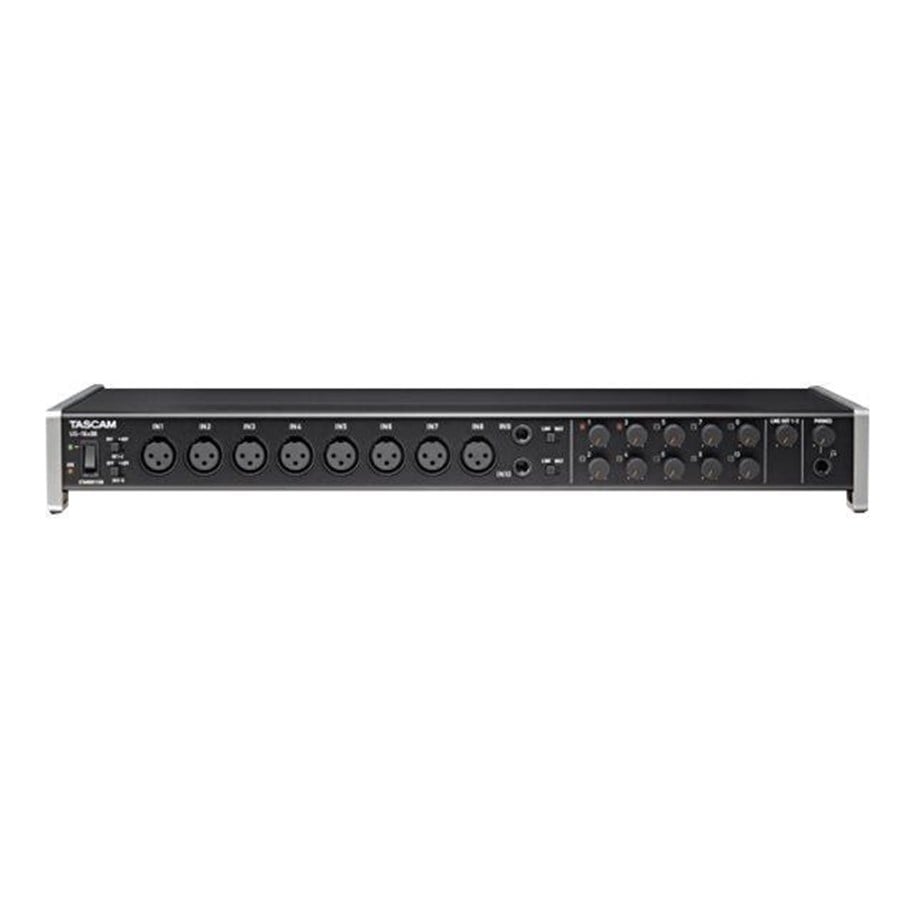

Tascam US-16x08 - audio interface

Lydgrensesnitt, 24-bit, 96 kHz, stereo, USB 2.0

4 613,00 kr 3 690,40 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 8-10 dager til forsendelse

The TASCAM US-16x08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used stand alone as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple's iPad. MIDI input and output are also available on the rear panel.

Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes analog I/O for almost any music recording application.

Produsent
Varenummer
3414327
Model
US-16x08
Ean
4907034124640
Til produsentens hjemmeside
Produktbeskrivelse
Tascam US-16x08 - lydgrensesnitt - USB 2.0
Enhetstype
Lydgrensesnitt
Utførelse
Ekstern
Grensesnittype
USB 2.0
Dimensjoner (BxDxH)
44.5 cm x 5.9 cm x 21.9 cm
Vekt
2.8 kg
Lydmodus
Stereo
DAC-oppløsning
24-bit
Samplingsfrekvens
44.1 kHz (min) - 96 kHz (maks.)
Systemkrav
Microsoft Windows 7 (32/64 bits) SP1, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks, Apple iOS 7 eller nyere

Generelt

Enhetstype
Lydgrensesnitt
Formfaktor
Ekstern
Grensesnittype
USB 2.0
Bredde
44.5 cm
Dybde
5.9 cm
Høyde
21.9 cm
Vekt
2.8 kg

Lydutgang

Lydmodus
Stereo
DAC-oppløsning
24-bit
Samplingsfrekvens
44.1 kHz (min) - 96 kHz (maks.)
Antall inngangskanaler
16
Antall utgangskanaler
8
Funksjoner
Ultra High Definition Discrete Architecture (Ultra-HDDA)

Ekspansjon / Tilkoplinger

Grensesnitt
1 x USB 2.0 - 4-pins USB-type B
8 x lydinnlinje - 3-pins XLR
8 x mikrofon - 6,3 mm-stereojakk
8 x hodetelefon - 6,3 mm-stereojakk
1 x MIDI-utgang - 5 pin DIN
1 x MIDI-inngang - 5 pin DIN

Diverse

Tilleggsutstyr inkludert
Monteringssett
Medfølgende kabler
1 x USB-kabel
Tilpassede standarder
RoHS

Programvare / Systemkrav

OS påkrevd
Microsoft Windows 7 (32/64 bits) SP1, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple OS X 10.9 Mavericks, Apple iOS 7 eller nyere
Systemkravdetaljer
Windows 7 SP1 eller nyere - 2 GHz - RAM 2 GB
MacOS X 10.8 eller nyere - 2 GHz - RAM 2 GB

Miljøparametere

Min. driftstemperatur
5 °C
Maks. Driftstemperatur
35 °C
