Varenummer: 3419374

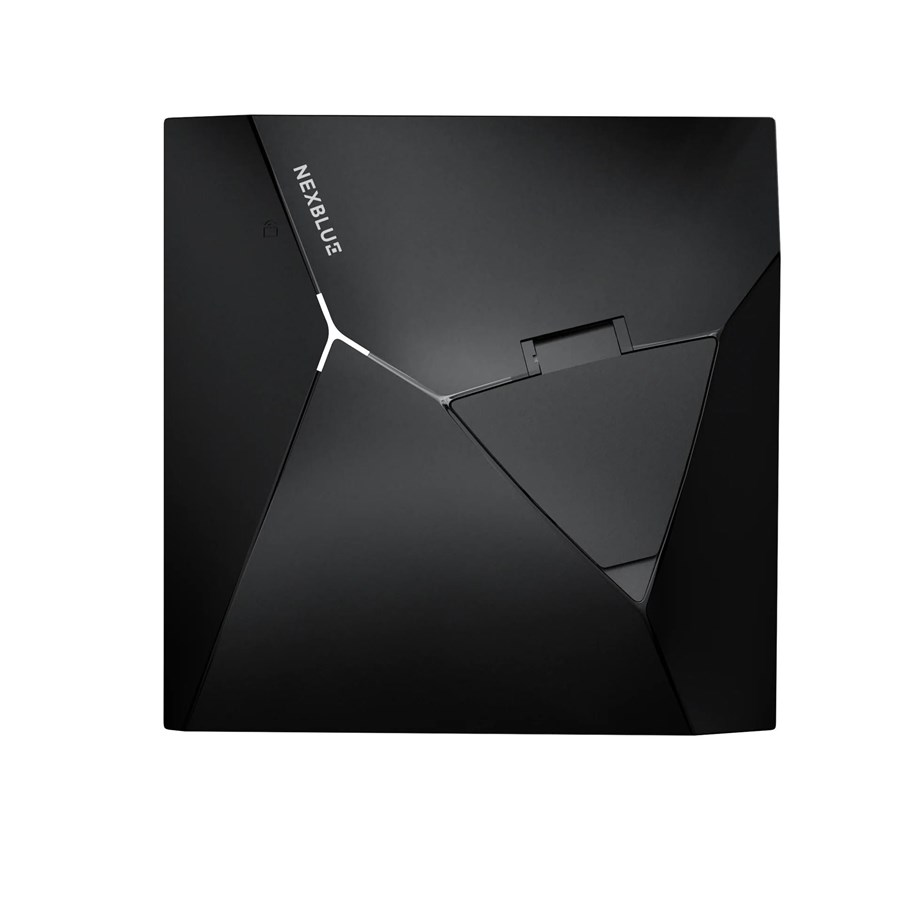

NexBlue Edge 2 Charging Box 22 kW Type 2 Black

The NexBlue Edge 2 is the updated version of the Edge, Nexblue’s award-winning home charger. In addition to being universal and delivering up to 22kW of energy, the Edge 2 can provide bidirectional capacity, local and cloud-based load and phase balancing, and groundbreaking solar charging features. This powerful charger is everything you need and more for home and small construction site installations. It pairs easily with the NexBlue Zen to support dynamic load balancing.

Please note that the charging box must be installed and removed by an authorized installer, otherwise the warranty will be void.
Les mer
På lager
6 826,00 kr 5 460,80 kr eksl. mva
Gratis frakt (privatkunde)
3 stk. På lager - 1-3 dager til levering

For å se dette innholdet må du akseptere cookies.

Endre informasjonskapselinnstillinger

Specifications:

  • IP ​​class: IP 54
  • Dimensions: 235 x 230 x 107 mm
  • Weight: 2,3 kg
  • IK class: IK 10
  • Number of phases: 6 A 1 phase to 32 A 3 phase
  • Max. charging power: 22 kW
  • Vehicle connection: Type 2
  • Connection: WiFi, 4G, Ethernet
  • OCPP: O CPP 1.6-J & 2.0.1
  • Earth-fault protection: RDC-DD (6 mA DC) according to IEC 62955 + 30 mA AC according to IEC 60947-2
  • Operating temperature: -30 °C to +50 °C
  • Warranty: 5 years

The NexBlue Edge 2 is the updated version of the Edge, Nexblue’s award-winning home charger. In addition to being universal and delivering up to 22 kW of energy, the Edge 2 can provide bidirectional capacity, local and cloud-based load and phase balancing, and groundbreaking solar charging features. This powerful charger is everything you need and more for home and small construction site installations. It pairs easily with the NexBlue Zen to support dynamic load balancing.

The charging box meets all safety requirements related to product and installation standards. Tested in-house and by third-party accredited technical monitoring organizations.

The Nexblue Edge is updated over the air (Wi-Fi or 4G) and has hardware to support all types of electric vehicles, grids and charging, and offers several smart features directly in the mobile app.

Schedule charging, smart charging according to spot prices, load balancing, anti-theft/locking of charging cable in the charging box, start charging via app or RFID and much more.

Included:

  • A Nexblue Edge 2 charger
  • Installation kit
  • An installation and user manual
  • A Nexblue RFID card

Produsent
Varenummer
3419374
Model
10956
Ean
5419980539403
