Varenummer: 3391593

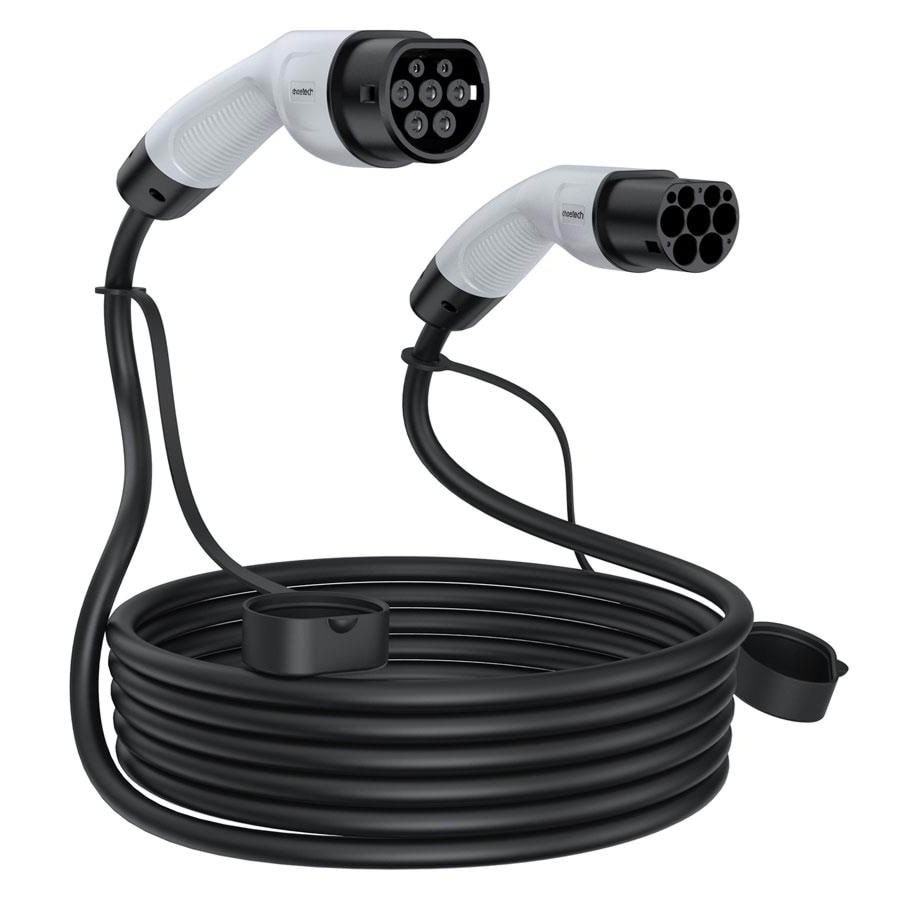

Choetech Type 2 EV charging cable 7kW 32A 1-phase 5m

Charge your electric vehicle safely and efficiently with the Choetech EV Charging Cable – built for reliable performance and long-lasting durability in any environment. This single-phase cable supports up to 7kW charging and is made from high-quality materials for maximum safety and performance.

Les mer
1 509,00 kr 1 207,20 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 6-8 dager til forsendelse

Specifications:
  • Power & Voltage: 7kW at 32A and 250V AC
  • Length: 5 meters – ideal for everyday use and flexible parking
  • Insulation Resistance: > 1000 MΩ (DC500V)
  • Contact Resistance: Max. 0.5 mΩ
  • Dielectric Strength: Up to 2000V
Durability & Materials:
  • Mechanical Lifespan: Over 10,000 mating cycles (unloaded)
  • Protection Rating: IP66 – water and dust resistant for all-weather use
  • Shell Material: Flame-retardant UL94-V0 thermoplastic
  • Conductor Material: Silver-plated copper alloy for optimal conductivity
  • Cable Type: EVC H07BZ5-F 5 450/750V (EN 50620 compliant)
Temperature & Performance:
  • Operating Temperature: -30°C to +50°C
    • Conductor Temperature Rise: < 50K
  • Mating/Unmating Force: < 100N

The Choetech EV charging cable combines functionality and safety, so you can charge with confidence – no matter the weather or setup.

Produsent
Varenummer
3391593
Model
ACG005-EU-WH
Ean
6932112105455
