Varenummer: 3419428

AXAGON 2 × Internal SATA 6G Port PCIe Controller

AXAGON PCES-SJ2 PCI-Express controller adds two high-speed SATA III ports to your desktop PC, supporting Hot-Plug, NCQ, TRIM, and Port Multiplier, with easy Plug-and-Play installation.
Les mer
På lager
237,00 kr 189,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
4 stk. På lager - 1-3 dager til levering

The AXAGON PCES-SJ2 PCI-Express controller extends your desktop PC with two SATA ports with a transmission rate up to 6 Gbit/s.

The card equipped with JMicron chipset not only supports SATA 3.0 specification, but also other SATA technologies such as Hot-Plug, Native Command Queue (NCQ), TRIM, or Port Multiplier.

Easy installation without the need to install drivers in most operating systems.

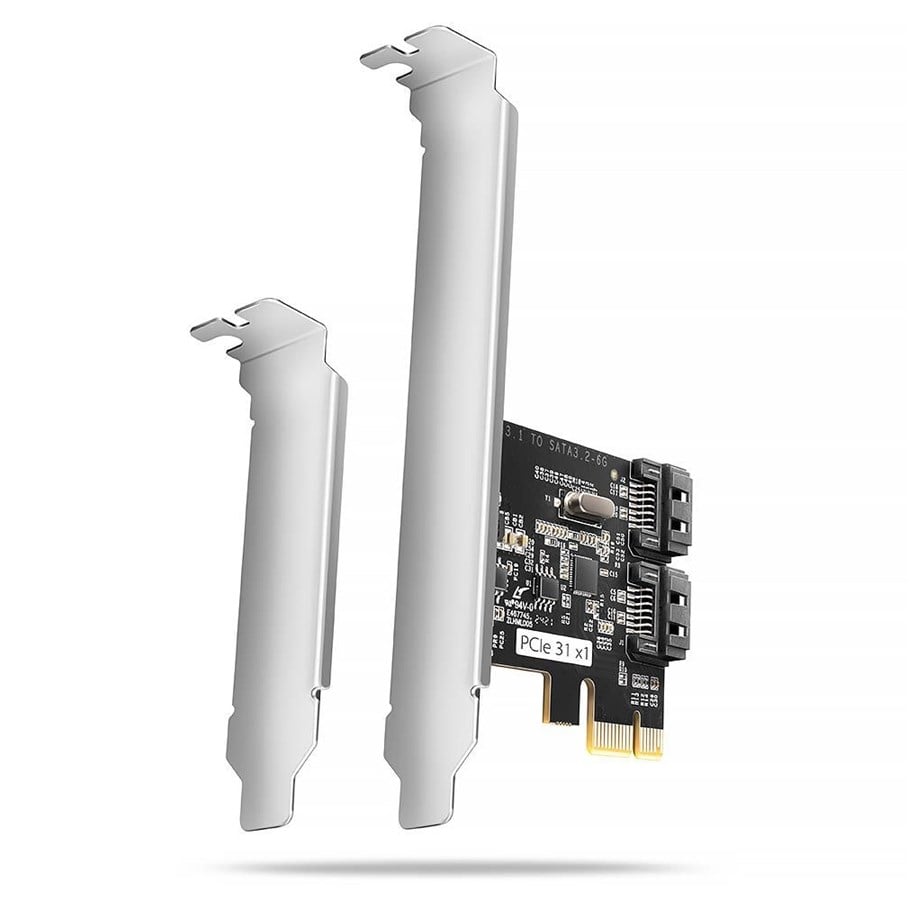

Thanks to the included low profile bracket the controller can be fitted into both standard and low profile PC cases.

Input:

  • PCI-Express 3.0 interface, PCI-Express 1.0a / 1.1 / 2.0 / 2.1 compatible.
  • Number of lines 1-Lane (×1), compatible with ×1 / ×4 / ×8 / ×16 PCIe slots.
  • Bandwidth of 1-Lane PCI-Express 3.0 bus 2 Gbit/s bidirectional.

Output:

  • 2× independent Serial ATA ports, SATA III 6G standard.
  • 2× internal 7-pin SATA data connectors.
  • Supports all SATA I / SATA II / SATA III optical drives, SSDs and hard disks of all capacities.

Other features:

  • Full Plug and Play support.
  • Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gbit/s (600 MB/s).
  • Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gbit/s (300 MB/s).
  • Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gbit/s (150 MB/s).
  • Compliant with the ATA AHCI (Advanced Host Controller Interface) specification.
  • Hot Plug support for connecting and disconnecting SATA devices while running.
  • Native Command Queuing (NCQ) support.
  • TRIM feature support for SSD disks.
  • Port Multiplier Command Based Switching feature support.
  • Boot support from connected disk including cooperation with computer motherboard BIOS/UEFI.
  • The JMicron JMB582 chipset is used.

Supported operating systems:

  • MS Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit versions of OS Windows), Linux with kernel 2.6.x and above.

Package contains:

  • PCI-Express Gigabit Ethernet card with a standard bracket,
  • low profile bracket,
  • multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
  • packed in a cardboard box.

Produsent
Varenummer
3419428
Model
PCES-SJ2
Ean
8595247907745
Til produsentens hjemmeside
Produktbeskrivelse
AXAGON PCES-SJ2 - Diskkontroller - SATA 6Gb/s - PCIe 3.0
Enhetstype
Diskkontroller - plugginnkort - lav profil
Busstype
PCIe 3.0
Grensesnitt
SATA 6Gb/s
Dataoverføringshastighet
6 Gbit
Støttede enheter
Harddisk
Kanal antall
2
Maks. antall lagringsenheter
2

Generelt

Enhetstype
Diskkontroller - plugginnkort - lav profil
Vertsbuss
PCIe 3.0

Diskkontroller

Grensesnitt
SATA 6Gb/s
Dataoverføringshastighet
6 Gbit
Støttede enheter
Harddisk
Kanal antall
2
Maks. antall lagringsenheter
2
Prosessor
JMicron JMB582

Ekspansjon / Tilkoplinger

Grensesnitt
2 x SATA 6Gb/s - SATA (intern)

Diverse

Tilleggsutstyr inkludert
Lavprofilsbrakett
Egenskaper
Varmplugg, Native Command Queuing (NCQ), støtteportmultiplikator, støtter HCI-modus
Tilpassede standarder
Plug and Play

Størrelser og vekt (forsendelse)

Fraktbredde
11.2 cm
Fraktdybde
14.5 cm
Frakthøyde
2.5 cm
Fraktvekt
72 g
