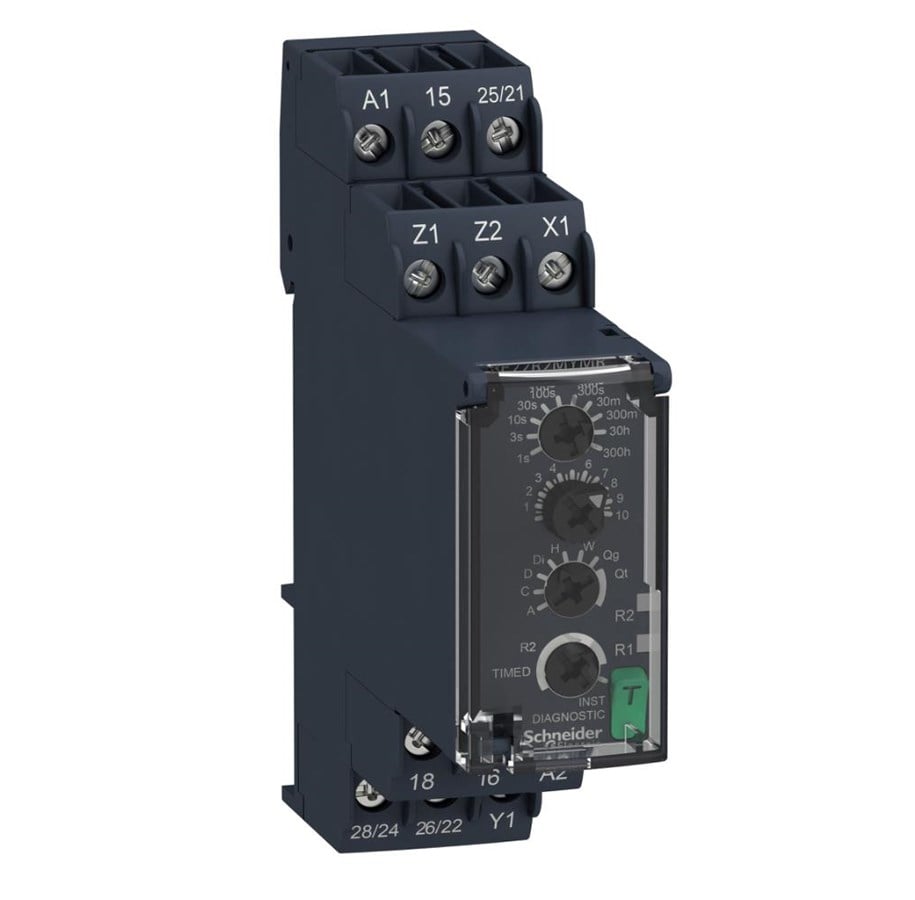

Schneider Electric Timer multifunction 1s-300h 2 c/o 8a 24-240v

The Zelio RE22 range brings to market 2 new key improvements.- The backlight LED dials for adjustment makes it easy to use in any condition, even in dusty or poorly lit enviroments. - The built-in testbutton simplifies commissioning and troubleshooting by a push of a button.RE22R2MYMR is a multifunction timer with 7 different functions which is described below.A: On-delay on power up.C: Off-delay controlled by the control input Y1D: Symmetrical flashing beginning with a pauseDi: Symmetrical flashing beginning with a pulseH: Adjustable one-shot pulse on energizationW: Adjustable one-shot pulse controlled by the control input Y1Ac: On-delay and off-delay controlled by the control input Y1The function is selected on the function dial on the front.The timer is supplied by 24 -240V AC/DC which makes it usable in most applications.The timer has 2 C/O contacts and you can choose if R2 should follow R1 or if it should be activated instantly with power up of the timer.You adjust this with the bottom dial which can be set to TIMED or INST function.The time range can be selected between 10 ranges and adjusted within by the 2 dials on the top of the front.Selectable time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds0-30 minutes0-300 minutes0-30 hours0-300 hoursThe LED's on the front shows the status of the contacts.The testbutton force the output when the timer is powered on.
