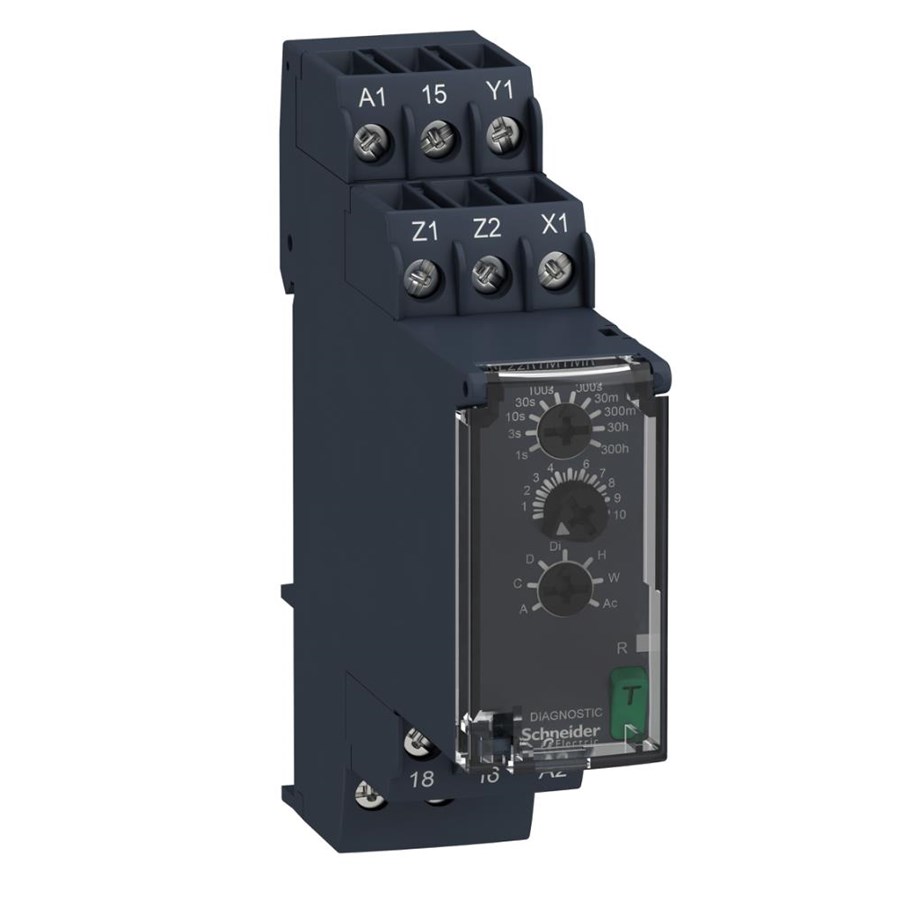

Schneider Electric Timer multifunction 1s-300h 1 c/o 8a 24-240v

The Zelio RE22 range brings to market 2 new key improvements.- The backlight LED dials for adjustment makes it easy to use in any condition, even in dusty or poorly lit enviroments. - The built-in testbutton simplifies commissioning and troubleshooting by a push of a button.RE22R1MYMR is a multifunction timer with 7 different functions which is described below.A: On-delay on power up.C: Off-delay controlled by the control input Y1D: Symmetrical flashing beginning with a pauseDi: Symmetrical flashing beginning with a pulseH: Adjustable one-shot pulse on energizationW: Adjustable one-shot pulse controlled by the control input Y1Ac: On-delay and off-delay controlled by the control input Y1The function is selected on the bottom dial on the front.The timer is supplied by 24 -240V AC/DC which makes it usable in most applications.The time range can be selected between 10 ranges and adjusted within by the 2 dials on the top of the front.Selectable time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds0-30 minutes0-300 minutes0-30 hours0-300 hoursThe LED's on the front shows the status of the contacts.The testbutton force the output when the timer is powered on.
