Varenummer: 2951784

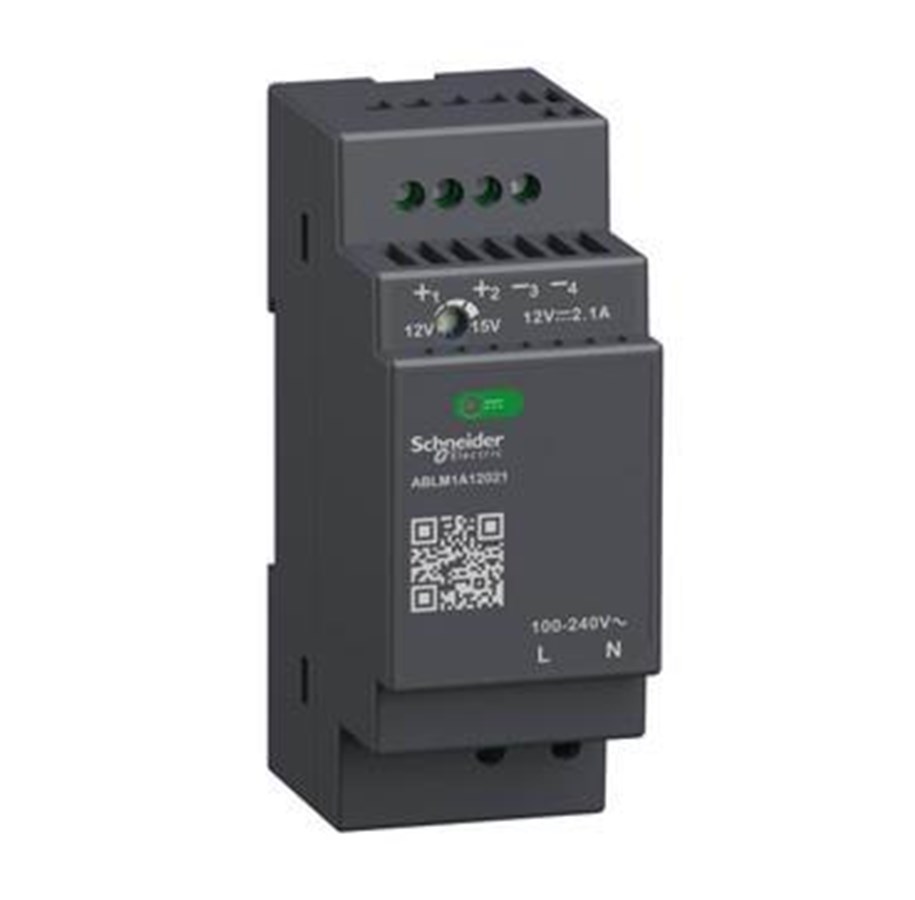

Schneider Electric Power supply 12v 2.1a modular
Schneider Electric ABLM1A12021 ikke kategorisert
1 185,00 kr
948,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
Schneider Electric ABLM1A12021
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features & Benefits
- Compatible with TT, TN and IT earthing systems for safety in all kinds of industrial networks
- 85% efficiency rating means it wastes little heat and doesn't need a heatsink to stay cool
- Suits wire sizes in range of 0.5 to 1.5mmВІ (20 to 16AWG) for broad compatibility
Applications
- Mining and minerals processing
- Oil and gas industries
- Material handling
How do I mount this unit?
Thanks to its handy snap-on mechanism, you can mount the PSU to a 35mm DIN rail quickly and easily with no need for tools.
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features & Benefits
- Compatible with TT, TN and IT earthing systems for safety in all kinds of industrial networks
- 85% efficiency rating means it wastes little heat and doesn't need a heatsink to stay cool
- Suits wire sizes in range of 0.5 to 1.5mmВІ (20 to 16AWG) for broad compatibility
Applications
- Mining and minerals processing
- Oil and gas industries
- Material handling
How do I mount this unit?
Thanks to its handy snap-on mechanism, you can mount the PSU to a 35mm DIN rail quickly and easily with no need for tools.
Produsent
Varenummer
2951784
Model
ABLM1A12021
Ean
3606481500144
