Varenummer: 3441120

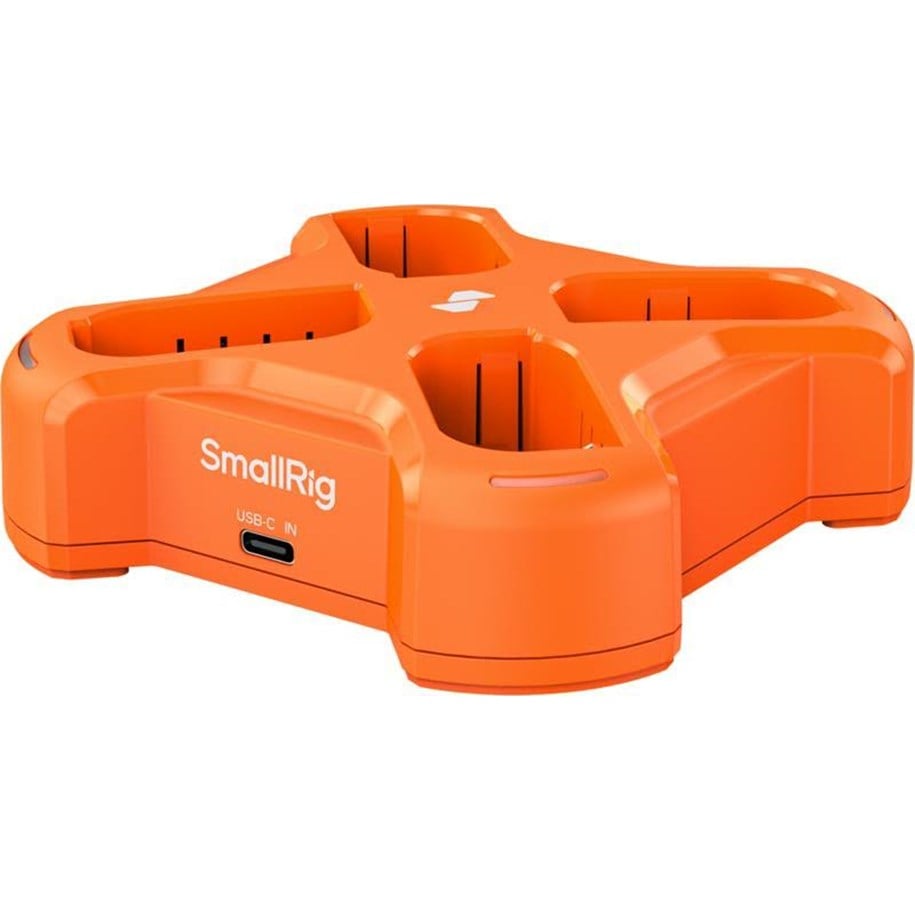

SmallRig Four-Channel Camera Battery Charger for DMW-BLK22 5748
Firekanals kamerabatterilader SmallRig 5748 for DMW-BLK22 leverer høyeffektiv lading med USB-C PD-inngang opptil 45W, intelligent kanalaktivering og innebygd kortslutnings- og overstrømsbeskyttelse.
Utviklet for krevende opptaksplaner kan den lade opptil fire DMW-BLK22-batterier samtidig og prioriterer batterier med høyere spenning under lading; det kompakte, bærbare designet passer for reise og daglig bruk.
- USB-C PD-inngang: 5V/2A, 9V/2A, 12V/2A, 15V/3A (maks 45W)
- Fire dedikerte ladekanaler med adapterbasert aktivering (5V: 1, 9V: 2, 12V: 3, 15V: 4)
- Utgangsalternativer per kanal: 8.4V/0.9A, 8.4V/1.8A, 8.4V/2.5A
- Ladespenninggrense: 8.45V
- Driftstemperatur: 5°C–45°C
- Kompatibel med kameraer som bruker DMW-BLK22-batterier, inkludert DC-S5-serien og oppførte DC-GH-seriemodeller
Pålitelig strømstyring for flere batterier som bidrar til å holde kamerautstyret klart for lengre økter med færre ladeavbrudd.
577,00 kr
461,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Fjernlager, 4-6 dager til forsendelse
SmallRig Four-Channel Camera Battery Charger for DMW-BLK22 5748
SmallRig Four-Channel Camera Battery Charger for DMW-BLK22 5748 is a high-efficiency, high-power charger designed for DMW-BLK22 batteries. With a 45W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.
The four dedicated channels allow for simultaneous charging of four DMW-BLK22 batteries, delivering efficient fast charging to meet demanding shooting schedules.
Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.
Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.
Certifications: Quality Inspection Report / FCC / CE / PSE / KC / RCM
Charging Time:
Battery Capacity: 2600mAh (e.g., ID 4906, 4906AC, 4979, 6906AC)
Full Charge: 4 batteries in 3 hours
Note: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.
Indicator Light Functions:
- When powered on and batteries are inserted: Red lights on for 1 second → Green lights on for 1 second → Lights turn off.
- During charging: The corresponding slot's light turns on for charging batteries; uncharged slots remain off.
- The number of charging channels activated based on the adapter's voltage: 5V activates 1 channel; 9V activates 2 channels; 12V activates 3 channels; 15V activates all 4 channels.
- If a higher-voltage battery is inserted during charging, the system prioritizes charging it first until it is fully charged.
- Charging indicators: Red light indicates charging; Green light indicates fully charged.
- Error indicator: Flashing red light.
SmallRig Four-Channel Camera Battery Charger for DMW-BLK22 5748 is a high-efficiency, high-power charger designed for DMW-BLK22 batteries. With a 45W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.
The four dedicated channels allow for simultaneous charging of four DMW-BLK22 batteries, delivering efficient fast charging to meet demanding shooting schedules.
Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.
Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.
Certifications: Quality Inspection Report / FCC / CE / PSE / KC / RCM
Charging Time:
Battery Capacity: 2600mAh (e.g., ID 4906, 4906AC, 4979, 6906AC)
Full Charge: 4 batteries in 3 hours
Note: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.
Indicator Light Functions:
- When powered on and batteries are inserted: Red lights on for 1 second → Green lights on for 1 second → Lights turn off.
- During charging: The corresponding slot's light turns on for charging batteries; uncharged slots remain off.
- The number of charging channels activated based on the adapter's voltage: 5V activates 1 channel; 9V activates 2 channels; 12V activates 3 channels; 15V activates all 4 channels.
- If a higher-voltage battery is inserted during charging, the system prioritizes charging it first until it is fully charged.
- Charging indicators: Red light indicates charging; Green light indicates fully charged.
- Error indicator: Flashing red light.
Produsent
Varenummer
3441120
Model
5748
Ean
6941590027272
Til produsentens hjemmeside
Egnet til
Batteri til digitalkamera
Strømkildetype
USB
Antall støttede batterier
4
Produktfarge
Oransje
Kroppsmateriale
Akrylonitril-butadien-styren (ABS), Polykarbonat (PC)
Batterier medfølger
Nei
Driftstemperatur (T-T)
5 - 45 °C
Bredde
106 mm
Dybde
106 mm
Høyde
31 mm
Vekt
136 g
Antall per pakke
1 stykker
Kabler inkludert
USB
Pakkebredde
146 mm
Pakkedybde
116 mm
Pakkehøyde
41 mm
Pakkevekt
234 g
Egenskaper
Egnet til
Batteri til digitalkamera
Strømkildetype
USB
Antall støttede batterier
4
Design
Produktfarge
Oransje
Kroppsmateriale
Akrylonitril-butadien-styren (ABS), Polykarbonat (PC)
Battery
Batterier medfølger
Nei
Miljømessige forhold
Driftstemperatur (T-T)
5 - 45 °C
Vekt og dimensjoner
Bredde
106 mm
Dybde
106 mm
Høyde
31 mm
Vekt
136 g
Emballasjeinnhold
Antall per pakke
1 stykker
Kabler inkludert
USB
Datainnpakking
Pakkebredde
146 mm
Pakkedybde
116 mm
Pakkehøyde
41 mm
Pakkevekt
234 g
