Varenummer: 2470596

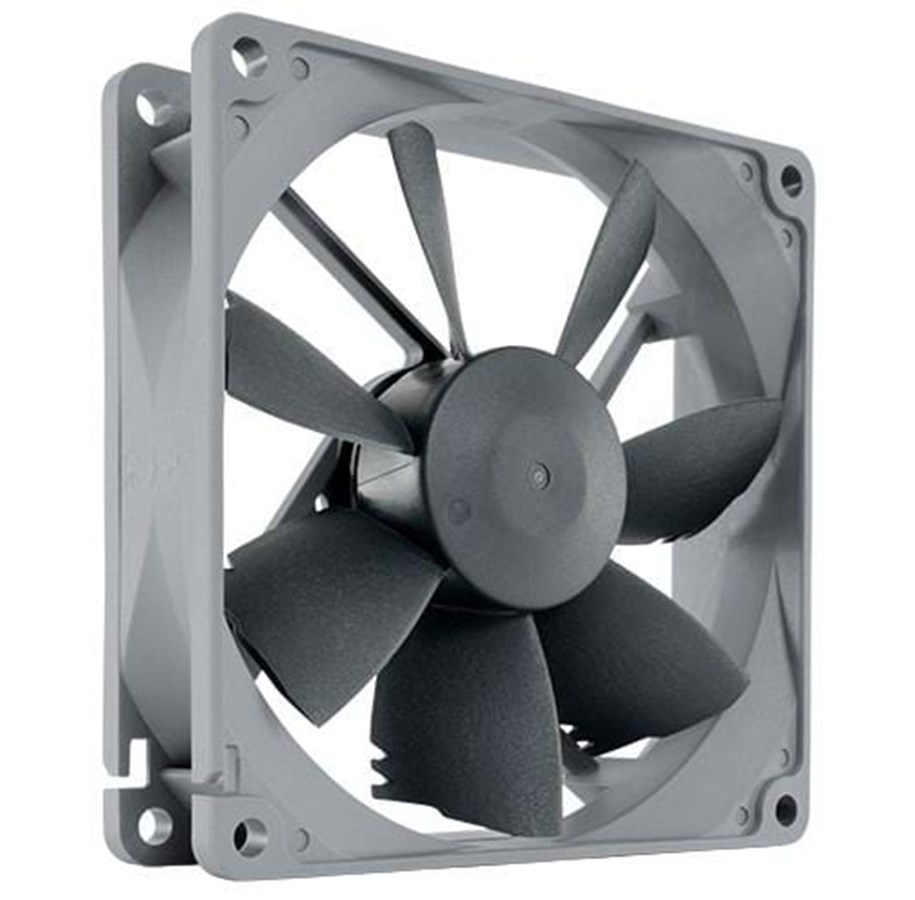

Noctua Redux NF-B9 redux-1600 PWM - Kabinettvifte - 92mm - Grå - 17 dBA

Skapkjøler, størrelse: 92mm x 92mm x 25mm (HxBxD), støynivå: maksimalt 17,6 dBA, luftstrøm: maksimalt 37,9 CFM, vifte RPM: 350 -1600 ±10%, PWM-kontrollert, tilkobling for hovedkort med fire pinner , grå ramme med svarte blader.

Les mer
159,00 kr 127,20 kr eksl. mva
Rimeligste private frakt: 95,00 kr
Bestillingsvare, 13-15 dager til forsendelse

The classic NF-B9 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-B9 premium fan. Its industry grade SSO-Bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-B9 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1600rpm PWM version features Noctua’s proprietary NE-FD1 PWM IC for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.

Proven NF-B9 design

Proven NF-B9 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-B9. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-B9 has become an established reference for quiet 92mm fans.
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
Bevelled Blade Tips

Bevelled Blade Tips

Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fan's outstanding efficiency.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.

Produsent
Varenummer
2470596
Model
NF-B9 redux-1600 PWM
Ean
4716123315315
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
9,2 cm
Rotasjonshastighet (min)
350 RPM
Rotasjonshasrighet (max)
1600 RPM
Støynivå (høy hastighet)
17,6 dB
Maksimal luftstrøm
64,3 cfm
Maksimalt lufttrykk
1,61 mmH2O
Gjennomsnittstid mellom feil (MTBF)
150000 timer
Produktfarge
Svart, Grå
Antall vifter
1 vifter
Strømforbruk (vanlig bruk)
0,96 W
Spenning
12 V
Strøm (maks.)
0,11 A
Bredde
92 mm
Dybde
25 mm
Høyde
92 mm
Pakkebredde
140 mm
Pakkedybde
34 mm
Pakkehøyde
150 mm
Pakkevekt
160 g
Tilkobling
3-pin
Harmonisert system (HS)-kode
84733080

Ytelse

Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
9,2 cm
Rotasjonshastighet (min)
350 RPM
Rotasjonshasrighet (max)
1600 RPM
Støynivå (høy hastighet)
17,6 dB
Maksimal luftstrøm
64,3 cfm
Maksimalt lufttrykk
1,61 mmH2O
Gjennomsnittstid mellom feil (MTBF)
150000 timer

Design

Produktfarge
Svart, Grå
Antall vifter
1 vifter

Energihåndtering

Strømforbruk (vanlig bruk)
0,96 W
Spenning
12 V
Strøm (maks.)
0,11 A

Vekt og dimensjoner

Bredde
92 mm
Dybde
25 mm
Høyde
92 mm
Pakkebredde
140 mm
Pakkedybde
34 mm
Pakkehøyde
150 mm
Pakkevekt
160 g

Andre funksjoner

Tilkobling
3-pin

Logistikk data

Harmonisert system (HS)-kode
84733080

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
