Varenummer: 2662223

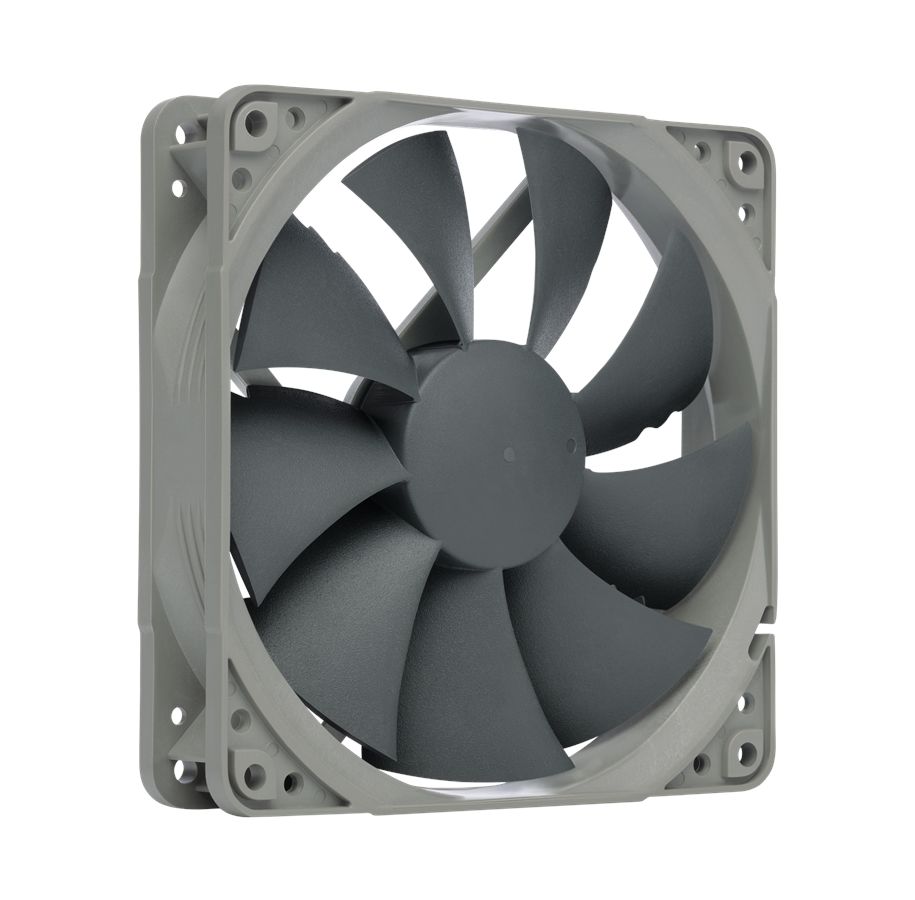

Noctua NF-P12 redux-1700 PWM - Kabinettvifte - 120mm - Svart - 25 dBA

Skapkjøler, størrelse: 120mm x 120mm x 25mm (HxBxD), støynivå: maksimalt 25,1 dBA, luftstrøm: maksimalt 70,75 CFM, vifte RPM: 450 -1700 ±10%, PWM-kontrollert med en firepinnet hovedkorttilkobling og svart/grå fargeskjema.
Les mer
På lager
157,00 kr 125,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
4 stk. På lager - 1-3 dager til levering

Proven NF-P12 design

Proven NF-P12 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P12. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P12 has become an established reference for quiet 120mm fans.
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
Pressure-optimised Nine-Blade Design

Pressure-optimised Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12's nine-blade impeller provides outstanding pressure and airflow performance.
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
Colour-customisable with NA-SAVP1 anti-vibration pads

Colour-customisable with NA-SAVP1 anti-vibration pads

The fan’s frame can be outfitted with Noctua’s chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.

Produsent
Varenummer
2662223
Model
NF-P12 redux-1700 PWM
Ean
9010018100365
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
450 RPM
Rotasjonshasrighet (max)
1700 RPM
Støynivå (høy hastighet)
25,1 dB
Luftstrøm
120,2 m³/t
Maksimalt lufttrykk
2,83 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Hydraulisk
Produktfarge
Grå
Antall vifter
1 vifter
Antall vifteblader
9
Viftetilkobling
4-pin
Krav til strømforsyning
1,08 W
Spenning
12 V
Strøm (maks.)
0,09 A
Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Pakkebredde
170 mm
Pakkedybde
32 mm
Pakkehøyde
180 mm
Pakkevekt
242 g
Skruer inkludert
Ja
Antall skruer
4
Mean time to failure (MTTF)
150000 timer
Masterkassens (ytterkassens) bredde
360 mm
Masterkassens (ytterkassens) lengde
370 mm
Masterkassens (ytterkassens) høyde
200 mm
Masterkassens (ytterkassens) bruttovekt
5,7 kg
Produkter per masterkasse (ytterkasse)
20 stykker

Ytelse

Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
450 RPM
Rotasjonshasrighet (max)
1700 RPM
Støynivå (høy hastighet)
25,1 dB
Luftstrøm
120,2 m³/t
Maksimalt lufttrykk
2,83 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Hydraulisk

Design

Produktfarge
Grå
Antall vifter
1 vifter
Antall vifteblader
9
Viftetilkobling
4-pin

Energihåndtering

Krav til strømforsyning
1,08 W
Spenning
12 V
Strøm (maks.)
0,09 A

Vekt og dimensjoner

Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Pakkebredde
170 mm
Pakkedybde
32 mm
Pakkehøyde
180 mm
Pakkevekt
242 g

Emballasjeinnhold

Skruer inkludert
Ja
Antall skruer
4

Andre funksjoner

Mean time to failure (MTTF)
150000 timer

Logistikk data

Masterkassens (ytterkassens) bredde
360 mm
Masterkassens (ytterkassens) lengde
370 mm
Masterkassens (ytterkassens) høyde
200 mm
Masterkassens (ytterkassens) bruttovekt
5,7 kg
Produkter per masterkasse (ytterkasse)
20 stykker
