Varenummer: 2319885

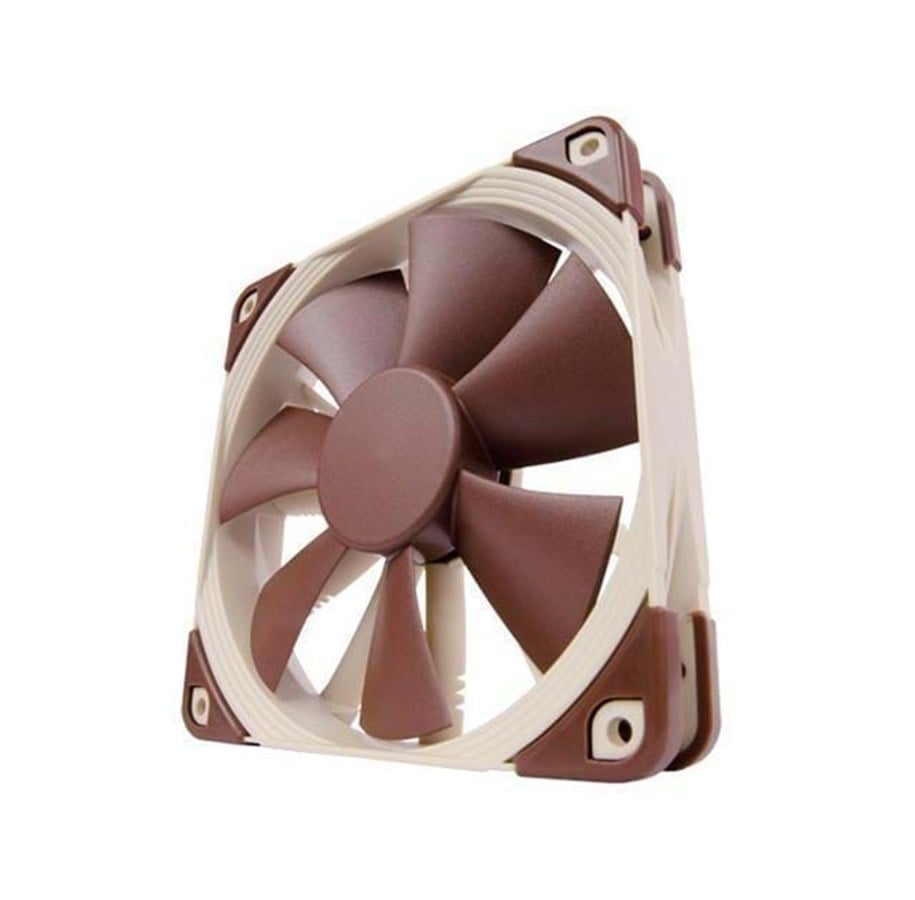

Noctua NF-F12 PWM - Kabinettvifte - 120mm - Brun - 22 dBA

Skapkjøler, størrelse: 120mm x 120mm x 25mm (HxBxD), støynivå: maks. 22,4 dBA, luftstrøm: maks. 55 CFM, vifte RPM: 300 -1500 ±10%, PWM-kontrollert, med både en 4-pin hovedkort og en 4-pin Molex-tilkobling, brun i fargen.

Les mer
På lager
254,00 kr 203,20 kr eksl. mva
Rimeligste private frakt: 109,00 kr
5 stk. På lager - 1-3 dager til levering

Focused Flow™ frame

Focused Flow™ frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches

Varying Angular Distance and Vortex Control Notches

The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf™ Impeller

Heptaperf™ Impeller

Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing

SSO2 Bearing

The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-F12 uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Stops at 0% PWM

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Ultra-Low Power Consumption

Ultra-Low Power Consumption

The NF-F12 draws only 0.6W, which is more than 50% less than many fans in the same speed range. This doesn't only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-F12 after 5 years of continuous use.
Low-Noise Adaptor

Low-Noise Adaptor

The NF-F12 is supplied with a (L.N.A.) that reduces the maximum fan speed from 1500 to 1200rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-F12 fan to the same PWM fan header for automatic control.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Kabinettvifte

Produsent
Varenummer
2319885
Model
NF-F12-PWM
Ean
4716123314660
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Rotasjonshastighet (min)
300 RPM
Rotasjonshasrighet (max)
1500 RPM
Støynivå (lav hastighet)
18,6 dB
Støynivå (høy hastighet)
22,4 dB
Luftstrøm
93,4 m³/t
Minimum lufttrykk
1,83 mmH2O
Maksimalt lufttrykk
2,61 mmH2O
Antall per pakke
1 stykker
Gjennomsnittstid mellom feil (MTBF)
150000 timer
Produktfarge
Beige, Brun
Strømforbruk (vanlig bruk)
0,6 W
Nominell spenning
12 V
Nominell strømstyrke (hub)
0,05 A
Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Harmonisert system (HS)-kode
84733080

Ytelse

Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Rotasjonshastighet (min)
300 RPM
Rotasjonshasrighet (max)
1500 RPM
Støynivå (lav hastighet)
18,6 dB
Støynivå (høy hastighet)
22,4 dB
Luftstrøm
93,4 m³/t
Minimum lufttrykk
1,83 mmH2O
Maksimalt lufttrykk
2,61 mmH2O
Antall per pakke
1 stykker
Gjennomsnittstid mellom feil (MTBF)
150000 timer

Design

Produktfarge
Beige, Brun

Energihåndtering

Strømforbruk (vanlig bruk)
0,6 W
Nominell spenning
12 V
Nominell strømstyrke (hub)
0,05 A

Vekt og dimensjoner

Bredde
120 mm
Dybde
25 mm
Høyde
120 mm

Logistikk data

Harmonisert system (HS)-kode
84733080

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
