Varenummer: 2674886

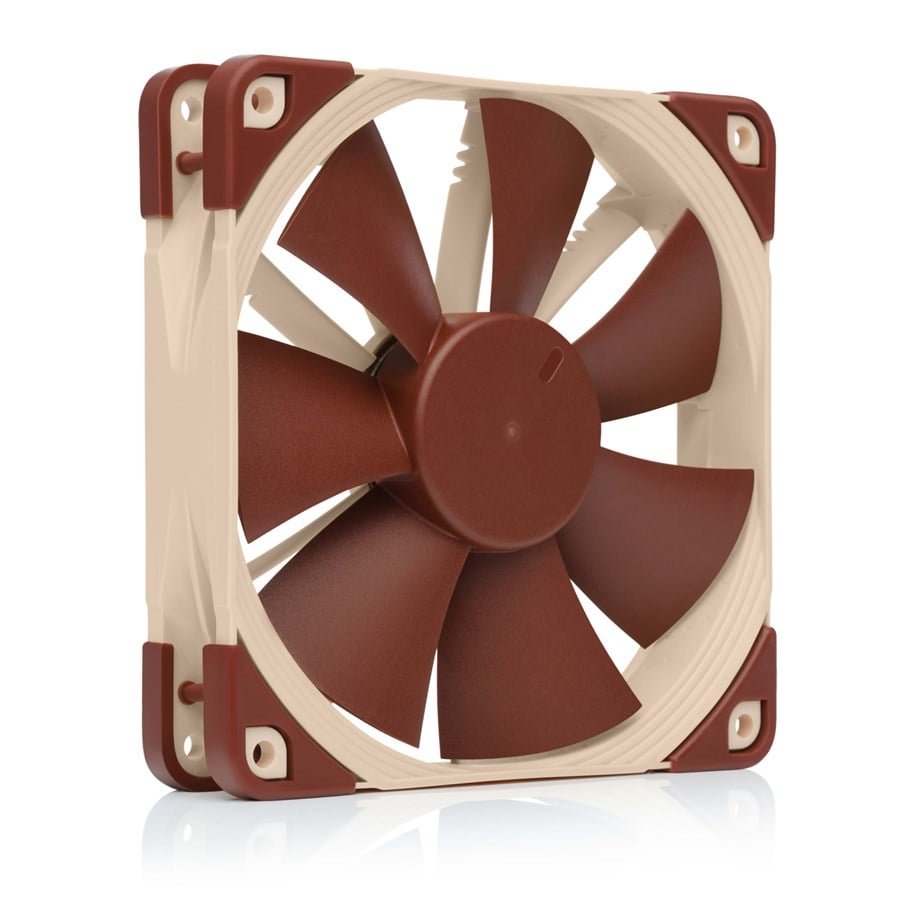

Noctua NF-F12 5V - Kabinettvifte - 120mm - Brun - 22 dBA

Skapkjøler, størrelse: 120mm x 120mm x 25mm (HxBxD), støynivå: 22,4 dBA, luftstrøm: 55 CFM, vifte RPM: 1500 ±10%, tilkobling for hovedkort med tre pinner, fem volt, brun.

Les mer
På lager
269,00 kr 215,20 kr eksl. mva
Rimeligste private frakt: 95,00 kr
4 stk. På lager - 1-3 dager til levering

Award-winning NF-F12 design

Award-winning NF-F12 design

Having received more than 100 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
5V version

5V version

5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-F12 5V is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Focused Flow™ frame

Focused Flow™ frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches

Varying Angular Distance and Vortex Control Notches

The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf™ Impeller

Heptaperf™ Impeller

Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
Polarity protection

Polarity protection

As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
SSO2 Bearing

SSO2 Bearing

The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
OmniJoin™ Adaptor Set

OmniJoin™ Adaptor Set

Many devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-F12 5V to proprietary fan headers!
USB power adaptor cable

USB power adaptor cable

The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Produsent
Varenummer
2674886
Model
NF-F12 5V
Ean
9010018100266
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshasrighet (max)
1500 RPM
Støynivå (høy hastighet)
22,4 dB
Luftstrøm
93,4 m³/t
Maksimalt lufttrykk
2,61 mmH2O
Lagertype
Self-Stabilising Oil-pressure Bearing (SSO)
Produktfarge
Beige, Brun
Antall vifter
1 vifter
Antall vifteblader
7
Viftetilkobling
3-pin
Sertifisering
CE
Krav til strømforsyning
0,75 W
Spenning
5 V
Strøm (maks.)
0,15 A
Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Kabellengde
0,3 m
Pakkebredde
150 mm
Pakkedybde
34 mm
Pakkehøyde
210 mm
Pakkevekt
330 g
Samsvarssertifikat
RoHS
Skruer inkludert
Ja
Anti-veberasjons-system
Ja
Mean time to failure (MTTF)
150000 timer
Harmonisert system (HS)-kode
84733080
Masterkassens (ytterkassens) bredde
350 mm
Masterkassens (ytterkassens) lengde
360 mm
Masterkassens (ytterkassens) høyde
380 mm
Masterkassens (ytterkassens) bruttovekt
13,1 kg
Produkter per masterkasse (ytterkasse)
36 stykker

Ytelse

Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshasrighet (max)
1500 RPM
Støynivå (høy hastighet)
22,4 dB
Luftstrøm
93,4 m³/t
Maksimalt lufttrykk
2,61 mmH2O
Lagertype
Self-Stabilising Oil-pressure Bearing (SSO)

Design

Produktfarge
Beige, Brun
Antall vifter
1 vifter
Antall vifteblader
7
Viftetilkobling
3-pin
Sertifisering
CE

Energihåndtering

Krav til strømforsyning
0,75 W
Spenning
5 V
Strøm (maks.)
0,15 A

Vekt og dimensjoner

Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Kabellengde
0,3 m
Pakkebredde
150 mm
Pakkedybde
34 mm
Pakkehøyde
210 mm
Pakkevekt
330 g

Tekniske detaljer

Samsvarssertifikat
RoHS

Emballasjeinnhold

Skruer inkludert
Ja

Andre funksjoner

Anti-veberasjons-system
Ja
Mean time to failure (MTTF)
150000 timer

Logistikk data

Harmonisert system (HS)-kode
84733080
Masterkassens (ytterkassens) bredde
350 mm
Masterkassens (ytterkassens) lengde
360 mm
Masterkassens (ytterkassens) høyde
380 mm
Masterkassens (ytterkassens) bruttovekt
13,1 kg
Produkter per masterkasse (ytterkasse)
36 stykker
