Varenummer: 2661526

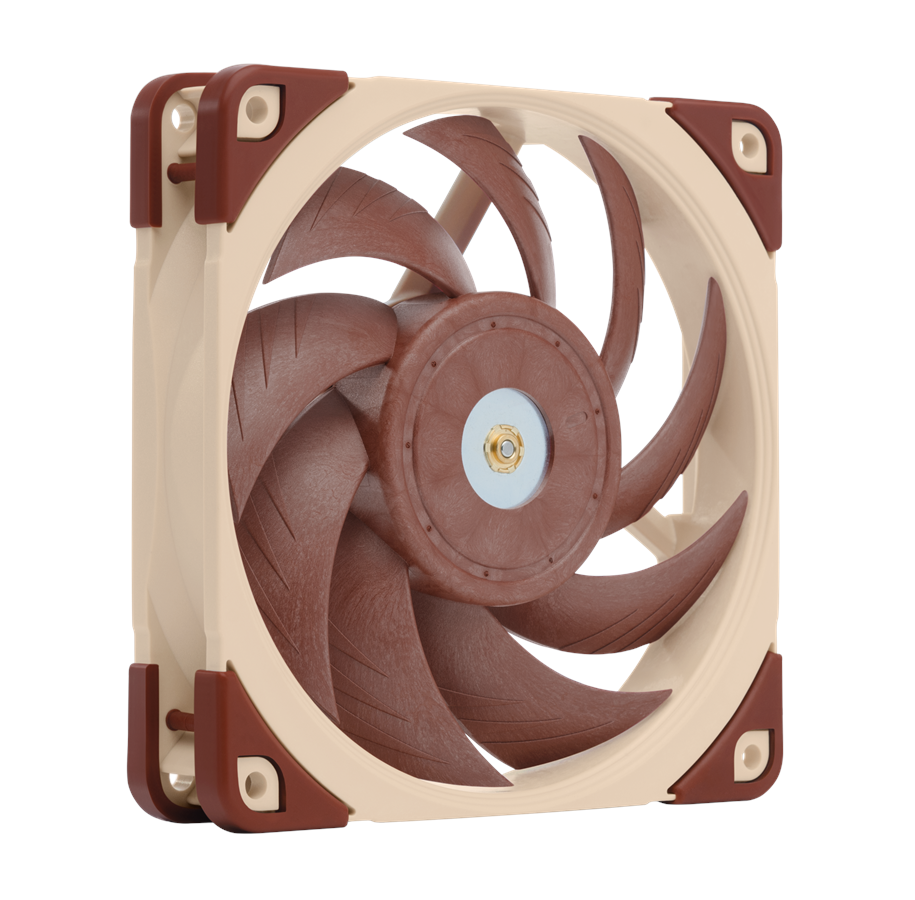

Noctua NF-A12x25 PWM - Kabinettvifte - 120mm - Brun - 22 dBA
Skapkjøler, størrelse: 120mm x 120mm x 25mm (HxBxD), støynivå: 18,8 - 22,06 dBA, luftstrøm: maksimalt 60,1 CFM, vifte RPM: 450 -2000 ±10%, PWM-kontrollert med en firepinnet hovedkorttilkobling og brun farge.
På lager
332,00 kr
265,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
2 stk.
På lager - 1-3 dager til levering
The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimization) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua's A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
Produsent
Varenummer
2661526
Model
NF-A12X25 PWM
Ean
9010018100396
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
450 RPM
Rotasjonshasrighet (max)
2000 RPM
Rotasjonshastighet med LNA (maks.)
1700 RPM
Støynivå (høy hastighet)
22,6 dB
Støynivå med LNA (maks.)
18,8 dB
Luftstrøm
102,1 m³/t
Luftstrøm med LNA (maks.)
84,5 m³/t
Minimum lufttrykk
1,65 mmH2O
Maksimalt lufttrykk
2,34 mmH2O
Lagertype
Self-Stabilising Oil-pressure Bearing (SSO)
Produktfarge
Brun
Materiale
Liquid Crystal Polymers (LCP)
Viftetilkobling
4-pin
Strømforbruk (vanlig bruk)
1,68 W
Spenning
12 V
Strøm (maks.)
0,14 A
Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Mean time to failure (MTTF)
150000 timer
Harmonisert system (HS)-kode
84733080
Ytelse
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
450 RPM
Rotasjonshasrighet (max)
2000 RPM
Rotasjonshastighet med LNA (maks.)
1700 RPM
Støynivå (høy hastighet)
22,6 dB
Støynivå med LNA (maks.)
18,8 dB
Luftstrøm
102,1 m³/t
Luftstrøm med LNA (maks.)
84,5 m³/t
Minimum lufttrykk
1,65 mmH2O
Maksimalt lufttrykk
2,34 mmH2O
Lagertype
Self-Stabilising Oil-pressure Bearing (SSO)
Design
Produktfarge
Brun
Materiale
Liquid Crystal Polymers (LCP)
Viftetilkobling
4-pin
Energihåndtering
Strømforbruk (vanlig bruk)
1,68 W
Spenning
12 V
Strøm (maks.)
0,14 A
Vekt og dimensjoner
Bredde
120 mm
Dybde
25 mm
Høyde
120 mm
Andre funksjoner
Mean time to failure (MTTF)
150000 timer
Logistikk data
Harmonisert system (HS)-kode
84733080
