Varenummer: 2662218

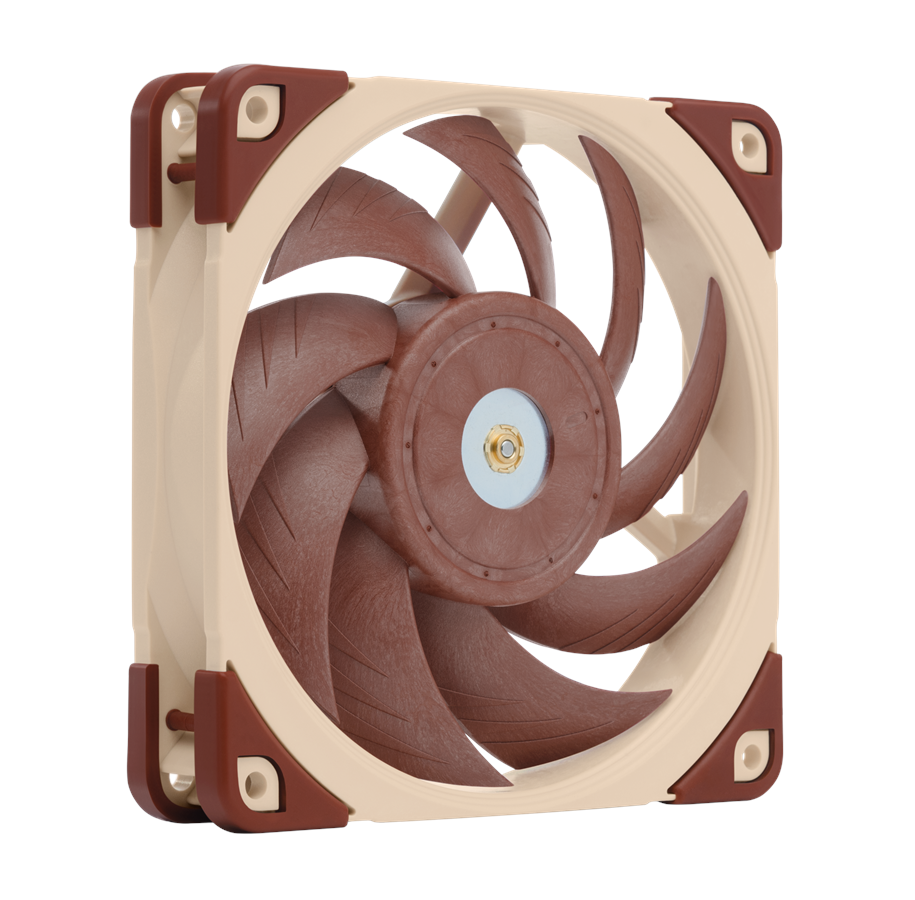

Noctua NF-A12x25 FLX - Kabinettvifte - 120mm - Brun - 22 dBA

Skapkjøler, størrelse: 120mm x 120mm x 25mm (HxBxD), støynivå: 18,8 - 22,06 dBA, luftstrøm: maksimalt 60,1 CFM, vifte RPM: 1350 -2000 ±10%, kompatibel med både 3-pin og 4-pin hovedkort, brun farge.

337,00 kr 269,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Bestillingsvare, 12-14 dager til forsendelse

The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimization) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua's A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin FLX version provides 2000/1700/1350rpm speed settings via the supplied Low-Noise Adaptors so as to give full flexibility in configuring the fan for maximum cooling capacity or near-silent acoustics. Topped off with exceptional running smoothness, Noctua's reference-class SSO2 bearing, a rich bundle of accessories, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.

Produsent
Varenummer
2662218
Model
NF-A12x25 FLX
Ean
9010018100389
Til produsentens hjemmeside
Egnet plassering
Universell
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Antall hastighetsnivåer
3
Rotasjonshastighet (min)
1350 RPM
Rotasjonshasrighet (max)
2000 RPM
Støynivå (lav hastighet)
14,2 dB
Støynivå (høy hastighet)
22,6 dB
Luftstrøm
102,1 m³/t
Minimum lufttrykk
64,5 mmH2O
Maksimalt lufttrykk
2,34 mmH2O
Lagertype
Self-Stabilising Oil-pressure (SSO) bearing
Antall per pakke
1 stykker
Gjennomsnittstid mellom feil (MTBF)
150000 timer
Produktfarge
Beige, Brun
Materiale
Liquid Crystal Polymer (LCP)
Antall vifter
1 vifter
Antall vifteblader
9
Viftetilkobling
3-pin
Nominell spenning
12 V
Strøm (maks.)
0,14 A
Viftedimensjoner (BxDxH)
120 x 120 x 25 mm
Kabler inkludert
Vifte
Skruer inkludert
Ja
Harmonisert system (HS)-kode
84733080

Ytelse

Egnet plassering
Universell
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Antall hastighetsnivåer
3
Rotasjonshastighet (min)
1350 RPM
Rotasjonshasrighet (max)
2000 RPM
Støynivå (lav hastighet)
14,2 dB
Støynivå (høy hastighet)
22,6 dB
Luftstrøm
102,1 m³/t
Minimum lufttrykk
64,5 mmH2O
Maksimalt lufttrykk
2,34 mmH2O
Lagertype
Self-Stabilising Oil-pressure (SSO) bearing
Antall per pakke
1 stykker
Gjennomsnittstid mellom feil (MTBF)
150000 timer

Design

Produktfarge
Beige, Brun
Materiale
Liquid Crystal Polymer (LCP)
Antall vifter
1 vifter
Antall vifteblader
9
Viftetilkobling
3-pin

Energihåndtering

Nominell spenning
12 V
Strøm (maks.)
0,14 A

Vekt og dimensjoner

Viftedimensjoner (BxDxH)
120 x 120 x 25 mm

Emballasjeinnhold

Kabler inkludert
Vifte
Skruer inkludert
Ja

Logistikk data

Harmonisert system (HS)-kode
84733080

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
