Varenummer: 2828221

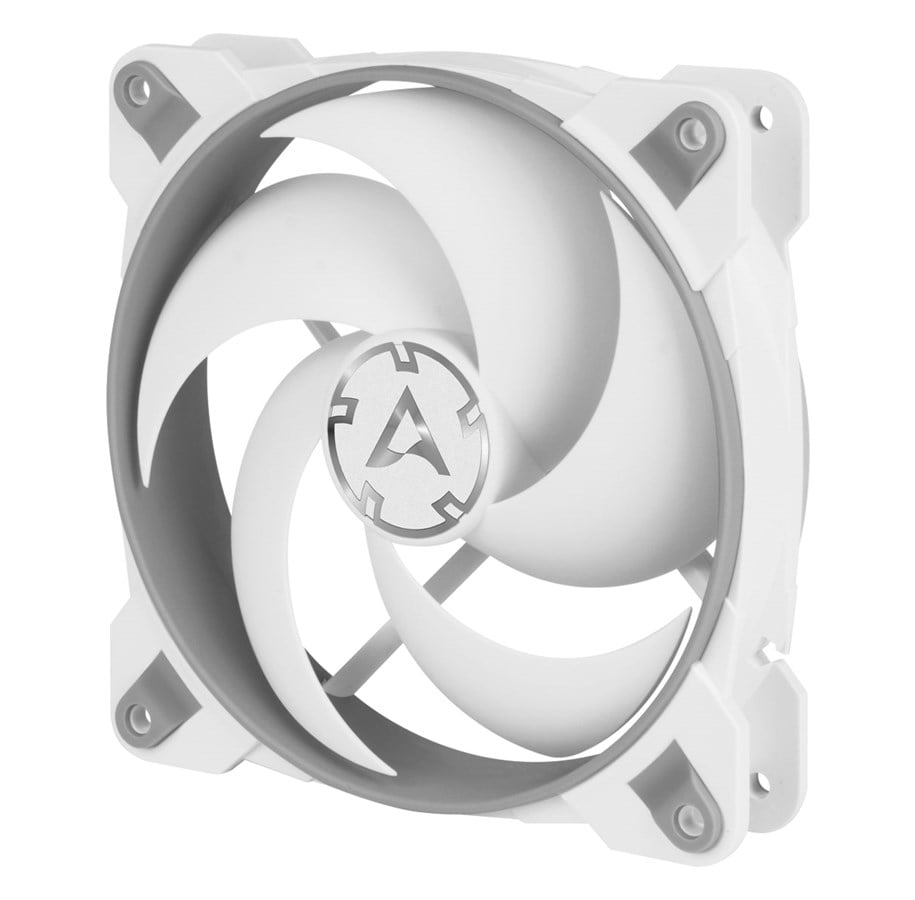

Arctic BioniX P120 - Grey/White - Kabinettvifte - 120mm - Hvit - 24 dBA
Kabinettvifte, 120mm x 120mm x 27mm (Høyde x Bredde x Dybde), Støynivå maks 0.45 sone (∼ 24 dBa), luftstrøm maks 67.56 CFM, maksimalt statisk trykk 2.75 mmH2O, viftehastighet: 200 - 2100 ±10% RPM, PWM kontrollert, lagertype: Fluid Dynamic Bearing (FDB), hovedkortkontakt: 4-pins, farge: grå / hvit.
167,00 kr
133,60 kr eksl. mva
Rimeligste private frakt: 109,00 kr
Bestillingsvare, 8-10 dager til forsendelse
Optimised for Static Pressure
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators. 10° C lower motor temperature doubles the life span. The BioniX gaming fans have a four times longer service life through low coil temperature. Therefore, we extend the warranty to 10 years.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators. 10° C lower motor temperature doubles the life span. The BioniX gaming fans have a four times longer service life through low coil temperature. Therefore, we extend the warranty to 10 years.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Produsent
Varenummer
2828221
Model
ACFAN00167A
Ean
4895213702195
Til produsentens hjemmeside
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
200 RPM
Rotasjonshasrighet (max)
2100 RPM
Støynivå
0,45 sone
Maksimal luftstrøm
67,56 cfm
Luftstrøm
114,79 m³/t
Maksimalt lufttrykk
2,75 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Fluid Dynamic Bearing (FDB)
Produktfarge
Grå, Hvit
Antall vifter
1 vifter
Antall vifteblader
5
Viftetilkobling
4-pin + 4-pin
Spenning
12 V
Nominell linjestrøm
0,13 A
Bredde
120 mm
Dybde
120 mm
Høyde
27 mm
Vekt
140 g
Kabellengde
0,4 m
Pakkebredde
130 mm
Pakkedybde
125 mm
Pakkehøyde
34 mm
Pakkevekt
175 g
Samsvarssertifikat
RoHS
Pakketype
Boks
Skruer inkludert
Ja
Antall skruer
4
Monteringshullmønster (BxD)
105 x 105 mm
Opprinnelsesland
China
Harmonisert system (HS)-kode
84733080
Ytelse
Egnet plassering
PC-kjølevifte
Modell/Type
Vifte
Viftediameter
12 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
200 RPM
Rotasjonshasrighet (max)
2100 RPM
Støynivå
0,45 sone
Maksimal luftstrøm
67,56 cfm
Luftstrøm
114,79 m³/t
Maksimalt lufttrykk
2,75 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Fluid Dynamic Bearing (FDB)
Design
Produktfarge
Grå, Hvit
Antall vifter
1 vifter
Antall vifteblader
5
Viftetilkobling
4-pin + 4-pin
Energihåndtering
Spenning
12 V
Nominell linjestrøm
0,13 A
Vekt og dimensjoner
Bredde
120 mm
Dybde
120 mm
Høyde
27 mm
Vekt
140 g
Kabellengde
0,4 m
Pakkebredde
130 mm
Pakkedybde
125 mm
Pakkehøyde
34 mm
Pakkevekt
175 g
Tekniske detaljer
Samsvarssertifikat
RoHS
Emballasjeinnhold
Pakketype
Boks
Skruer inkludert
Ja
Antall skruer
4
Andre funksjoner
Monteringshullmønster (BxD)
105 x 105 mm
Opprinnelsesland
China
Logistikk data
Harmonisert system (HS)-kode
84733080
