Varenummer: 3247706

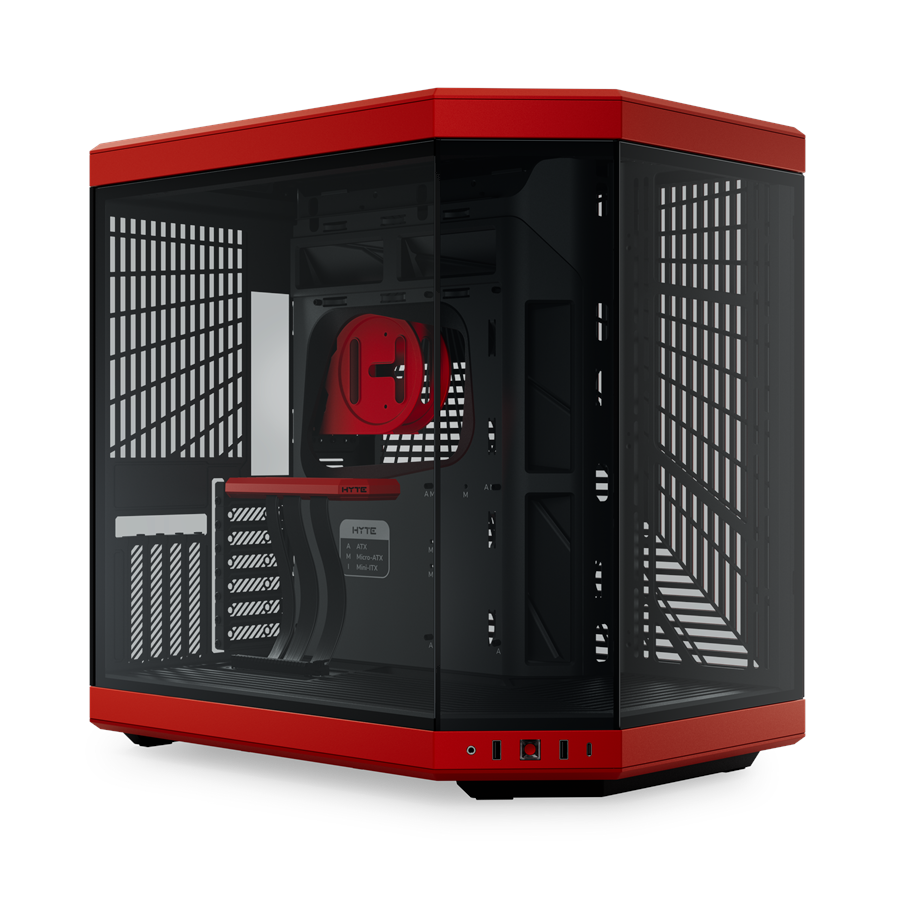

HYTE Y70 Red - Kabinett - Miditower - Rød

Dual Chamber Miditower, Extended ATX, uten strømforsyning - støtter ATX strømforsyning (opp til 235mm lang), front med2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C & lydforbindelser, 4 x 2.5" / 2 x 3.5" harddisk brønner, vannkjøling: støtter opp til 360mm radiator, CPU-kjølerklaring: 180 mm, GPU clearance 42 cm, vertikalt GPU-feste klart: maks 4 slots(ricer inkludert)PCI-E Gen 4.0), front panel tempered glass, side vindue: tempered glass, farge: rød / svart

Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.

Modern Aesthetic Case

Enhanced In Every Dimension
Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.

Mesmerizing 14.5" Integrated Touchscreen (Y70 Touch Infinite Only)

At a 688 x 2560 (2.5K) resolution and 60Hz refresh rate, this capacitive touchscreen delivers an insanely crisp and buttery smooth visual experience with 5-point multi-touch capability, unlocking a magnitude of possibilities and extensive screen customization powered by HYTE Nexus software. Our bigger, brighter, faster 2nd generation panel features a larger 14.5" display with a 33% closer dot pitch, 17% higher brightness, 25% greater contrast ratio, and 50% faster pixel response time for an even better user experience. All in a single package integrated into the case chassis structure, pioneering meaningful digital interaction with the best display ever in a case.

Spilt Milk Has Never Looked So Good (Milky Y70's Only)

Soft and creamy colors soak Y70 in a sweet & delicious fresh style. Strawberry Milk, Blueberry Milk, and Taro Milk flavors have arrived! Milky canopies are included for uninterrupted visual flow.

Massive 4 Slot Vertical Graphics

Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.

Included Luxury PCIE 4.0 Riser Cable

Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.

Ginormous Cooling Capacity

A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.

Unified Modern Aesthetic

With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.

Mesmerizing 14.1" Integrated Touchscreen (Y70 Touch Only)

At a resolution of 1100 x 3840 (4K) and refresh rate of 60Hz, this capacitive touchscreen delivers an insanely crisp and buttery smooth visual experience alongside 10-point multi-touch capability which unlocks a magnitude of possibilities with extensive screen customization powered by HYTE Nexus software. All in a single package integrated into the case chassis structure, pioneering meaningful digital interaction with the best display ever in a case.

Strømforsyning (PSU)

Kabinett-tilbehør

Produsent
Varenummer
3247706
Model
CS-HYTE-Y70-BR
Ean
1220000350564
Til produsentens hjemmeside
Formfaktor
Midi Tower
Modell/Type
PC
Produktfarge
Svart, Rød
Støttet systemdisk formfaktorer
ATX, EATX, ITX, Micro ATX, Mini-ATX
Antall 3.5" bays
2
Materiale
ABS, Stål, Herdet glass
Antall 2.5" bays
4
Antall utvidelsesspor
11
Utvidelsesspor i full høyde
4
Utvidelsesspor i halv høyde
7
Siderute
Ja
Herdet glasspanel/herdede glasspaneler
Ja
Av/på-knapp
Ja
Maksimal høyde CPU-kjøler
18 cm
Maksimal lengde grafikkort
42,2 cm
Maksimal lengde PSU
23,5 cm
Strømforsyning medfølger
Nei
Antall USB 2.0-porter
0
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter
2
Antall USB 3.2 Gen 2 (3.1 Gen 2)Type-C-porter
1
Antall USB 3.2 Gen 2 (3.1 Gen 2) Type-A-porter
0
Kombinert hodetelefon/mikrofonport
Ja
Innebygd skjerm
Nei
Antall sidevifter som støttes (maks.)
3
Sideviftediametere som støttes
120,140 mm
Antall bakvifter som støttes (maks.)
1
Bakre viftediametere som støttes
120,140 mm
Antall toppvifter som støttes (maks.)
3
Toppviftediametere som støttes
120,140 mm
Antall bunnvifter som støttes (maks.)
3
Støttede diametere på bunnvifter
120,140 mm
Sideradiatorstørrelser støttes
120,140,280,360 mm
Støttede radiatorstørrelser bak
120,140 mm
Støttede radiatorstørrelser øverst
120,140,280,360 mm
Støttede HDD-størrelser
3.5"
SSD-formfaktor
2.5"
Antall støttede HDDer
2
Bredde
320 mm
Dybde
470 mm
Høyde
470 mm
Kabler inkludert
PCIe

Design

Formfaktor
Midi Tower
Modell/Type
PC
Produktfarge
Svart, Rød
Støttet systemdisk formfaktorer
ATX, EATX, ITX, Micro ATX, Mini-ATX
Antall 3.5" bays
2
Materiale
ABS, Stål, Herdet glass
Antall 2.5" bays
4
Antall utvidelsesspor
11
Utvidelsesspor i full høyde
4
Utvidelsesspor i halv høyde
7
Siderute
Ja
Herdet glasspanel/herdede glasspaneler
Ja
Av/på-knapp
Ja
Maksimal høyde CPU-kjøler
18 cm
Maksimal lengde grafikkort
42,2 cm
Maksimal lengde PSU
23,5 cm

Power supply

Strømforsyning medfølger
Nei

Tilkoblingsevne

Antall USB 2.0-porter
0
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter
2
Antall USB 3.2 Gen 2 (3.1 Gen 2)Type-C-porter
1
Antall USB 3.2 Gen 2 (3.1 Gen 2) Type-A-porter
0
Kombinert hodetelefon/mikrofonport
Ja

Skjerm

Innebygd skjerm
Nei

Nedkjøling

Antall sidevifter som støttes (maks.)
3
Sideviftediametere som støttes
120,140 mm
Antall bakvifter som støttes (maks.)
1
Bakre viftediametere som støttes
120,140 mm
Antall toppvifter som støttes (maks.)
3
Toppviftediametere som støttes
120,140 mm
Antall bunnvifter som støttes (maks.)
3
Støttede diametere på bunnvifter
120,140 mm
Sideradiatorstørrelser støttes
120,140,280,360 mm
Støttede radiatorstørrelser bak
120,140 mm
Støttede radiatorstørrelser øverst
120,140,280,360 mm

Lagringsmedium

Støttede HDD-størrelser
3.5"
SSD-formfaktor
2.5"
Antall støttede HDDer
2

Vekt og dimensjoner

Bredde
320 mm
Dybde
470 mm
Høyde
470 mm

Datainnpakking

Kabler inkludert
PCIe

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
